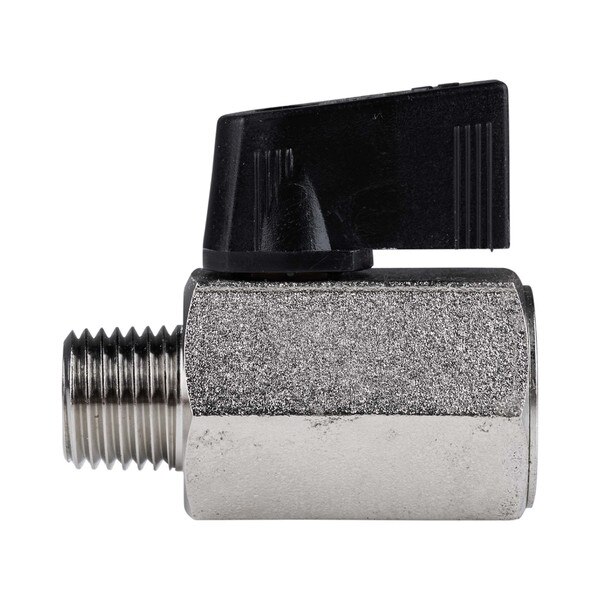

Midwest Control Mini Ball Valve (CMV-25) - 1/4" MNPT x FNPT
The 1/4" Mini Ball Valve, identified by Manufacturer Part Number (MPN) CMV-25, is a compact and robust component from Midwest Control. It is specifically designed for applications requiring gauge isolation on hydraulic and high-pressure pump stations. This valve features a 1/4" MNPT (Male National Pipe Taper) inlet and a 1/4" FNPT (Female National Pipe Taper) outlet.
Constructed with a one-piece nickel-plated brass (C3600) body and a chrome-plated brass ball, the valve ensures durability and corrosion resistance. The sealing mechanism utilizes PTFE ball seats and Viton® O-rings , which provide reliable sealing and allow the valve to be operated in either direction due to double ball seats. The valve comes with a polycarbonate wedge handle for operation. The CMV-25 is rated for 450 PSI Cold Working Pressure (CWP) and 150 WSP (Working Steam Pressure). It is also suitable for vacuum service up to 29.9" Hg. The valve can withstand a broad temperature range from -4°F to 370°F, making it suitable for various industrial fluids and conditions. Additionally, it has a blow-out proof stem for added safety.
This mini ball valve is panel-mountable and operates as a full port valve, minimizing pressure drop and maximizing flow. It meets MSS SP-110 Standards and is manufactured in an ISO Registered Factory. The product is also RoHS Compliant.
- Product Type: Mini Ball Valve
- Manufacturer Part Number (MPN): CMV-25
- Brand: Midwest Control
- Connection Size: ¼"
- Connection Type: 1/4" MNPT x 1/4" FNPT
- Operating Pressure: 450 PSI CWP, 150 WSP
- Vacuum Rating: Up to 29.9" Hg
- Temperature Range: -4°F to 370°F
- Port Type: Full Port
- Construction Material: One Piece Brass (C3600) Nickel-Plated Body, Chrome-Plated Brass Ball
- Seals: PTFE Ball Seats and Viton® O-Ring
- Stem: Blow Out Proof Stem
- Handle Type: Polycarbonate Wedge Handle
- Panel-Mountable: Yes
- Approvals/Standards: RoHS Compliant , Meets MSS SP-110 Standards , ISO Registered Factory
- Weight: 0.2 lbs
- CV (Flow Coefficient): 8.23
- Dimensions (Nominal from CMV-25 data):
- A (length): 0.31 in
- B (height of body): 0.89 in
- C (total length with handle/stem): 1.70 in
- D (handle width): 1.22 in
- E (handle height): 0.81 in
- S (stem height): 0.87 in
- Durable Construction: Features a nickel-plated brass body and chrome-plated brass ball for longevity and corrosion resistance.
- High-Pressure & Vacuum Rated: Suitable for applications up to 450 PSI CWP and vacuum service to 29.9" Hg.
- Wide Temperature Range: Operates effectively from -4°F to 370°F.
- Full Port Design: Maximizes flow and minimizes pressure drop.
- Bi-Directional Flow: Double ball seats allow operation in either direction.
- Enhanced Safety: Equipped with a blow-out proof stem.
- Easy Installation: Panel-mountable design for versatile integration.
- Certified Quality: Meets MSS SP-110 Standards and produced in an ISO Registered Factory.
