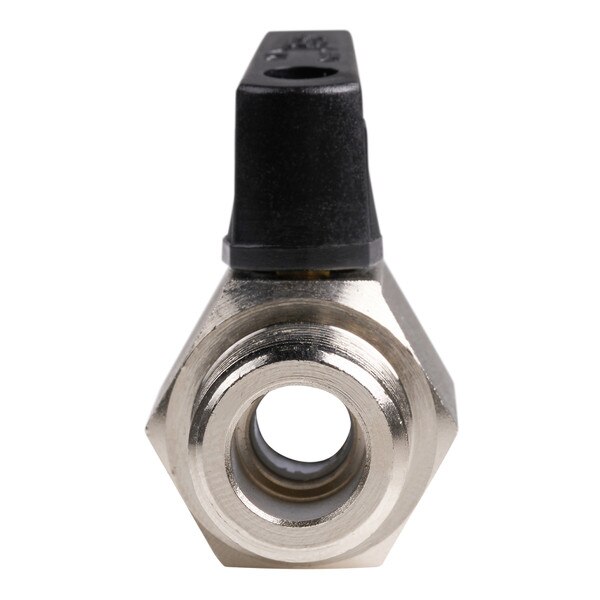

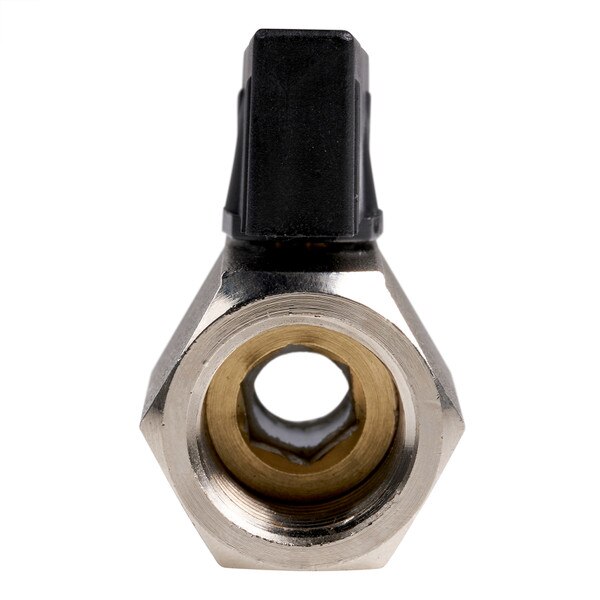

3/8" MNPT X 3/8" FNPT Mini Ball Valve
compact S35 series mini ball valve featuring 3/8" Male National Pipe Thread (MNPT) on one end and 3/8" Female National Pipe Thread (FNPT) on the other. The body is constructed from durable brass, and it features a chrome-plated brass ball for extended operational life. This valve is rated for pressures up to 450 PSI Water, Oil, Gas (WOG). The standard handle is made from black nylon, providing reliable operation within a temperature range of -4°F to +200°F. This mini ball valve, with its reduced port design for economical savings, is commonly used in car washes for equipment drains, spray and nozzle equipment control, and specifically with the Butech valve on the Maintenance Pod (E-POD-MAINT-A). Within the POD, this mini ball valve connects to the hose through an MJIC Elbow (P-WAT-2219). For higher temperature applications (up to +350°F), a metal handle option is available (verify availability). The seats are made from PTFE for reliable sealing, and the stem is also constructed from brass.
- Valve Type: Mini Ball Valve (S35 Series)
- Connection 1: 3/8" Male NPT (MNPT)
- Connection 2: 3/8" Female NPT (FNPT)
- Working Pressure: 450 PSI WOG
- Body Material: Brass
- Ball Material: Chrome Plated Brass
- Stem Material: Brass
- Seat Material: PTFE
- Handle Material: Black Nylon
- Handle Length: 0.885"
- Body Inner Diameter (Port): 0.314" (Reduced Port)
- Size: 3/8"
- Temperature Range (Nylon Handle): -4°F to +200°F
- Weight: 0.188 lbs.
- Applications: Equipment Drains, Spray/Nozzle Equipment, Maintenance Pod (Butech Valve)
- Compact brass mini ball valve for tight spaces
- 3/8" MNPT x 3/8" FNPT connections
- Rated for pressures up to 450 PSI WOG
- Chrome-plated brass ball for longer life
- Standard nylon wedge handle for temperatures -4°F to +200°F
- PTFE seats for reliable sealing
- Reduced port design for economical savings
