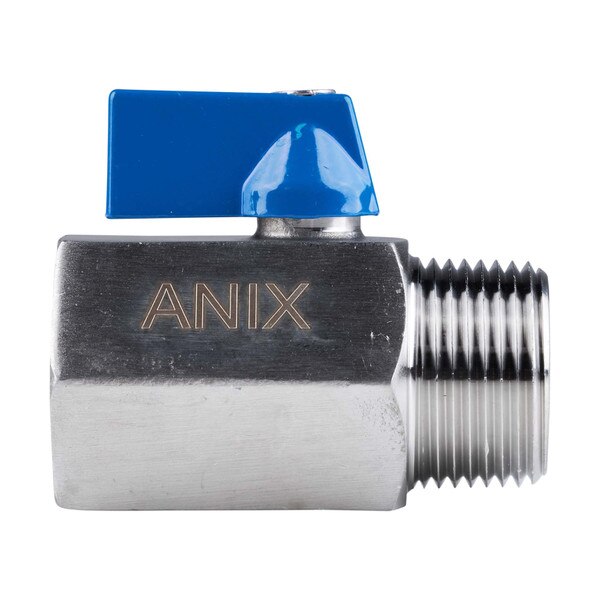

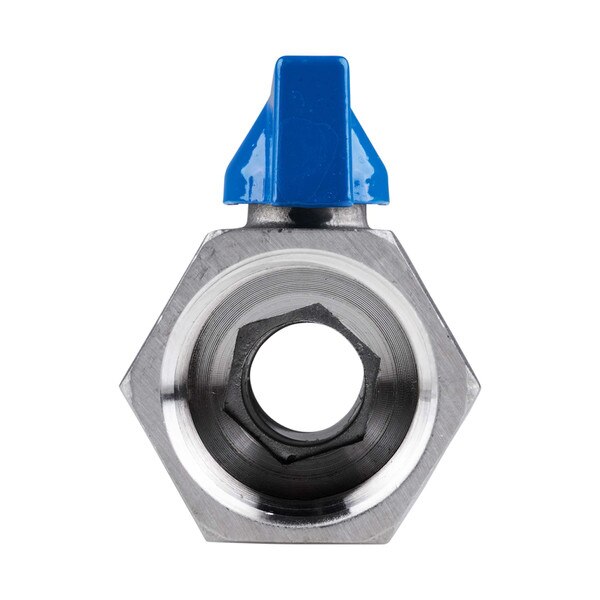

3/4" FNPT x 3/4" MNPT Stainless Steel Mini Ball Valve
The is a durable and compact 3/4" Stainless Steel Mini Ball Valve. This valve features a 3/4" FNPT (Female National Pipe Taper) connection on one end and a 3/4" MNPT (Male National Pipe Taper) connection on the other, allowing for versatile installation in fluid lines. It is constructed from 316 stainless steel, providing excellent corrosion resistance and making it suitable for a wide range of media, including water, chemicals, and other industrial fluids.
Designed with a reduced port, this valve offers efficient flow control in a compact size. It is rated for high-pressure applications, capable of handling 1000 PSI or PN67 (Pressure Nominal 67 bar). The sanitary design suggests its suitability for applications where cleanliness and material purity are important. For enhanced safety and reliability, the valve incorporates a blow-out proof stem, which prevents the stem from being ejected under pressure.
- Product Type: Mini Ball Valve
- Connection Size: 3/4" NPT
- Connection Type: 3/4" FNPT x 3/4" MNPT
- Material: 316 Stainless Steel
- Port Type: Reduced Port
- Pressure Rating: 1000 PSI / PN67
- Design Features: Sanitary Design, Blow-out Proof Stem
- Durable Construction: Made from 316 stainless steel for superior corrosion resistance.
- High-Pressure Rated: Capable of handling pressures up to 1000 PSI / PN67.
- Sanitary Design: Suitable for applications requiring high levels of cleanliness.
- Blow-Out Proof Stem: Enhances safety by preventing stem ejection under pressure.
- Reduced Port: Provides efficient flow control in a compact valve body.
- Versatile Connections: Features both Female and Male NPT ends for flexible installation.
