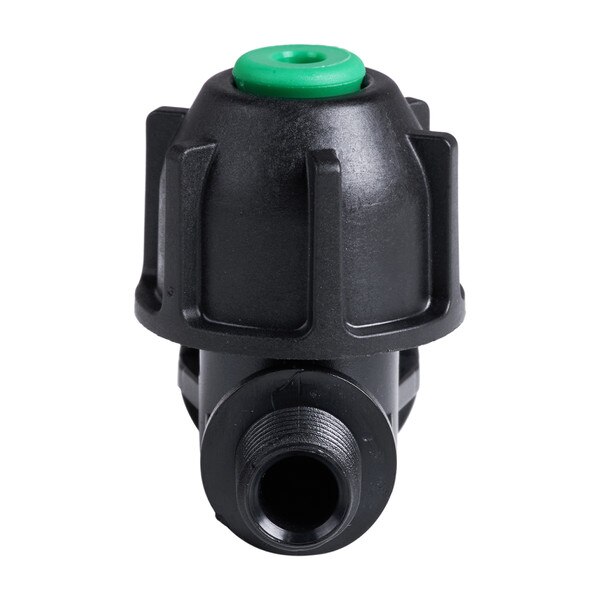

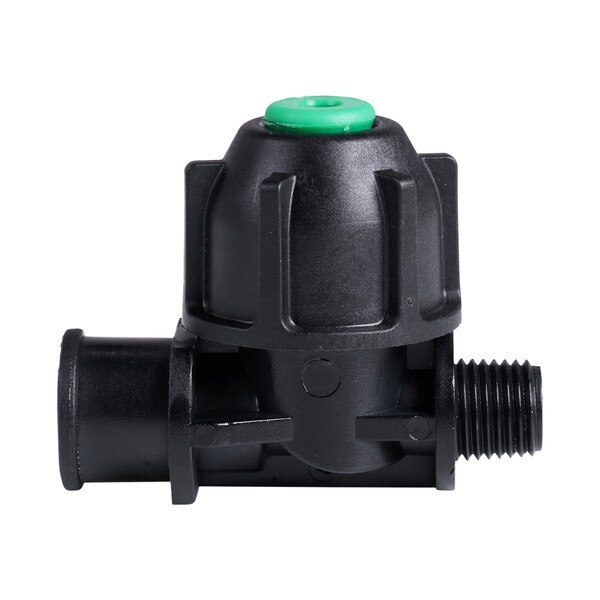

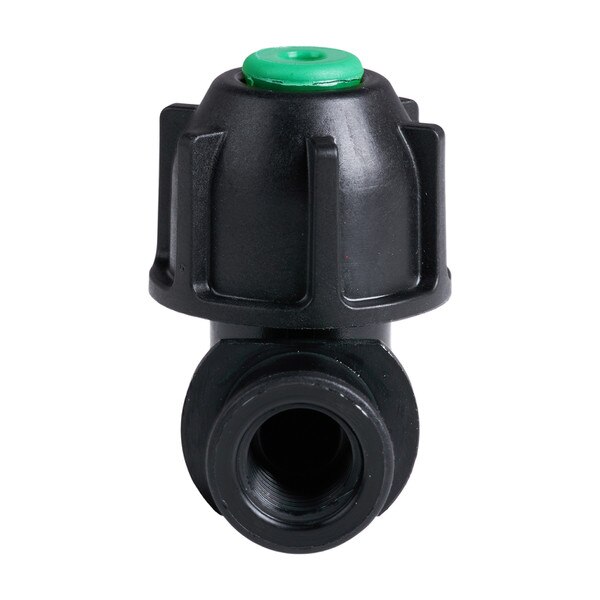

1/4" 4 PSI Drip-Free Arch/Tire Shine Diaphragm Check Valve

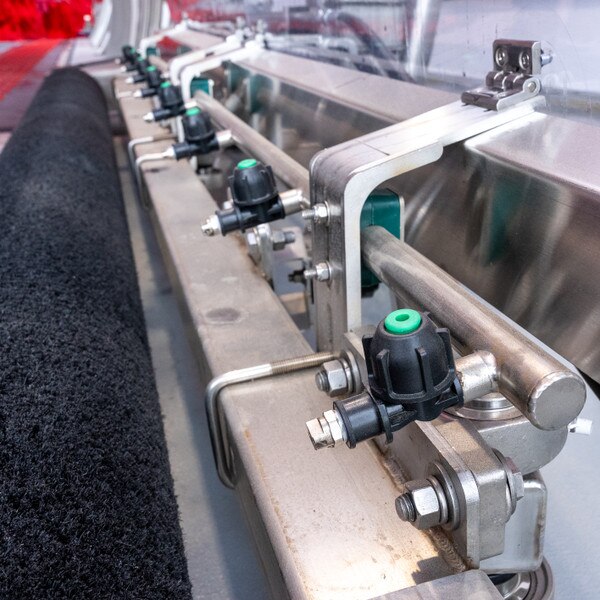

The ProFlo Diaphragm Check Valve is a vital component for maintaining a clean and efficient car wash operation. This high-quality check valve is designed to be used on a wide range of chemical and soap arches, including the Presoak, Spot Free Rinse, and Drying Agent arches, as well as the Tire Shine unit.

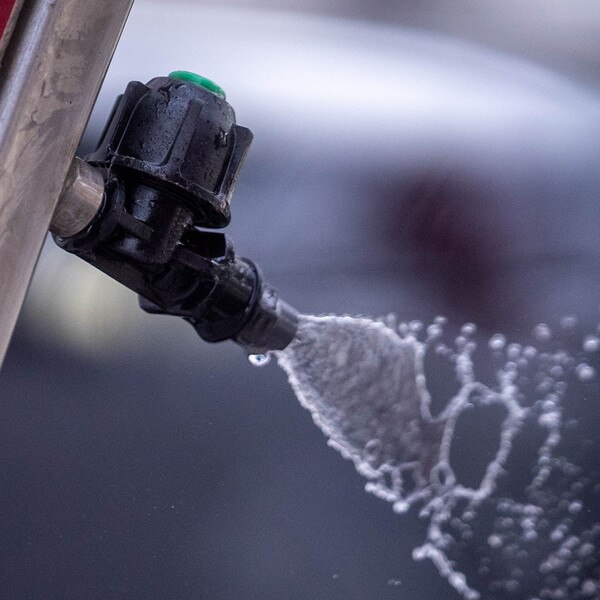

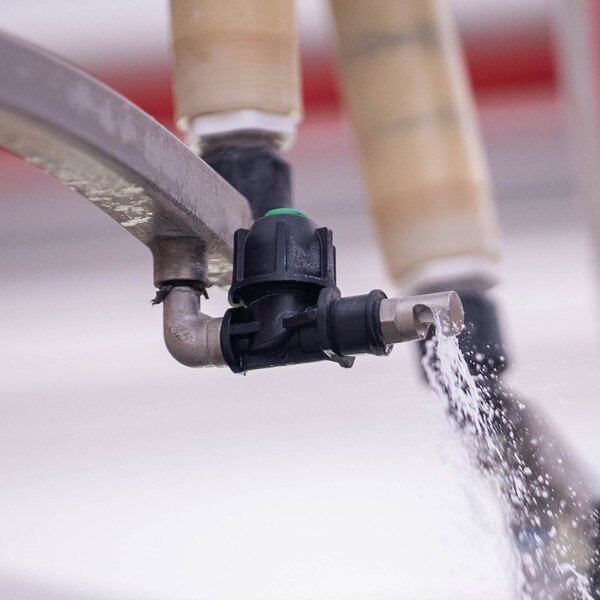

Its primary function is to prevent chemical or soap solutions from dripping out of the nozzles after the wash cycle has ended. The valve achieves this "drip-free" performance by utilizing a 4 PSI cracking pressure. This means the valve remains closed until the system pressure exceeds 4 PSI, effectively stopping any residual liquid from leaking out. This feature not only prevents unsightly spots and waste but also ensures that the precise amount of detergent is applied during the wash cycle. The valve is easily identified by its distinctive orange adjustment screw.

The valve's body is constructed from durable nylon, a material known for its excellent resistance to corrosion, impact, and temperature fluctuations. This makes it a perfect choice for the harsh, chemical-rich environment of a car wash. The valve features a 1/4" Male NPT connection on one end and a 1/4" Female NPT connection on the other, allowing a spray nozzle to be screwed directly into it for a seamless installation. The internal seal is made from Viton, a high-performance fluoroelastomer that offers superior chemical resistance and durability.
