Detergent/Maintenance POD Regulator

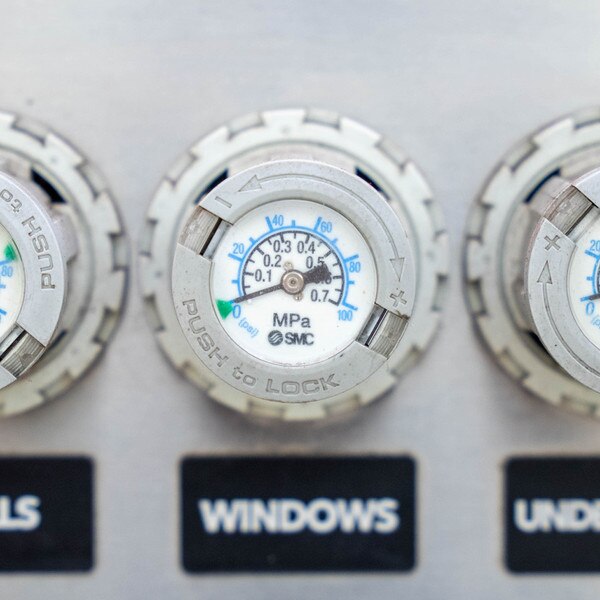

A modular style regulator with built-in pressure gauge, series ARG30 offers an optional, built-in backflow mechanism which enables reliable discharge of air pressure from outlet to inlet. The mounting angle of the pressure gauge is selectable depending on the piping direction, and with the anti-revolving mechanism, the pressure gauge will not be revolved even after the handle is operated.
- Body Size: 3/8"
- Port Size: 1/4"
- Mounting Angle: 90 Degrees
- Proof Pressure: 1.5 MPa
- Max Operating Pressure: 1.0 MPa
- Regulating Pressure Range: .05-.85 MPa
- Operating Temp. Range: 23F-140F
90 Day Warranty
*Please review our warranty policy here for additional details.
