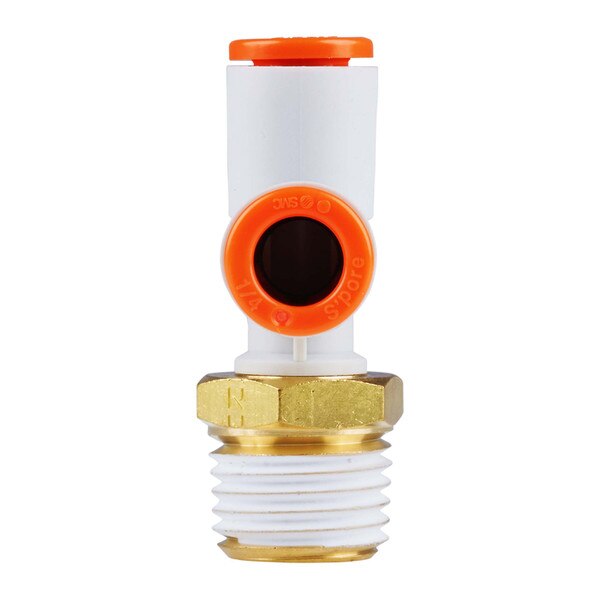

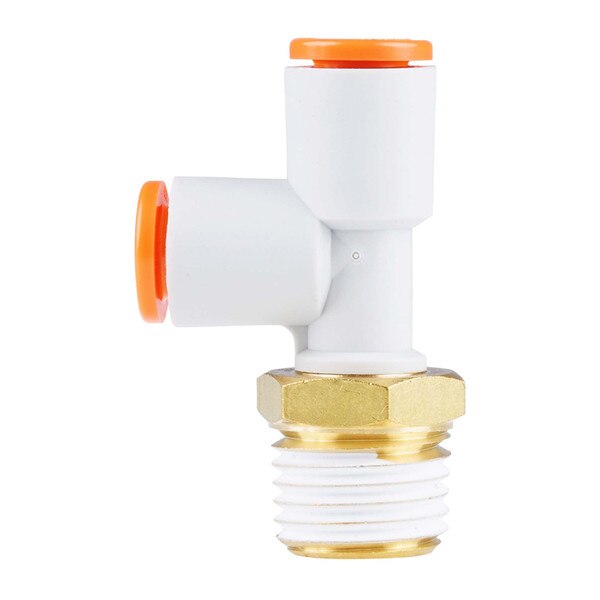

One-Touch Male Run Tee (1/4" Air Line, 1/4" MNPT)
The One-Touch Male Run Tee is a versatile and compact pneumatic fitting designed for efficient air line distribution. As part of the SMC KQ2 series, this tee allows for the convenient creation of a branch line off of a main air line.
The fitting features one-touch push-to-connect ports on the two run ends, which accept standard 1/4" O.D. nylon and polyurethane tubes. The built-in release collar simplifies the process of disconnecting the tubing without damaging it. The branch port is a 1/4" Male NPT thread with a swivel stud, which allows the body of the tee to rotate for easy and precise positioning during installation, especially in confined areas.
The KQ2 series is known for its reliability and wide pressure range, from a low vacuum up to a maximum operating pressure of 1 MPa (approx. 145 PSI). The fitting is lightweight yet durable, and its design ensures a secure, leak-proof connection for air and other inert gases. This product is not intended for use in potable water systems.
- Product Type: One-Touch Male Run Tee
- Manufacturer Part Number (MPN): KQ2Y07-35AS
- Manufacturer: SMC Corporation
- Connection 1 & 2: 1/4" Push-to-Connect Tube (Run)
- Connection 3: 1/4" Male NPT (Branch)
- Shape: Run Tee
- Body Material: Plastic
- Max. Pressure: 145 PSI (1 MPa)
- Operating Temp. Range: -5°C to 60°C (23°F to 140°F)
- Compatible Tubing: Nylon and Polyurethane
- Application: Air lines, low vacuum
- One-Touch Connections: Provides quick and easy assembly and disassembly of tubing.

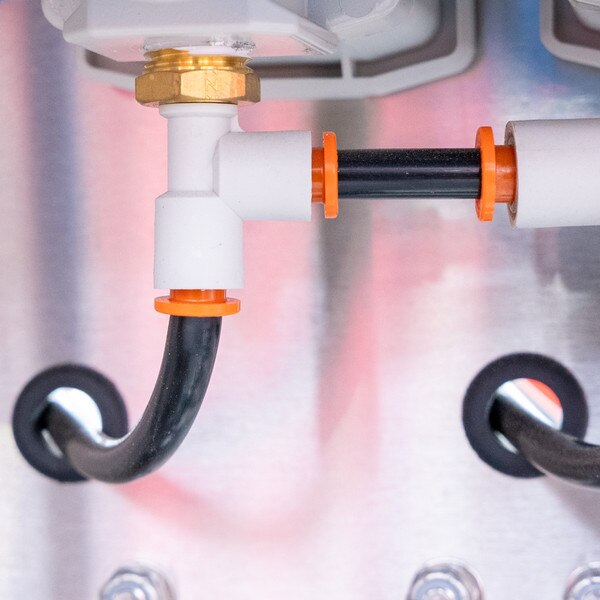

- Male Run Tee Configuration: Ideal for adding a branch line to an existing air line.
- Swivel Stud: Allows for 360-degree rotation of the body for flexible installation.
- Wide Pressure Range: Suitable for both vacuum and high-pressure pneumatic applications.
- Secure Fit: The release collar and chuck provide a strong, reliable hold without damaging the tubing.
