SMC 1/4" MNPT x Tube Quick Connect Swivel Elbow Air Fitting

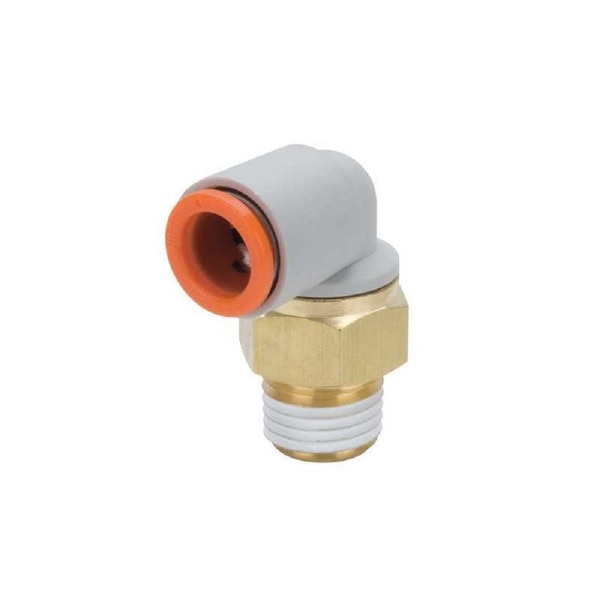

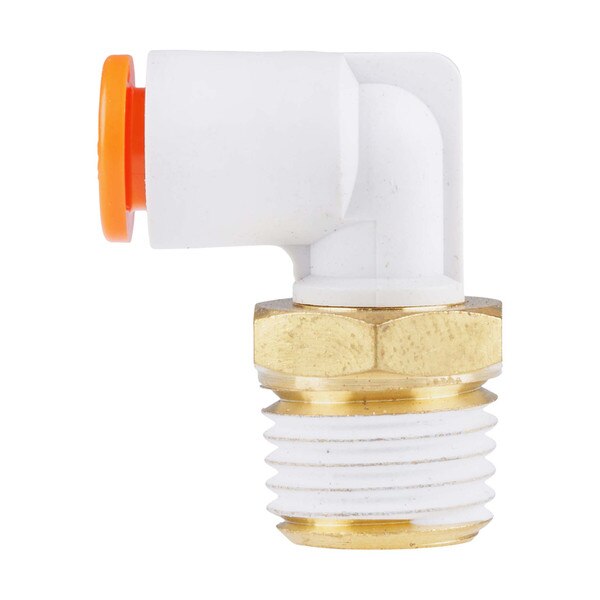

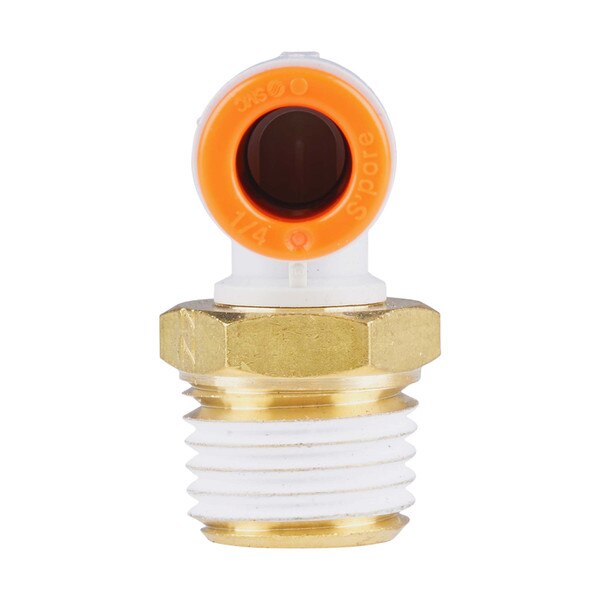

The Air Fitting, identified by Manufacturer Part Number (MPN) KQ2L07-35AS, is a high-quality SMC 1/4" Male NPT (MNPT) x 1/4" Tube 90 Degree Elbow Swivel quick connect fitting. This versatile fitting is designed for efficient and secure connections in pneumatic and hydraulic systems utilizing air or water as operating fluids.
Constructed from durable plastic, this fitting is capable of accepting both nylon and polyurethane tubes. Its intelligent design includes a swivel stud, which allows the body to rotate, significantly easing installation in confined or awkward spaces. A key feature is the release collar, which simplifies the removal of tubing without causing damage to the tube itself, by releasing both the chuck and collet.
The P-AIR-2109 is applicable for both vacuum and positive pressure applications, with an operating pressure range of -100 kPa to +1 MPa (up to a maximum vacuum pressure of 1.0 MPa). It has a burst pressure of 3 MPa. The fitting operates within an ambient temperature range of 23°F to 140°F. It meets ANSI and ASME standards. Its compact dimensions, with an overall diameter of 13.2 mm and overall length of 28 mm, further aid in tight installations.
- Product Type: Air Fitting / Quick Connect Fitting
- Manufacturer Part Number (MPN): KQ2L07-35AS
- Brand: SMC
- Fitting Shape: 90 Degree Elbow
- Port Size: 1/4" NPT (Male)
- Tube Size: 1/4"
- Connection Style: Push-In to NPT (Threaded)
- Material: Plastic
- Operating Fluid: Air, Water
- Accepts Tube Material: Nylon, Polyurethane (Urethane)
- Operating Pressure Range: -100 kPa to +1 MPa (equivalent to -14.5 PSI to +145 PSI approx.)
- Maximum Vacuum Pressure: 1.0 MPa
- Burst Pressure: 3 MPa
- Operating Temperature Range: 23°F to 140°F (-5°C to 60°C approx.)
- Overall Diameter: 13.2 mm
- Overall Length: 28 mm
- Hex Size: 14.29 mm
- Standards Met: ANSI, ASME
- Quick Connect Design: Enables fast and easy tube insertion and removal without tools.
- 90-Degree Elbow with Swivel: Facilitates installation in tight or angled spaces by allowing body rotation.
- Damage-Free Tube Removal: Release collar system ensures tubing can be removed without deformation or damage.
- Versatile Compatibility: Suitable for both nylon and polyurethane tubing.
- Wide Pressure Application: Works effectively in both vacuum and positive pressure systems.
- Durable Construction: Made from plastic, designed for reliable performance with air and water.
