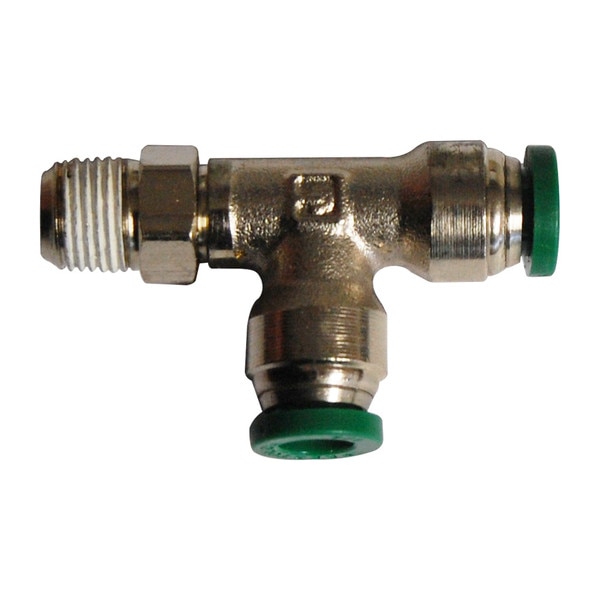

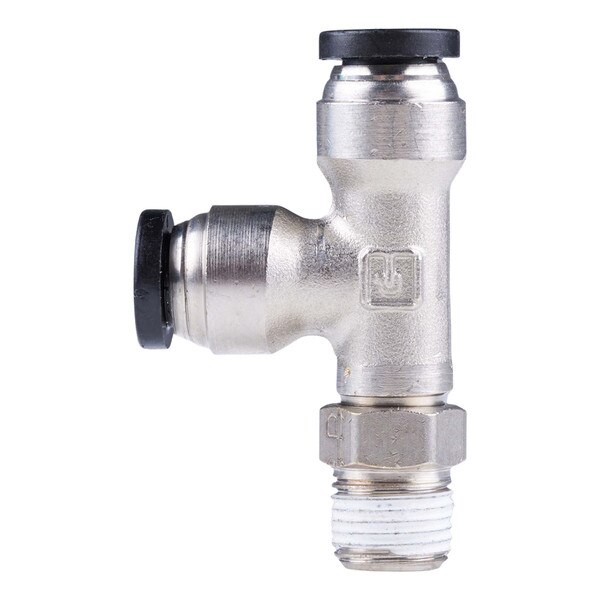

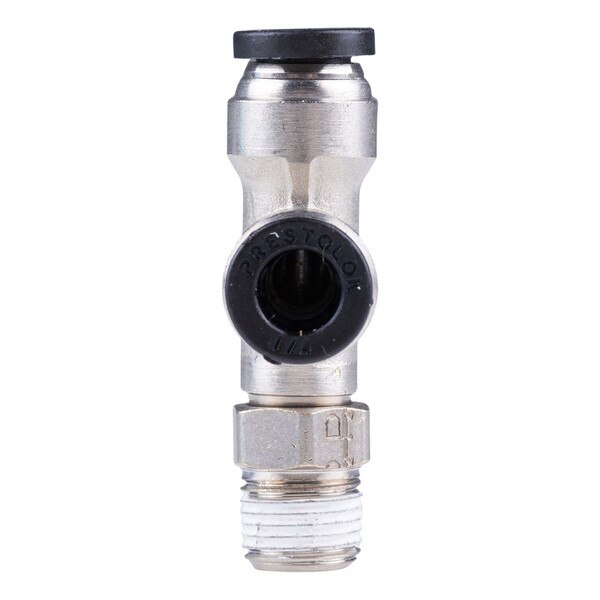

1/4" x 1/8" Zinc-Plated Male Run Tee Swivel
Low-Pressure Male Run Tee Swivel fitting. Constructed from Nickel-Plated Brass and features Push-to-Connect technology on the tube ports (1/4") and a 1/8" Male NPTF swivel connection
As the world's leader in push-to-connect fitting technology, Parker's Prestolok PLP metal fittings provide a simple, secure, and rapid way to create fluid distribution networks. This Male Run Tee Swivel is designed for low-pressure systems, including use on the Tommy Car Wash Systems POD system.
The push-to-connect design drastically reduces assembly time compared to compression fittings. To connect, simply push the tubing into the fitting until it bottoms out. To release, press the polyacetal release button and pull the tubing out.
Key features and benefits include:
- Nickel-Plated Brass Body: Provides excellent corrosion resistance and durability in industrial and automotive applications.
- Tube-to-Pipe Configuration: Connects two 1/4 inch tubes (Push-to-Connect) in-line while providing a 1/8 inch Male NPTF connection at the center for instrumentation or branching.
- Swivel Feature: The male threaded end swivels, allowing for easy and precise positioning during assembly, even in tight spaces.Pre-Applied Sealant: All male threads include a pre-applied white acrylic sealant, eliminating the need for PTFE tape and preventing system contamination.
- High-Quality Sealing: Features a Stainless Steel gripping ring and a Nitrile seal for reliable, leak-free performance.
- Pressure and Temperature: Maximum operating pressure of 300 psi (20.6 bar) and suitable for temperatures between 0°F and 200°F.
- Brand: Parker (Prestolok PLP Metal)
- Product Type: Male Run Tee Swivel
- Configuration: Tube to Pipe Tee
- Connection 1 & 3 (Tube): 1/4 in Push-to-Connect
- Connection 2 (Pipe): 1/8 in Male NPTF (MNPTF)
- Body Material: Nickel-Plated Brass
- Gripping Ring Material: Stainless Steel
- Seal Material: Nitrile
- Hex Size: 7/16 inch
- Maximum Operating Pressure: 300 psi (20.6 bar)
- Maximum Operating Temperature: 200°F (93.3°C)
- Application: Low Pressure, Used on POD system, Air Lines, Oil Lines, Vacuum
- 1/4" Tube x 1/8" Pipe: Common size combination for fluid networks.
- Push-to-Connect: Fast, simple, tool-free tube assembly.
- Nickel-Plated Brass: Excellent corrosion resistance.
- Swivel Design: Allows for easy and precise positioning.
