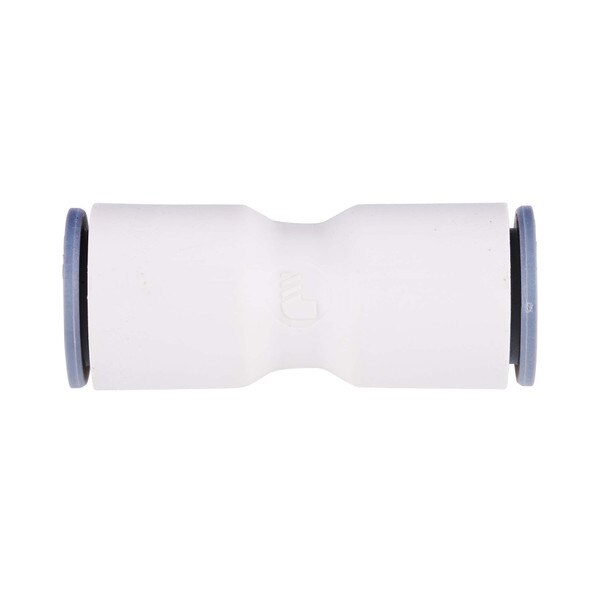

1/2" Straight Union Push-To-Connect Fitting (Bio-Polyamide, 230 PSI)
The 1/2" Quick Connect Union is a premium LIQUIfit straight union push-to-connect fitting designed for seamless and reliable connections in water and beverage applications. This eco-designed connector is engineered to join two 1/2" O.D. tubes securely, making it an ideal choice for systems requiring robust, contamination-free fluid transfer.
Constructed from a durable bio-based polyamide material, coupled with an EPDM D-Seal and a Stainless Steel Gripping Ring, this white fitting guarantees exceptional environmental protection and a leak-proof seal. Its innovative design promotes full flow within the system, eliminating the need for a locking clip and ensuring no fluid contamination occurs.
Operates effectively under a maximum pressure of 230 PSI and across a temperature range of 35°F to 200°F. It measures 2-1/4" in overall length and boasts high chemical resistance, ensuring longevity and performance in various conditions. This fitting adheres to strict safety and quality standards, including FDA, NSF 51 & 61, and AB1953 Low Lead, certifying its suitability for potable water systems.
It is widely used in RO (Reverse Osmosis) systems, drinking dispensers, water filtration systems, and other general water and potable liquid applications. These fittings are conveniently sold in quantities of 10.
- Product Type: Straight Union Push-To-Connect Fitting
- Fitting Shape: Union
- Connection Type: Tube x Tube
- Tube Size Compatibility: 1/2" O.D. on both sides
- Body Material: Bio-based Polyamide
- Seal Material: EPDM D-Seal
- Gripping Ring Material: Stainless Steel
- Color: White
- Max Pressure: 230 PSI
- Temperature Range: 35°F - 200°FOverall Length: 2-¼"
- Standards: FDA, NSF 51 & 61, AB1953 Low Lead
- Chemical Resistance: High
- Selling Unit: Quantities of 10
- Eco-Designed LIQUIfit Series: Innovative and environmentally conscious construction.
- Push-To-Connect Technology: Ensures fast, tool-free, and secure tube connections.
- Guaranteed Leak-Proof Seal: Provides maximum reliability and prevents fluid loss.
- Full Flow Design: Maintains unrestricted fluid passage without contamination.
- Potable Water Certified: Meets FDA, NSF 51 & 61, and AB1953 Low Lead standards.
- Durable Materials: Bio-based polyamide body with stainless steel and EPDM components for longevity.
- High Performance: Rated for up to 230 PSI and temperatures from 35°F to 200°F.
- Versatile Applications: Ideal for water, RO systems, and drinking dispensers.
