Hydraflex Quick Connect Chemical Injectors (3/8" MPT, PC2 Composite, Various GPM)

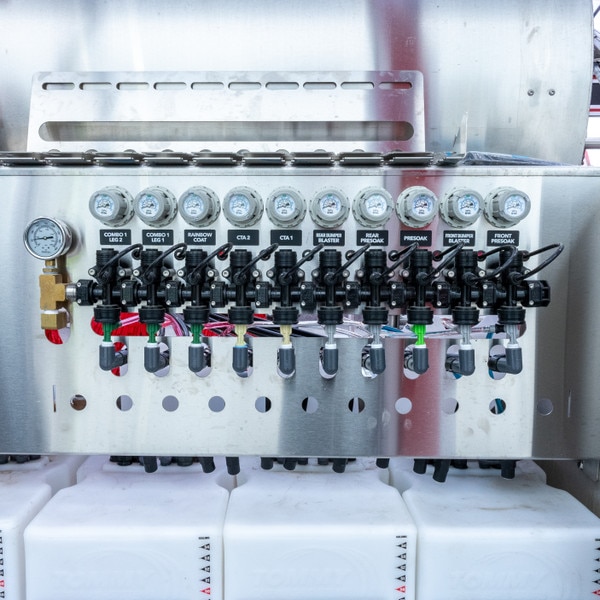

The Chemflex Hydraflex Quick Connect Chemical Injectors represent a comprehensive line of highly durable and chemical-resistant dosing solutions for car wash systems. These injectors are specifically engineered for integration into Detergent POD's and ProFlo Panels, where precise chemical proportioning is critical.
At the core of their design is an all-composite construction, making them exceptionally resistant to the most aggressive and common car wash chemicals. This material, combined with an exclusive XFC O-ring that minimizes swelling, ensures unmatched chemical compatibility and longevity, positioning them as some of the most chemical-resistant injectors available on the market.

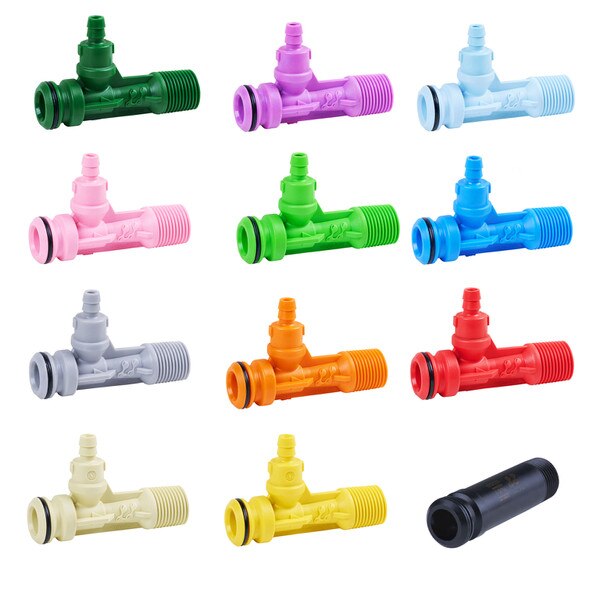

Each injector in this series features a 3/8" Male NPT inlet and a 3/8" PC2 Quick Connect outlet, offering straightforward installation and maintenance. Individual units are color-coded according to their specific water flow rate. This color-coding, when combined with matching metering tips, allows for precise and accurate chemical mix ratios for various applications.
These injectors are capable of handling pressures up to 250 PSI (17 bar) and operate effectively within a temperature range of 40°F to 140°F. Their robust internal components include a Barb Fitting, XFC O-Ring, Teflon Check Ball, Hastelloy Spring, and a composite Nozzle and Body, all contributing to reliable performance in demanding car wash environments. They are designed for hand tightening only with a maximum wrench torque of 30 in-lbs to prevent overtightening damage.

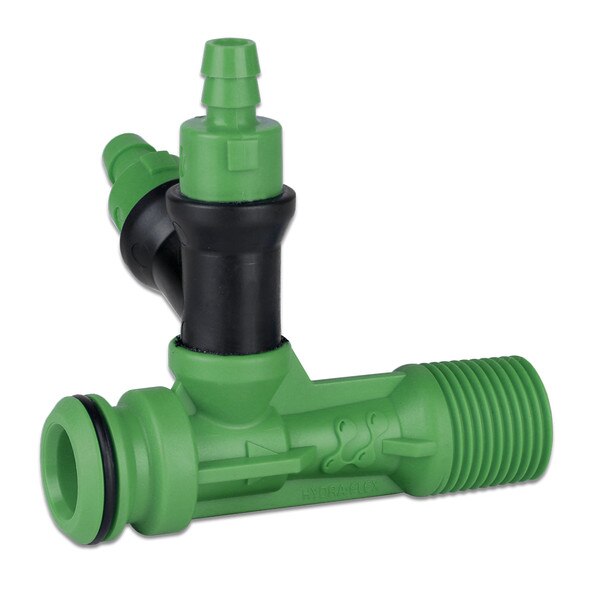

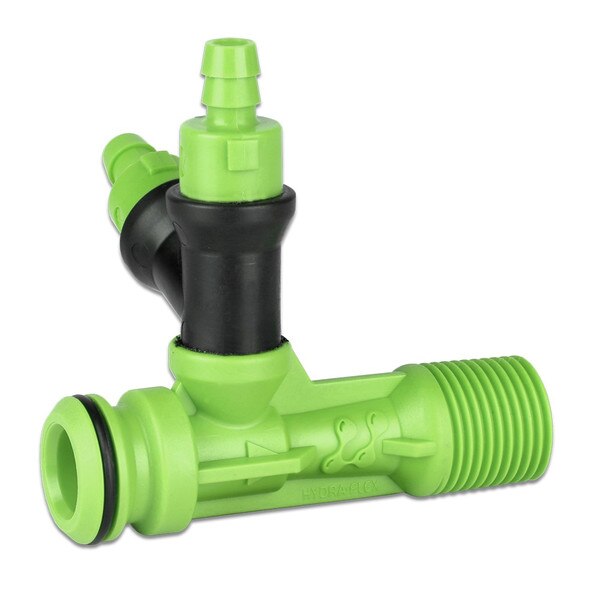

Wide array of flow rates to suit diverse needs, available in both single and dual hose barb configurations:
- Single Injector Flow Rates: 0.5 GPM, 0.75 GPM, 1 GPM, 1.4 GPM, 2.1 GPM, 2.3 GPM, 3 GPM, 3.2 GPM, 3.75 GPM, 4.5 GPM, 5.5 GPM, and 8 GPM.
- Dual Injector Flow Rates: 1 GPM, 1.4 GPM, 2.1 GPM, 2.3 GPM, 3.2 GPM, and 5.5 GPM.
- Product Type: Chemical Injectors
- Application: Detergent POD's, ProFlo Panels
- End 1 Connection: 3/8" Male NPT
- End 2 Connection: 3/8" Quick Connect
- Connection Type: PC2 Quick Connect, All Composite
- Flow Rate (Single Injectors): 0.5, 0.75, 1, 1.4, 2.1, 2.3, 3, 3.2, 3.75, 4.5, 5.5, 8 GPM
- Flow Rate (Dual Injectors): 1, 1.4, 2.1, 2.3, 3.2, 5.5 GPM
- Flow Orifice: Varies (specific to GPM)
- Maximum Pressure: Up to 250 PSI (17 bar)
- Temperature Range: 40°F - 140°F (4°C - 60°C)
- Maximum Wrench Torque: 30 in-lbs (hand tighten only)
- Material: Composite
- Hose Barb Configuration: Available in Single or Dual
- Internal Construction: Barb Fitting, XFC O-Ring, Teflon Check Ball, Hastelloy Spring, Composite Nozzle and Body
- Ultimate Chemical Resistance: All-composite construction and XFC O-ring withstand the harshest car wash chemicals.
- Versatile Flow Rates: Available in a wide range of single and dual GPM options for various applications.
- Precise Proportioning: Color-coded units combine with metering tips for accurate chemical mix ratios.
- Durable & Corrosion-Resistant: Made with advanced composite materials for long lifespan.
- Easy Installation: Features 3/8" Male NPT and 3/8" Quick Connect for simple setup.
- High Performance: Operates reliably up to 250 PSI within a broad temperature range.
