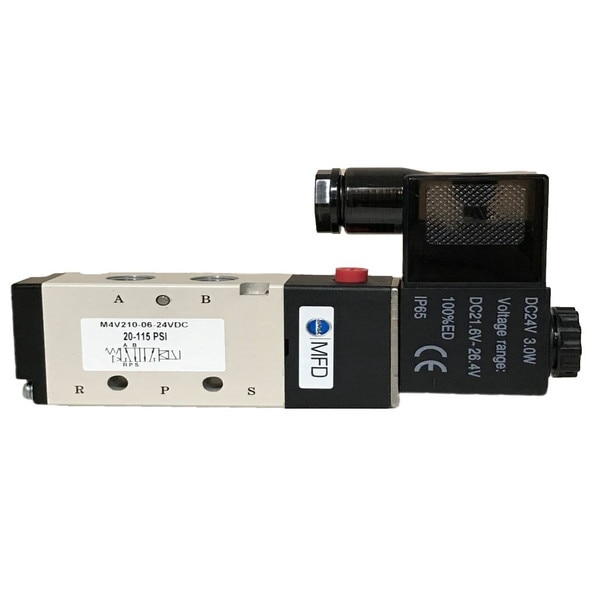

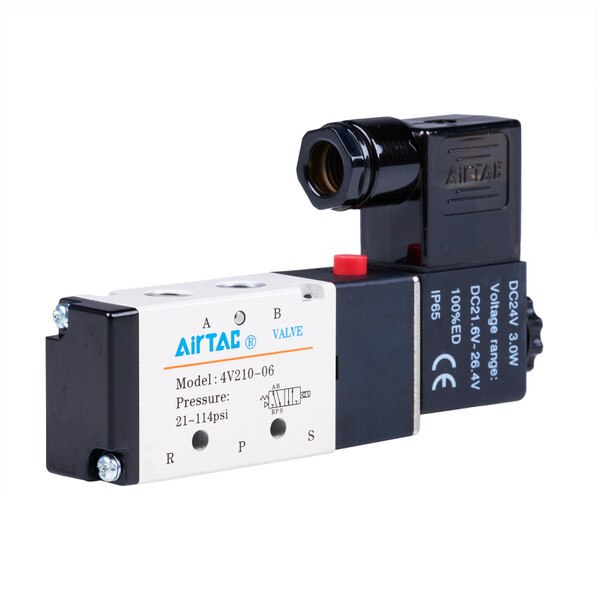

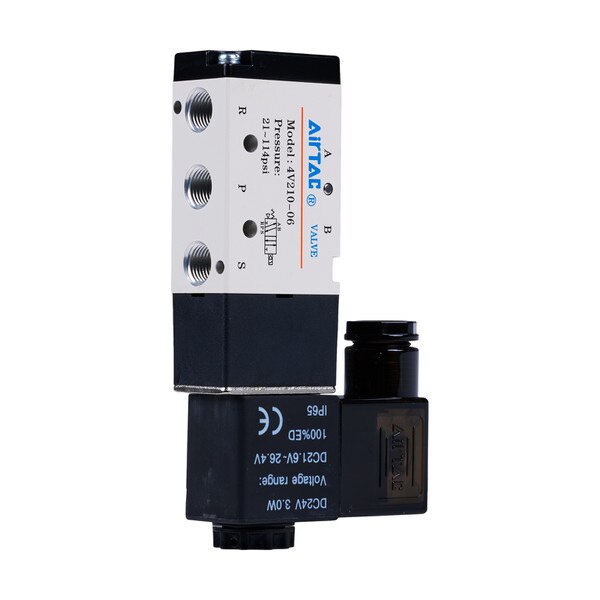

M4V210-06-24VDC: 24VDC 4-Way 1/8" NPT Air Solenoid Valve, Internally Piloted (DIN Connector)
The M4V210-06-24VDC Air Solenoid Valve Assembly is a high-performance, internally piloted, single solenoid valve designed for precise pneumatic control in various industrial applications, particularly within POD systems. This 4-way valve operates in a 2-position, normally closed, spring return configuration, ensuring reliable and consistent operation. Its stackable design offers exceptional versatility, allowing it to be used as an individual valve or easily assembled onto a manifold to share supply air, which significantly simplifies piping and installation in complex systems.
Constructed with a durable aluminum alloy body, this valve is built for longevity and performance. It is part of the M4V Series of Valves (200 series model), known for their reliability. The valve features 5 ports with 1/8" NPT (National Pipe Taper) port sizes, ensuring broad compatibility with standard pneumatic fittings. It is equipped with an 11 MM DIN connector for secure electrical connections and has a maximum operating frequency of 5 cycles/second.
Operating on 24 VDC, the M4V210-06-24VDC has a power consumption of 3.0W DC (or 3.50VA AC). It handles a pressure range of 20-115 PSI with a proof pressure of 215 PSI, capable of managing various pneumatic system demands. The valve's flow rate is 0.78 CV, ensuring efficient air movement. It boasts an impressive IP65 protection rating, making it dust-tight and resistant to low-pressure water jets, and is also explosion-proof with Class B Insulation, ensuring safe operation in hazardous environments. This robust valve is designed to perform reliably across a wide temperature range from -4°F to 158°F (-20°C to 70°C).
- MPN: M4V210-06-24VDC
- Product Type: Air Solenoid Valve Assembly
- Series: M4V Series (200 Series Model)
- Valve Type: Internally Piloted, Single Solenoid
- Function: 4-Way, 2-Position, Normally Closed, Spring Return
- Ports: 5 Ports
- Port Size: 1/8" NPT
- Voltage: 24 VDC
- Power Consumption: 3.0W DC / 3.50VA AC
- Connector Type: 11 MM DIN
- Max Frequency: 5 cycles/sec
- Pressure Range: 20-115 PSI
- Proof Pressure: 215 PSI
- Temperature Range: -4°F to 158°F (-20°C to 70°C)
- Flow Rate (Cv): 0.78
- Body Material: Aluminum Alloy
- Protection: IP65
- Safety Features: Explosion Proof, Class B Insulation
- Mounting: Stackable (for manifold or individual applications)
- Application: POD systems, general pneumatic control
- Versatile 4-Way Operation: Provides precise control for pneumatic applications.
- Stackable Design: Allows for easy manifold assembly, simplifying piping and installation.
- Durable Aluminum Alloy Body: Ensures long-lasting performance and corrosion resistance.
- IP65 & Explosion Proof: Suitable for use in demanding and potentially hazardous environments.
- Wide Pressure & Temperature Range: Reliable operation across various conditions.
- Efficient Flow: 0.78 Cv rating for effective air movement.
- DIN Connector: Facilitates secure and standardized electrical connections.
- Internally Piloted: Reliable and consistent solenoid operation.
