TeSys LC1D25BL Non-Reversing Contactor (24VDC, 25A, 3-Pole, Low Consumption)
The TeSys Deca Non-Reversing Contactor (MPN: LC1D25BL) is a high-performance, energy-efficient, and highly reliable electrical component crucial for controlling motors and resistive loads in various industrial applications. It is particularly well-suited for use in car wash tunnels for critical systems such as Conveyor Backup Starters, Guardian 80 Function Controllers, and other backroom control applications.
This 3-pole contactor features a low-consumption 24VDC coil, making it an energy-efficient choice for DC control circuits. It is rated for a substantial 25 Amperes (AC-3/AC-3e) for motor control and 40 Amperes (AC-1) for resistive loads, at operational voltages up to 690V AC. It can efficiently handle motor power up to 20 HP at 575/600V AC (3-phase). The unit includes 3 Normally Open (NO) power poles and essential built-in auxiliary contacts (1 NO + 1 NC), which are mechanically linked and mirror contacts, providing robust signaling and interlocking capabilities for complex control schemes.
The LC1D25BL incorporates box clamp (screw clamp) terminals for secure and versatile wiring connections, ensuring IP20 finger-safe protection. Its compact design (3.3" H x 1.8" W x 4.0" D) and flexible mounting options (DIN rail or direct panel mounting) facilitate easy integration into various control panels. Engineered for extreme durability, it boasts an impressive mechanical durability of 30 million cycles and electrical durability of up to 1.65 million cycles (for 25A AC-3/AC-3e), ensuring a long service life. The contactor operates reliably in a wide temperature range of 23°F to 140°F (-5°C to 60°C), with permissible ambient air temperatures up to 158°F (70°C) with derating. As a Green Premium product, it adheres to stringent environmental standards and is globally certified (UL, CSA, IEC, etc.), making it a dependable and environmentally conscious choice for modern control systems.
- Product Type: Non-Reversing Contactor
- Manufacturer Part Number (MPN): LC1D25BL
- Brand/Series: TeSys Deca (Schneider Electric)
- Poles Description: 3P (3 NO Power Pole Contacts)
- Contactor Application: Motor control, Resistive load
- Utilisation Category: AC-1, AC-3, AC-3e, AC-4Control Circuit Voltage (Uc): 24 V DC (Low Consumption)
- Rated Operational Current (Ie):
- 25 A (at <140 °F (60 °C)) at <= 440 V AC (AC-3, AC-3e power circuit)
- 40 A (at <140 °F (60 °C)) at <= 440 V AC (AC-1 power circuit)
- Rated Operational Voltage (Ue):
- Power circuit <= 690 V AC 25...400 Hz
- Power circuit <= 300 V DC
- Horsepower Rating (UL / CSA):
- 2 hp at 115 V AC 50/60 Hz (1 phase)
- 3 hp at 230/240 V AC 50/60 Hz (1 phase)
- 7.5 hp at 200/208 V AC 50/60 Hz (3 phase)
- 7.5 hp at 230/240 V AC 50/60 Hz (3 phase)
- 15 hp at 460/480 V AC 50/60 Hz (3 phase)
- 20 hp at 575/600 V AC 50/60 Hz (3 phase)
- Motor Power (kW, AC):
- 5.5 kW at 220...230 V AC 50/60 Hz (AC-3, AC-3e)
- 11 kW at 380...400 V AC 50/60 Hz (AC-3, AC-3e)
- 11 kW at 415...440 V AC 50/60 Hz (AC-3, AC-3e)
- 15 kW at 500 V AC 50/60 Hz (AC-3, AC-3e)
- 15 kW at 660...690 V AC 50/60 Hz (AC-3, AC-3e)
- 5.5 kW at 400 V AC 50/60 Hz (AC-4)
- Auxiliary Contact Composition: 1 NO + 1 NC (Mechanically linked and Mirror contact)
- Terminal Type: Screw Clamp Terminals (Box Clamp)
- Rated Insulation Voltage (Ui):
- Power circuit 690 V IEC 60947-4-1; 600 V CSA; 600 V UL
- Signalling circuit 690 V IEC 60947-1; 600 V CSA; 600 V UL
- Rated Impulse Withstand Voltage (Uimp): 6 kV IEC 60947
- Frequency: 50/60 Hz
- Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)
- Permissible Ambient Air Temp. around device: -40°F to 140°F (-40°C to 60°C), with derating up to 158°F (70°C)
- Storage Temperature Range: Not explicitly provided in "Specifications Tab Content" but in datasheet: -40°F to 176°F (-40°C to 80°C)
- Dimensions (H x W x D): 3.3" x 1.8" x 4.0" (85 mm x 45 mm x 101 mm)
- Net Weight: 1.17 lb (0.53 kg)
- Package Weight: 20.776 oz (589 g) for Unit Type of Package 1

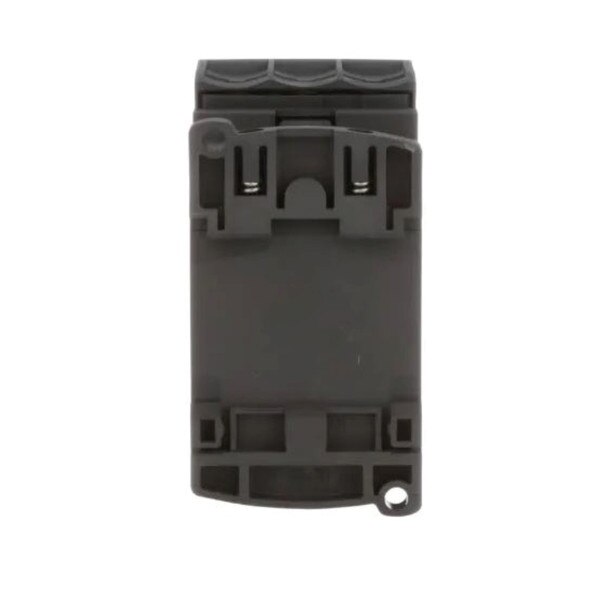

- Mounting Support: Plate, Rail (DIN Rail Mounted or Panel Mounted)
- Mechanical Durability: 30 Mcycles
- Electrical Durability:
- 1.65 Mcycles (25 A AC-3/AC-3e <= 440 V)
- 1.4 Mcycles (40 A AC-1 <= 440 V)
- IP Degree of Protection: IP20 front face (IEC 60529)
- Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, etc.
- Product Certifications: UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
- Sustainable Offer Status: Green Premium Product, EU RoHS Compliant, PVC free
- Non-Reversing Operation: Simple and direct control for unidirectional motor applications.
- Low Consumption 24VDC Coil: Energy-efficient operation for DC control systems.
- High Current and Horsepower Range: Suitable for robust motor control and resistive load applications up to 25A AC-3/AC-3e and 20HP.
- Built-in Auxiliary Contacts: Includes 1 NO and 1 NC contact for flexible control circuit design and signaling.
- Box Clamp Terminals: Provides secure and efficient wiring connections with IP20 finger-safe protection.
- Flexible Mounting: Supports both DIN rail and panel mounting for versatile installation.
- Extreme Durability: Offers exceptional mechanical (30 Mcycles) and electrical (1.65 Mcycles for AC-3/AC-3e) life for reliable long-term performance.
- Compact Design: Space-saving dimensions for efficient panel integration.
- Global Compliance: Certified by major international standards (UL, CSA, IEC, etc.) for broad applicability and safety.
18 Month Warranty
