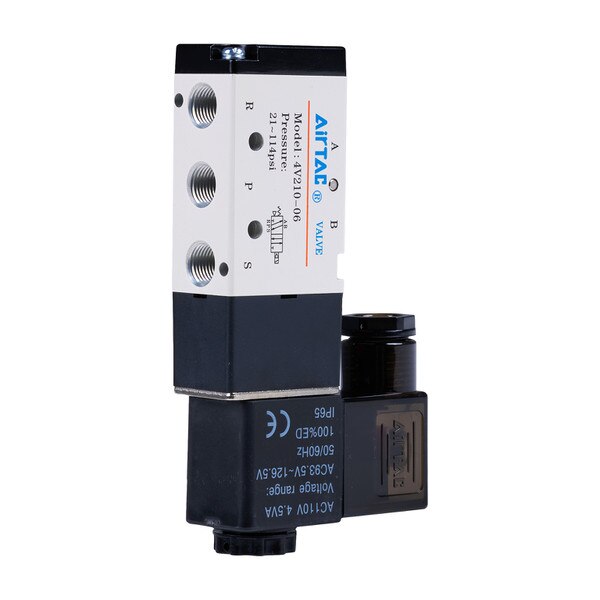

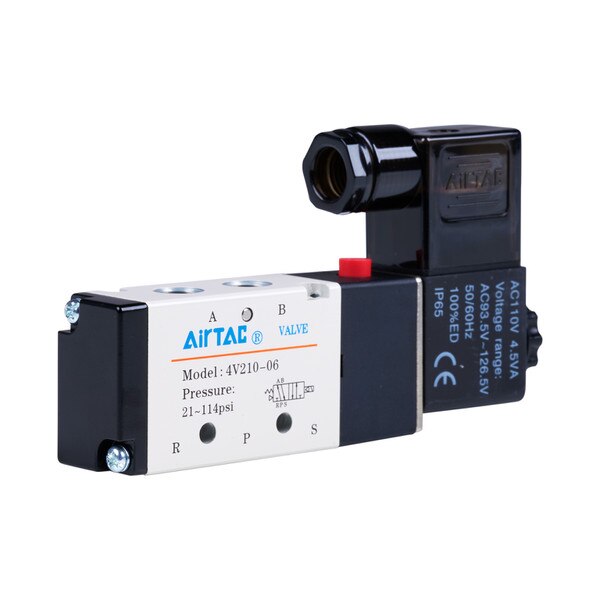

M4V210-06-110VAC: 120VAC 4-Way 1/8" NPT Air Solenoid Valve
The P-AIR-2159 Air Solenoid Valve (MPN: M4V210-06-110VAC) is a high-performance component specifically designed for critical control applications within car wash tunnels. These M4V-Series valves are primarily used in the PODs to precisely control the air flow for detergents, ensuring optimal performance and chemical delivery. They feature single solenoid operation and are internally piloted, allowing for high flow rates while maintaining lower power consumption.
This compact valve line is highly versatile, perfect for both inline or manifold applications when paired with MFD M-Series manifolds, which simplifies piping. Operating on 120 VAC with a power consumption of 3.50VA AC (or 3.0W DC), it supports a maximum frequency of 5 cycles/second. The valve is a 4-way, 2-position design with 5 ports and 1/8" NPT port sizes, ensuring broad compatibility.
Constructed with a durable aluminum alloy body, the valve is built to withstand the demanding conditions of a car wash environment. It functions reliably within a pressure range of 20-115 PSI and has a proof pressure of 215 PSI. The operational temperature range is wide, from -4°F to 158°F (-20°C to 70°C), and it provides a flow rate of 0.78 CV. For enhanced durability and safety, the valve boasts IP65 protection, is explosion-proof, and features Class B Insulation. Solenoids come with compatible DIN connectors that feature an internal indicator LED, and all M4V-Series valves come standard with locking manual overrides for convenient control.
- Manufacturer Part Number (MPN): M4V210-06-110VAC
- Product Type: Air Solenoid Valve
- Series: M4V-Series
- Valve Type: Internally Piloted, Single Solenoid
- Function: 4-Way, 2-Position
- Ports: 5 Ports
- Port Size: 1/8" NPT
- Voltage: 120 VAC
- Power Consumption: 3.50VA AC / 3.0W DC
- Max Frequency: 5 cycles/sec
- Pressure Range: 20-115 PSI
- Proof Pressure: 215 PSI
- Temperature Range: -4°F to 158°F (-20°C to 70°C)
- Flow Rate (Cv): 0.78
- Body Material: Aluminum Alloy
- Connector Type: DIN Connector (with internal indicator LED)
- Protection: IP65
- Insulation Class: Class B
- Safety Features: Explosion Proof
- Control: Locking Manual Overrides Standard
- Application: Controls air for detergents in car wash PODs; suitable for inline or manifold applications.
- Precise Detergent Control: Designed to regulate air for detergents in car wash PODs.
- High Flow, Low Power: Internally piloted design ensures efficient air delivery with reduced energy consumption.
- Versatile Application: Ideal for both individual valve use and stackable manifold assemblies.
- Durable Construction: Features an aluminum alloy body, IP65 protection, and explosion-proof design for harsh environments.
- Integrated Features: Includes DIN connector with LED indicator and standard locking manual overrides.
- Wide Operating Range: Reliable performance across a broad pressure and temperature spectrum.
