Wraps/Mitters/Hugger Brushes Hydraulic Motor

(0)No Reviews yet
$300.00
SKU: P-M1001

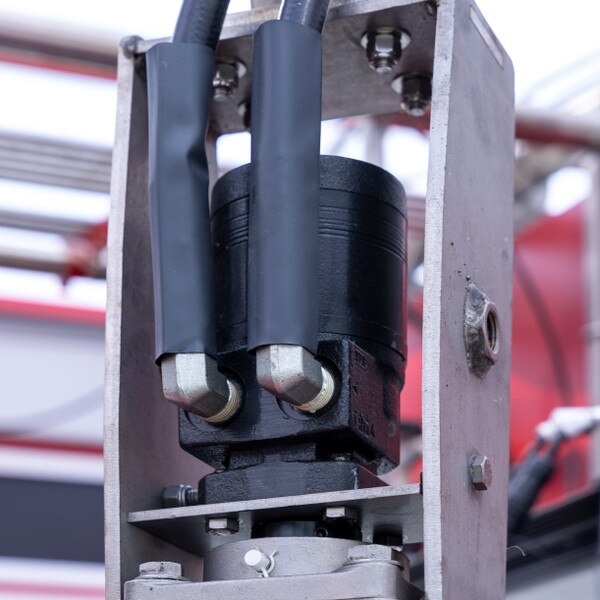

The Hydraulic Motor is a powerful and durable orbital motor specifically engineered to drive the Wraps, Mitters, and Hugger Brushes within your car wash tunnel. As a critical mechanical actuator, it efficiently converts hydraulic pressure and flow into the torque and rotation necessary for effective brush operation.


This motor is designed for longevity, featuring continuous oil flow across its internal splines, which significantly enhances durability and extends its lifespan. It boasts a superior side load capacity (up to 1,100 lbs at the key) and delivers exceptionally smooth, ultra-low-speed operation, ensuring reliable and consistent performance throughout every wash cycle. A key innovative design element is the elimination of the need for a case drain, which simplifies plumbing, reduces installation time, and minimizes maintenance costs and potential downtime.


With a displacement of 11.9 in³/rev, this motor is optimized for applications requiring higher torque at slower speeds, making it ideal for the larger wrap and mitter brush systems. It handles a maximum oil flow of 15 GPM and can withstand a maximum differential pressure of 2,400 PSID. The motor is equipped with two 1/2" NPTF ports, either of which can serve as an inlet or outlet, allowing for easy adjustment of motor rotation direction by simply swapping the hydraulic lines. Constructed with robust DU and Sintered Copper/Steel Bushings and a high-pressure shaft seal, it ensures reliability in demanding car wash environments. It's important to ensure the keyway remains in place during installation to prevent shaft damage.

  • Product Type: Hydraulic Orbital Motor
  • Application: Car Wash Wraps, Mitters, Hugger Brushes
  • Displacement: 11.9 in³/rev
  • Mounting Type: 4 Bolt
  • Porting Type: 1/2" NPTF (2 Ports, reversible flow for rotation)
  • Shaft Type: 1" Short Woodruff Key with 1/4" Tap
  • Main Body Outside Diameter: 3-5/8"
  • Max Side Load at Key: 1,100 lbs.
  • Max Speed: 932 RPM
  • Max Oil Flow: 15 GPM
  • Max Pressure: 2,400 PSID
  • Bushings: DU and Sintered Copper/Steel
  • Case Drain: Not required
  • Material (Inferred from specs): Robust construction, coated metal to prevent corrosion
  • Optimized for Wraps/Mitters/Huggers: Provides higher torque at slower speeds for these applications.
  • Case Drain Eliminated: Simplifies plumbing, reduces maintenance, and lowers potential leak points.
  • Superior Side Load Capacity: Withstands significant lateral forces for enhanced durability.
  • Smooth Low-Speed Operation: Ensures consistent and effective brush performance.
  • Extended Lifespan: Continuous oil flow across splines and robust construction contribute to longevity.
  • Reversible Rotation: Easily change direction by swapping inlet/outlet hydraulic lines.
  • High Pressure Capability: Rated for up to 2,400 PSID for reliable operation.
