Turck Inductive Proximity Sensor

(0)No Reviews yet
$118.30
SKU: CCS-T4647600

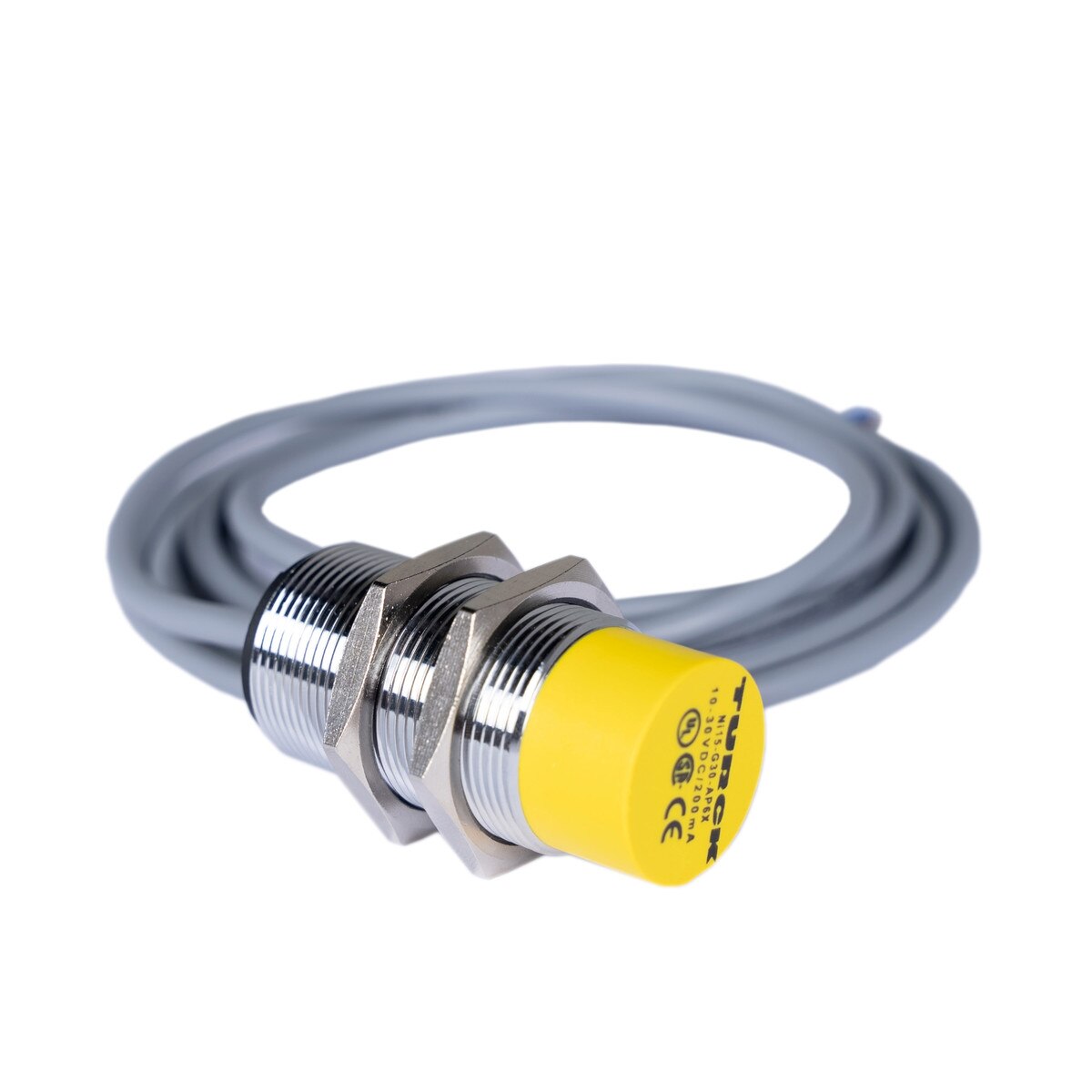

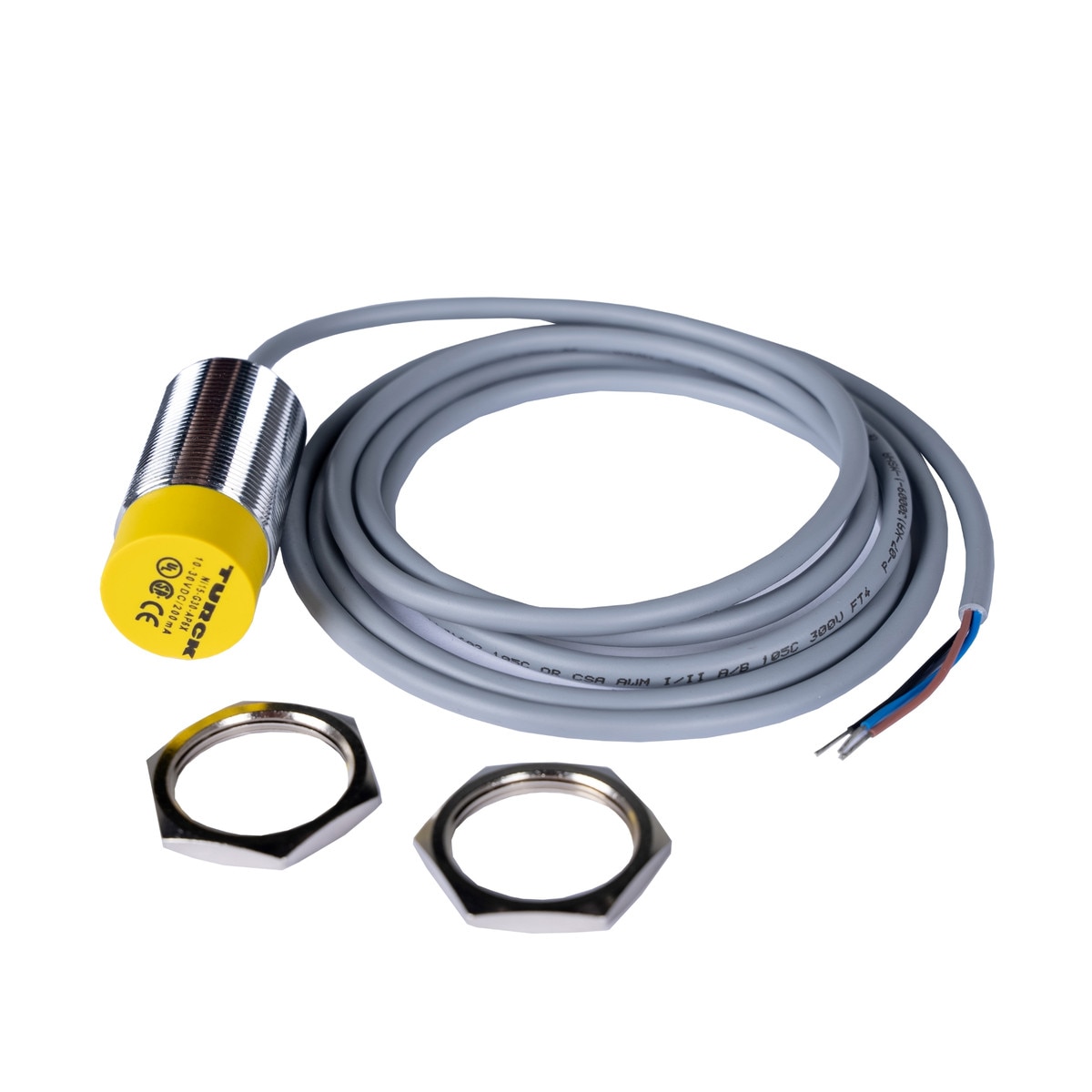

The Turck NI15-G30-AP6X (PNP) general purpose inductive proximity sensor has many uses. The main one for car washes is loose chain/pulse sensor. While in the wash, this sensor detects metal objects (flags) to send a signal to the controller. This sensor offers multiple protections including short-circuit and overload protection as well as reverse polarity and wire break protection. Includes 6.5' cable.
  • Sensor Number: NI15-G30-AP6X (PNP)
  • Brand/Series: NI15 Series
  • Current, Consumption: 200 mA (Max.)
  • Current, Switching: 200 mA
  • Length: 2-1/3"
  • Diameter: 30MM
  • Frequency, Switching: 500 Hz
  • Function: Proximity
  • Material, Housing: Brass
  • Mounting Type: M30 X 1.5 Threaded
  • Sensing Range: 15 mm
  • Voltage: 10-30 VDC
  • Temperature Range: -13F-158F
  • Termination: 3-Wire Cable
  • Type: Inductive
  • Environment Rating: NEMA 1, 3, 4, 6, 13; IP67
  • Includes 6.5' Cable

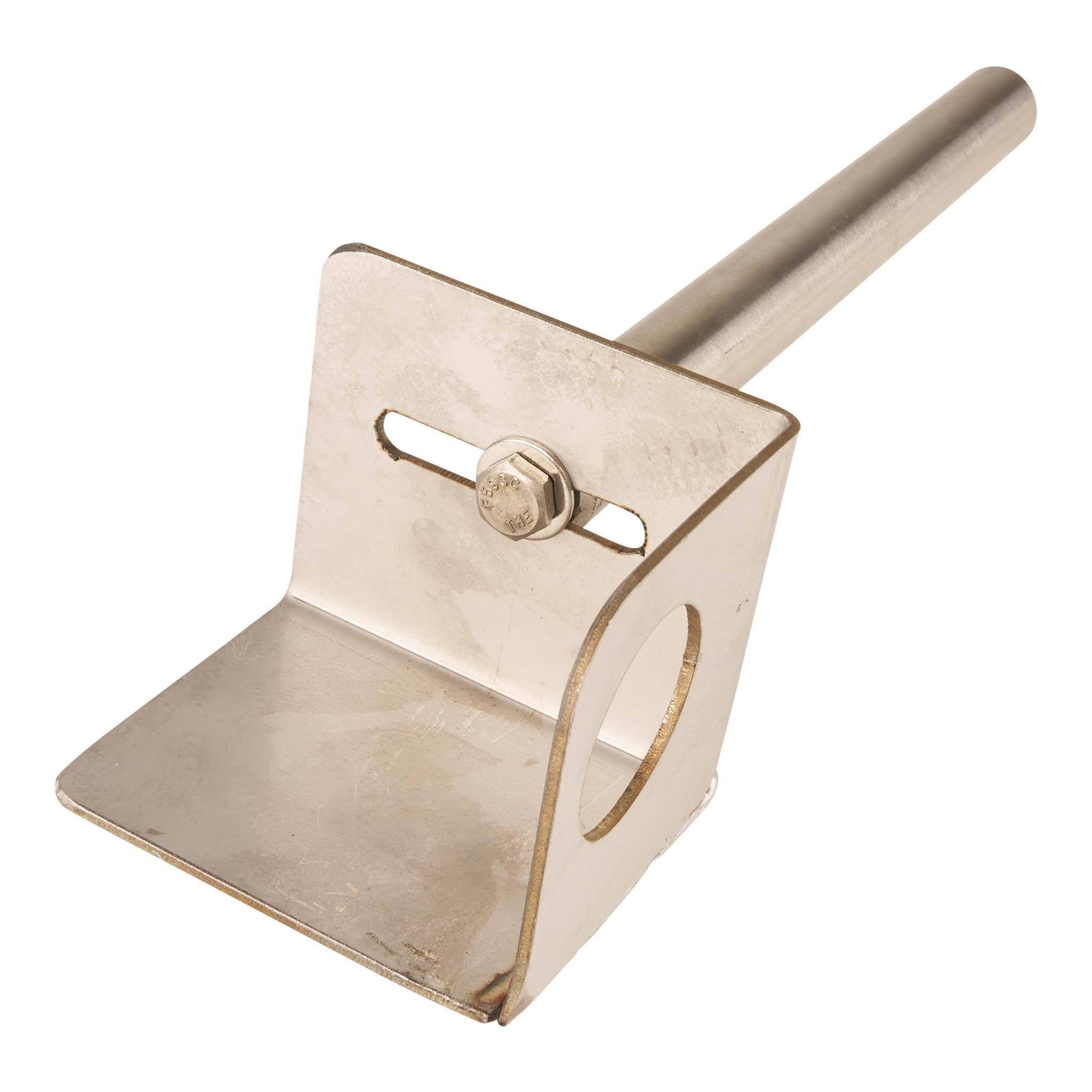

Used with 8 Flag Proximity Target Collar (P-C2158-2-1516)
