05E80 1/4" Male PVDF Spray Nozzle
The 05E80 PVDF Spray Nozzle is a high-performance, chemical-resistant component designed for various applications within a car wash tunnel. This nozzle is a popular and reliable choice for systems like the Conveyor Belt Flush and the Drying Agent Arch, where a consistent and effective spray pattern is crucial for proper operation.

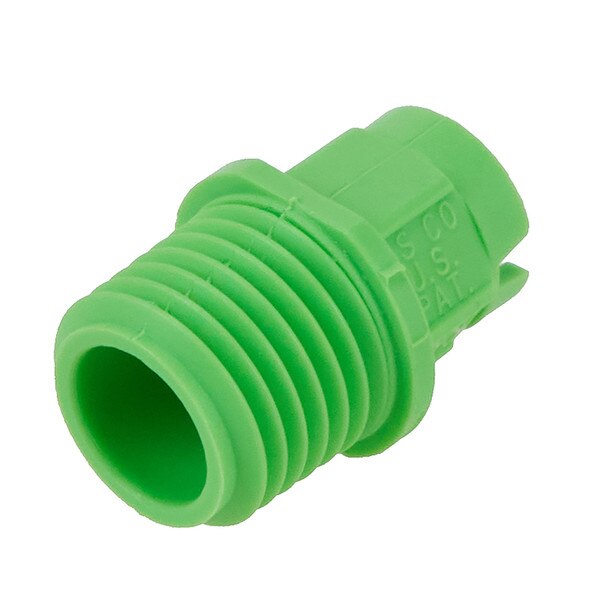

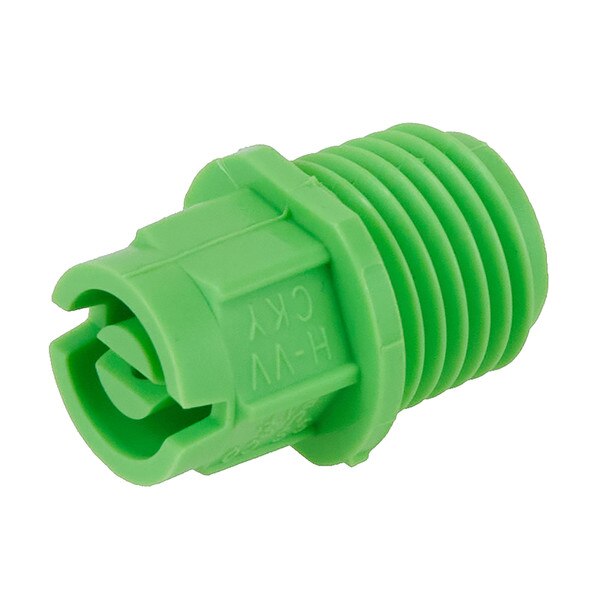

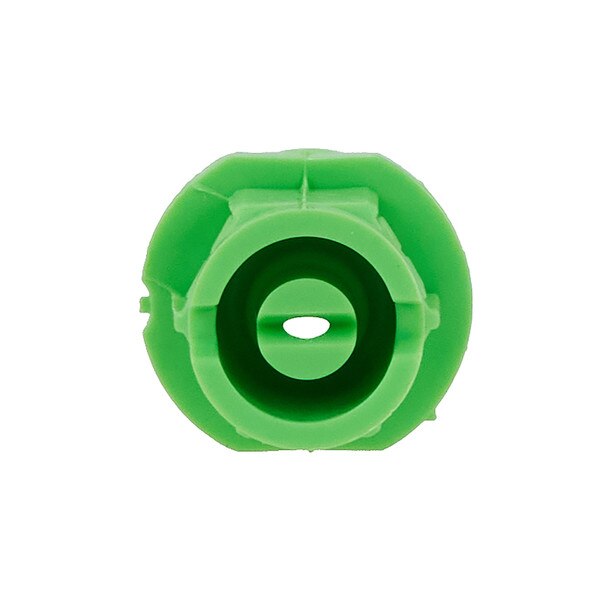

Crafted from durable PVDF (Polyvinylidene Fluoride) polymer, also known as Kynar, this nozzle is exceptionally resistant to chemical erosion and abrasion. This makes it an ideal choice for the harsh, chemical-rich environment of a car wash, ensuring a long service life and reliable performance. The nozzle is easily identified by its light green color.

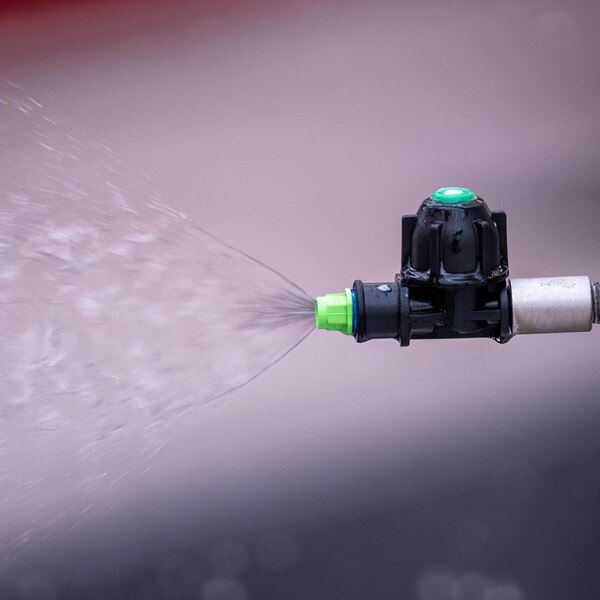

Featuring a 1/4" Male NPT connection, this nozzle is designed for straightforward installation into existing plumbing and manifolds. With a capacity size of #05, it is rated to deliver a flow rate of approximately 0.5 GPM at 40 PSI. The 80-degree flat fan spray angle provides a wide and even coverage pattern, making it highly effective for both cleaning and applying drying agents. It can withstand a maximum pressure of up to 500 PSI, providing a generous safety margin.
The nozzle's compact design, with a diameter of 5/8" and a length of 7/8", ensures it can be installed in tight spaces without issue. Its reliable performance and high-quality material make it an excellent choice for maintaining a consistent and effective car wash process.
- Product Type: Spray Nozzle\
- MPN: H1/4VV-CKY8005
- Connection Size: 1/4" Male NPT
- Nozzle Type: VeeJet, Flat Fan
- Capacity Size: #05
- Flow Rate: 0.5 GPM (at 40 PSI)
- Spray Angle: 80 Degrees
- Material: PVDF (Kynar)
- Color: Light Green
- Max Pressure: 500 PSI
- Dimensions: 5/8" diameter x 7/8" length
- Application: Conveyor Belt Flush, Drying Agent Arch
- Chemical & Abrasion Resistant: Made from durable PVDF (Kynar) to withstand harsh car wash chemicals and high-pressure water.
- Effective Spray Pattern: Delivers a wide, 80-degree flat fan spray for uniform coverage.
- Versatile Use: Ideal for both cleaning applications like the conveyor belt flush and chemical applications like the drying agent arch.
- Easy Installation: Features a standard 1/4" Male NPT connection for quick and simple replacement.
- Reliable Performance: A high-quality component that provides consistent and accurate flow.
