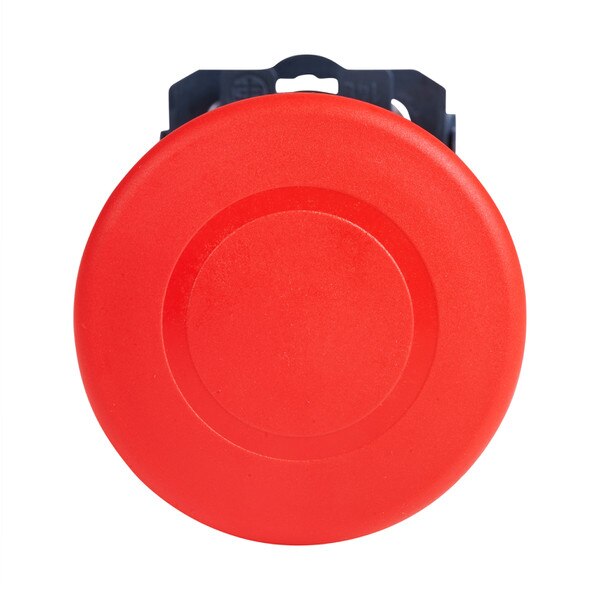

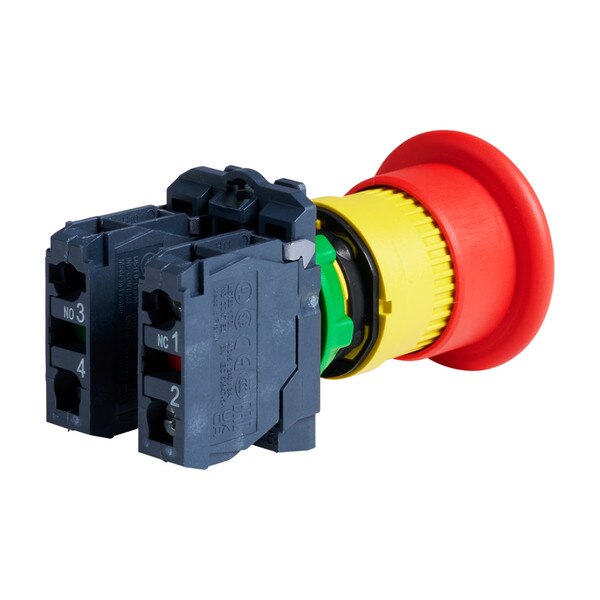

Non-Illuminated Round Red Emergency Push/Pull Stop Switch

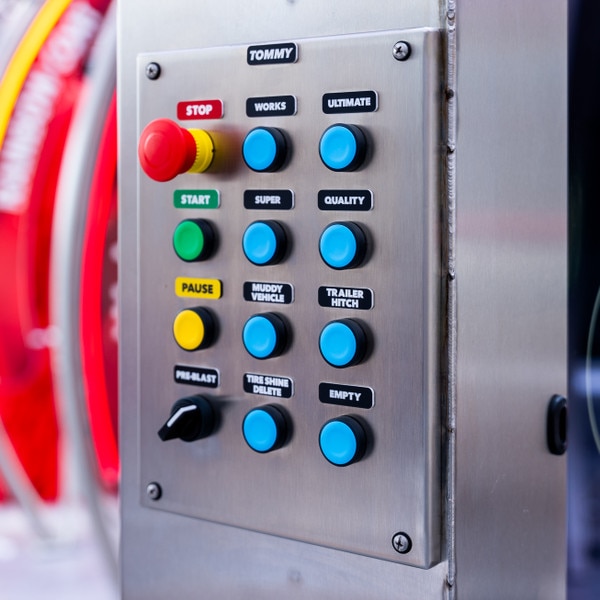

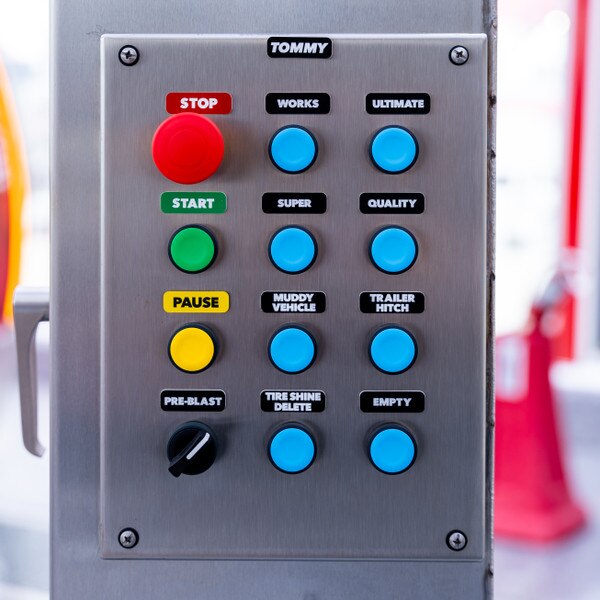

This EMO/ EMS push button is used in many applications including control panels and push button stations. These non-illuminated emergency push buttons support a current of up to 10 Amps, with short-circuit protection. Operational voltage is between 125 and 600 VDC or VDC. The button has a flush mounting type and a panel mounting style that has screw termination. This push button is UL Listed and has a mushroom cap design for easy use. It can be easily installed in a 22mm cutout and is built to withstand tough environments.
- Color: Red
- Material: High Durable Plastic
- Contact Configuration: 1NC + 1NO
- Short Circuit Protection: 10 Amps
- Voltage Rating: 120V-600V (0.1A-6A)
- IP Protection: IP66, IP67, IP69, IP69K
- Mounting Diameter: 22mm
- Head Size: 40mm
- Material, Contact: Silver alloy
- Number of Poles: 1 Pole
- Standards: CCC, CE, CSA C22.2 No.14, EN 60947-1, EN 60947-5-1, TUV, UL 508, VDE 0660-200
- Operating Temp. Range: -40F-158F
- Dimensions: 2.10" X 1.70" X 3.50"
- Push-Pull Switch Function
- Oiltight
- Mushroom Cap Design
- Build to withstand tough environments
- Easy to assemble and install
- Non-Illuminated
18 Month Warranty
*Please review our warranty policy here for additional details.
