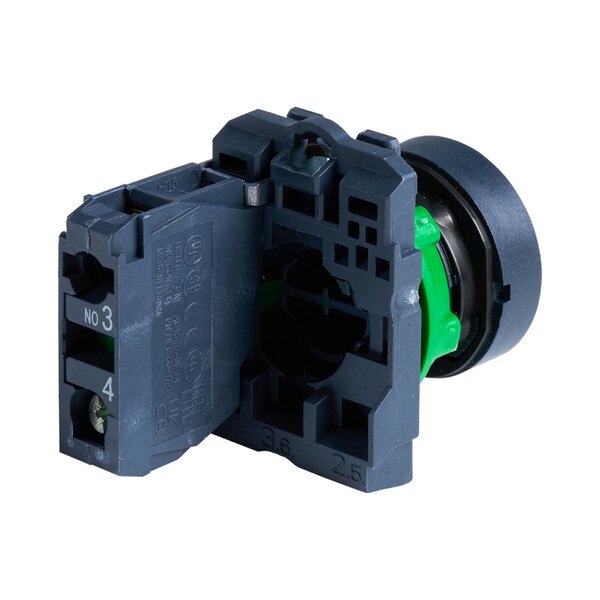

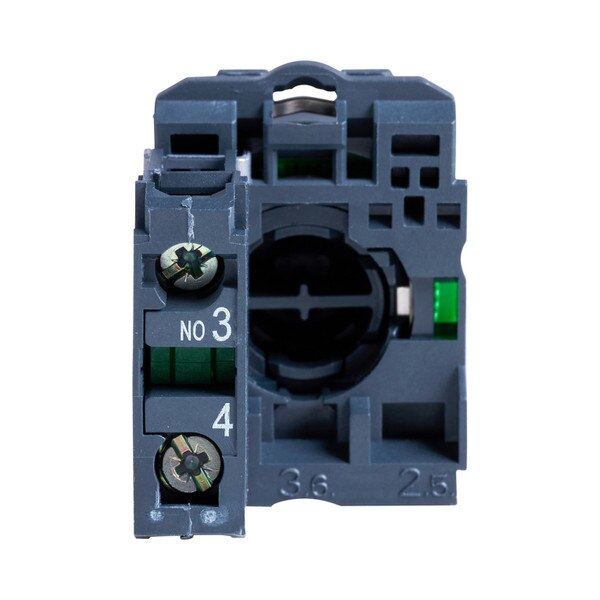

Non-Illuminated Round Green Push Button Switch
This round green push button is typically used to start processes but has many uses in machines of all types including car washes, material handling, packaging, energy distribution panels, pumping, etc. The non-illuminated push button offers improved reliability of panels, machines, and processes while also improving operator efficiency. These switches deliver an innovative design for easy operation of control panels and machines.
- Contacts Type: 1 NO
- Short-Cricut Protection: 10 Amps
- Voltage Rating: 120V-600V (0.1A-6A)
- IP Protection: IP66, IP67, IP69, IP69K, IEC60529
- Dimensions: 2.05" X 1.18" X 1.65"
- Material: Plastic
- Contacts Material: Silver Alloy
- Mounting Diameter: 7/8" (22MM)
- Certifications: RINA, DNV, BV, CSA, LROS, GL, UL Listed
- Operating Temperature: -40F-158F
- Termination: Screws
- Type: Pushbutton
- Non-Illuminated Button
- Button Color: Green
- Locking lever removable contact blocks
- Works with various connections: screw clamp, Faston connector, printed circuit boards and spring terminal
- Tamperproof construction
- Built to withstand tough environments
- All E-stops meet EN418 and are compliant with SEMI
- S2 standards
- Worldwide approvals
- Easy to assemble
- Slow make double break self-cleaning contacts
18 Month Warranty
*Please review our warranty policy here for additional details.
