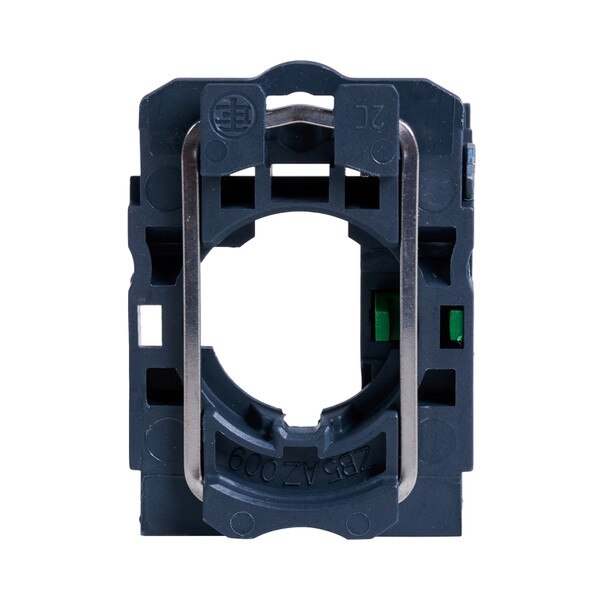

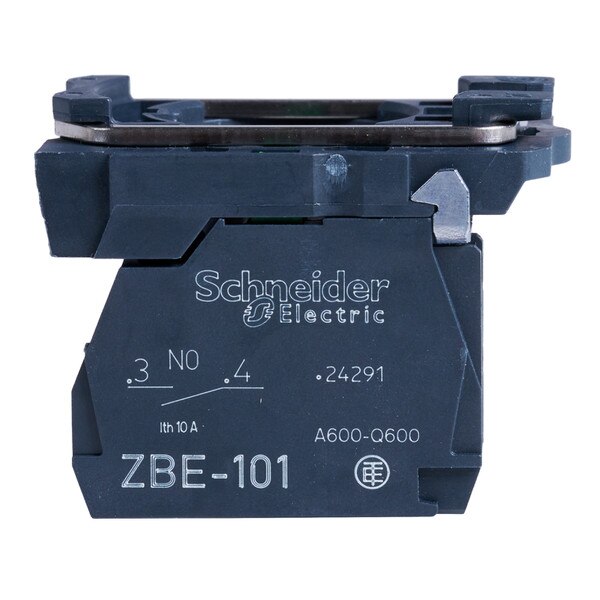

Push Button Contact Block Switch Unit 22mm
This switch unit is part of the XB5 series of switches. It is used to hold 22mm push buttons, switches, and pilot lights. This unit provides simple installation, efficiency, flexibility, a modern design, and robustness. At car wash locations, it is primarily used to hold the red push button (P-VAC-279) that us used for the start control in the Vacuum Stations.
- Contact Form: 1 NO
- Contact Rating: 10 A @ 600 VAC
- Operating Temp. Range: -40F-158F
- Degree of Protection: IP20, IEC 60529
- Compatible with the big red button used to start vacuums
- For use with Schneider ZB5 plastic operators
18 Month Warranty
*Please review our warranty policy here for additional details.
