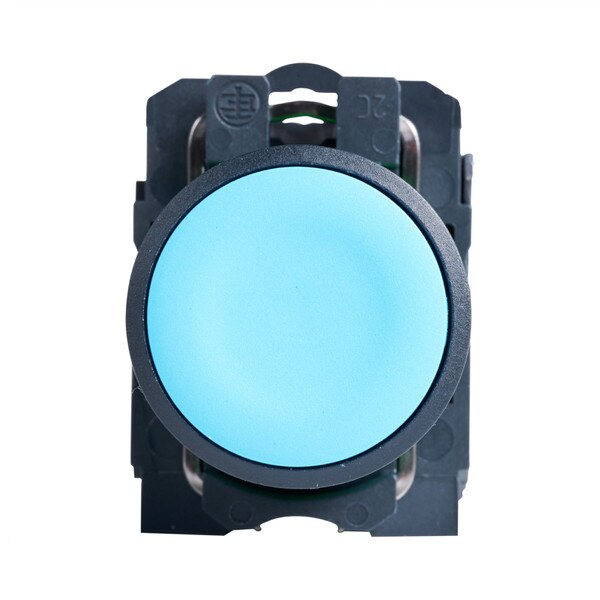

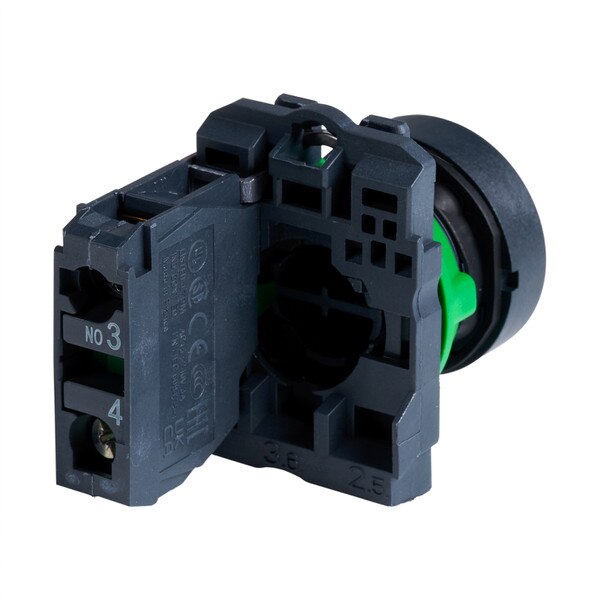

Non-Illuminated Round Blue Push Button Switch
SKU: CCS-HW2B-M1F10L-S
Non-Illuminated 1NO Round Blue Push Button Switch for Managing Processes in Numerous Areas of Operations
This round blue push button is typically used to help manage processes but has many uses in machines of all types including: car washes, material handling, packaging, energy distribution panels, pumping, etc. The non-illuminated push button offers improved reliability of panels, machines, and processes while also improving operator efficiency. These switches deliver an innovative design for easy operation of control panels and machines.
- Contacts Type: 1 NO
- Short-Cricut Protection: 10Amps
- Voltage: 120-600V (0.1A-6A)
- IP Protection: IP66, IP67, IP69, IP69K, IEC60529
- Dimensions: 3.5" X 2.1" X 1.4"
- Material: Plastic
- Contacts Material: Silver Alloy
- Mounting Diameter: 7/8" (22MM)
- Certifications: RINA, DNV, BV, CSA, LROS, GL, UL Listed
- Operating Temperature: -40F-158F
- Termination: Screws
- Type: Pushbutton
- Non-Illuminated Button
- Button Color: Blue
- Button Shape: Round
- Locking lever removable contact blocks
- Finger-safe IP20 contacts as standard, other terminal
- Tamperproof construction
- All E-stops meet EN418 and are compliant with SEMI
- S2 standards
- Worldwide approvals
- Easy to assemble
- Slow make double break self cleaning contacts
18 Month Warranty
*Please review our warranty policy here for additional details.
