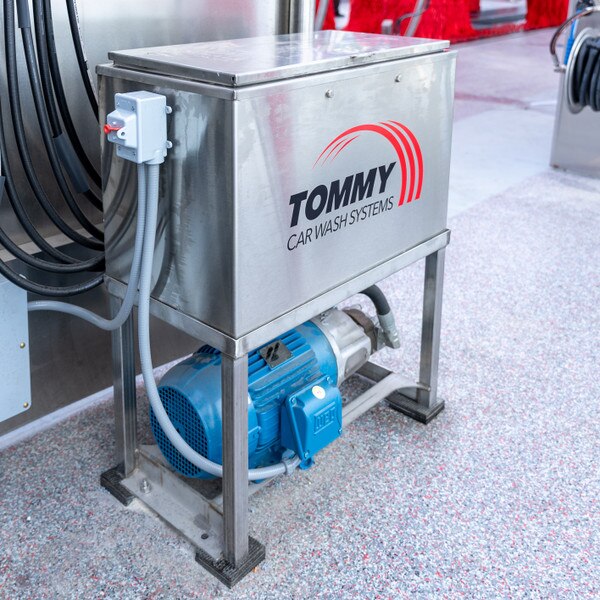

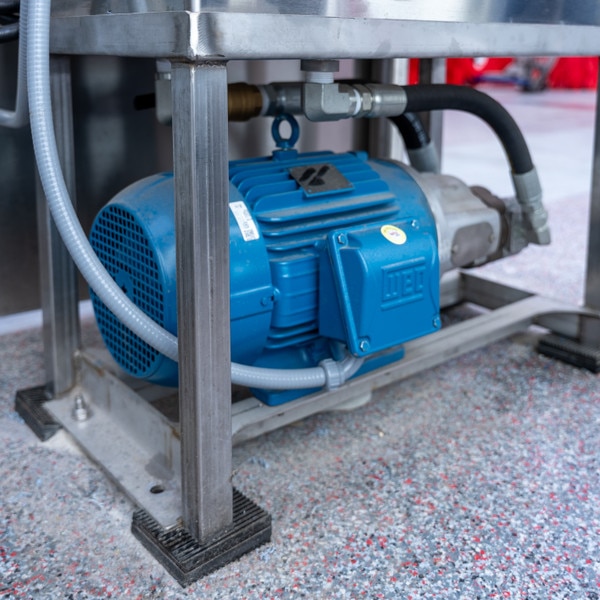

10 HP Electric Motor for Hydraulic Power Unit
The 10 HP Electric Motor is a high-performance, industrial-grade component designed to power 3 and 4 bank hydraulic power units. This motor is built to withstand the rigorous demands and harsh conditions of a car wash tunnel, providing reliable and efficient operation.
This NEMA Premium® certified motor boasts a high nominal efficiency of 91.7%, which helps reduce energy consumption and operating costs. Its durable cast iron frame and corrosion-resistant finish ensure longevity. The Totally Enclosed Fan-Cooled (TEFC) design, along with V-ring slingers on both endshields, effectively blocks debris and water from entering the housing. Key features for installation and maintenance include threaded and gasketed conduit boxes, automatic pressure-compensated drain plugs, and a laser-etched stainless steel nameplate that will not fade over time. With a keyed shaft and versatile face/base mounting, this motor is a direct fit for your hydraulic power unit.
- Product Type: Electric Motor
- Power: 10 HP
- Speed: 1,760 RPM
- Voltage: 208-230/460 VAC
- # of Phases: 3
- Frequency: 60 Hz
- Shaft Diameter: 1-3/8"
- Shaft Length: 3-3/8"
- Frame: 215TC
- Frame Material: Cast Iron
- Nominal Efficiency: 91.7%
- Motor Service Factor: 1.25
- Mounting: Face/Base
- Insulation Class: F
- Bearing Type: Ball
- Design: Totally Enclosed Fan-Cooled (TEFC)
- Certifications: CSA Certified, UL Listed
- NEMA Premium® Efficient: High efficiency for lower energy consumption.
- Corrosion-Resistant: Built with a durable cast iron frame and special finish.
- Debris & Water Protection: TEFC design and V-ring slingers protect internal components.
- High Performance: 10 HP motor with a 1.25 service factor for demanding loads.
- Long-Lasting Information: Stainless steel, laser-etched nameplate.
18 Month Warranty
*Please review our warranty policy here for additional details.
