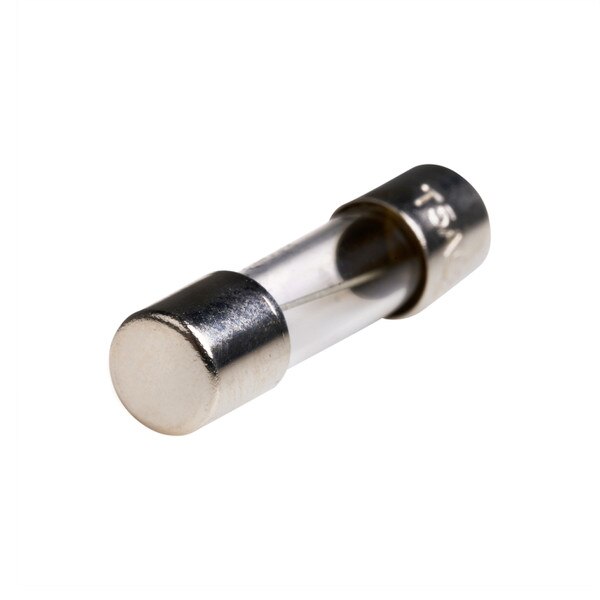

5A Time Dealy Slow-Blow Glass Fuse
This glass fuse is used in the Tommy RO System Controller. These cartridge-style glass fuses provide overcurrent protection for low-current circuits. These fuses are made of glass and are not meant to be exposed to high heat as the glass will shatter. This fuse is considered a slow-blow fuse as it opens to disconnect an electrical circuit when exposed to sustained loads and short circuits. This fuse is part of the GDC series of Time Delay glass fuses.
- Max Voltage: 250 VAC or 32 VDC
- Amperage: 5 Amps (5A)
- Interrupt Rating: 35 A at 250 VAC
- Material: Glass
- Dimensions: 13/16" X 3/16"
- Provides a Time Delayed Slow-Blow Overcurrent Protection at 5A
- Allows for temporary current surges without blowing
- Glass body for easy visual inspection
- Single Element
- Panel Mounting Type
- CE Standard
- UL Listed
- Works for other applications where a slow-burn fuse is needed, such as motor circuits and inductive loads
