Purclean Micro Switch

(0)No Reviews yet
$6.86
SKU: PURCLEAN-V7-1A17D8

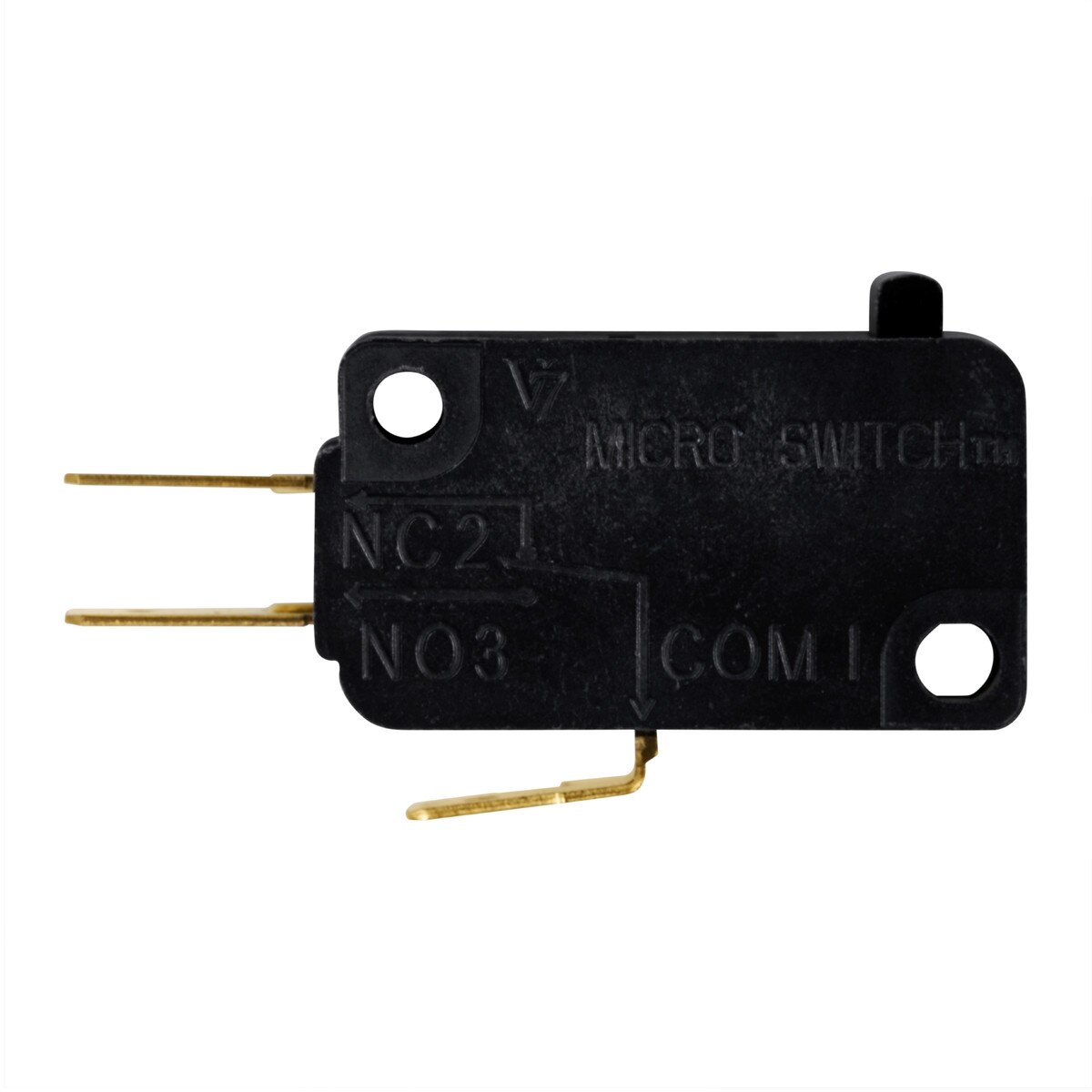

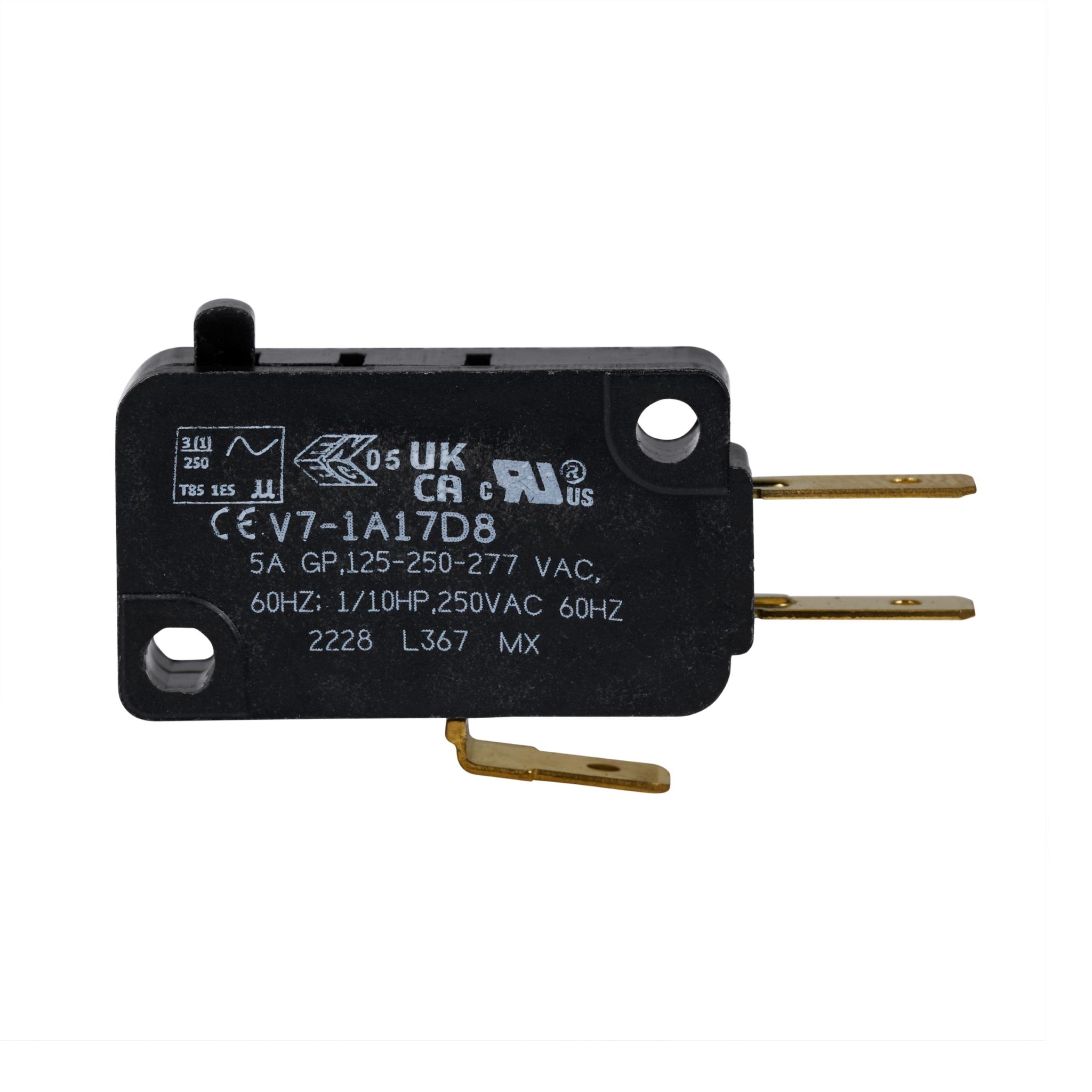

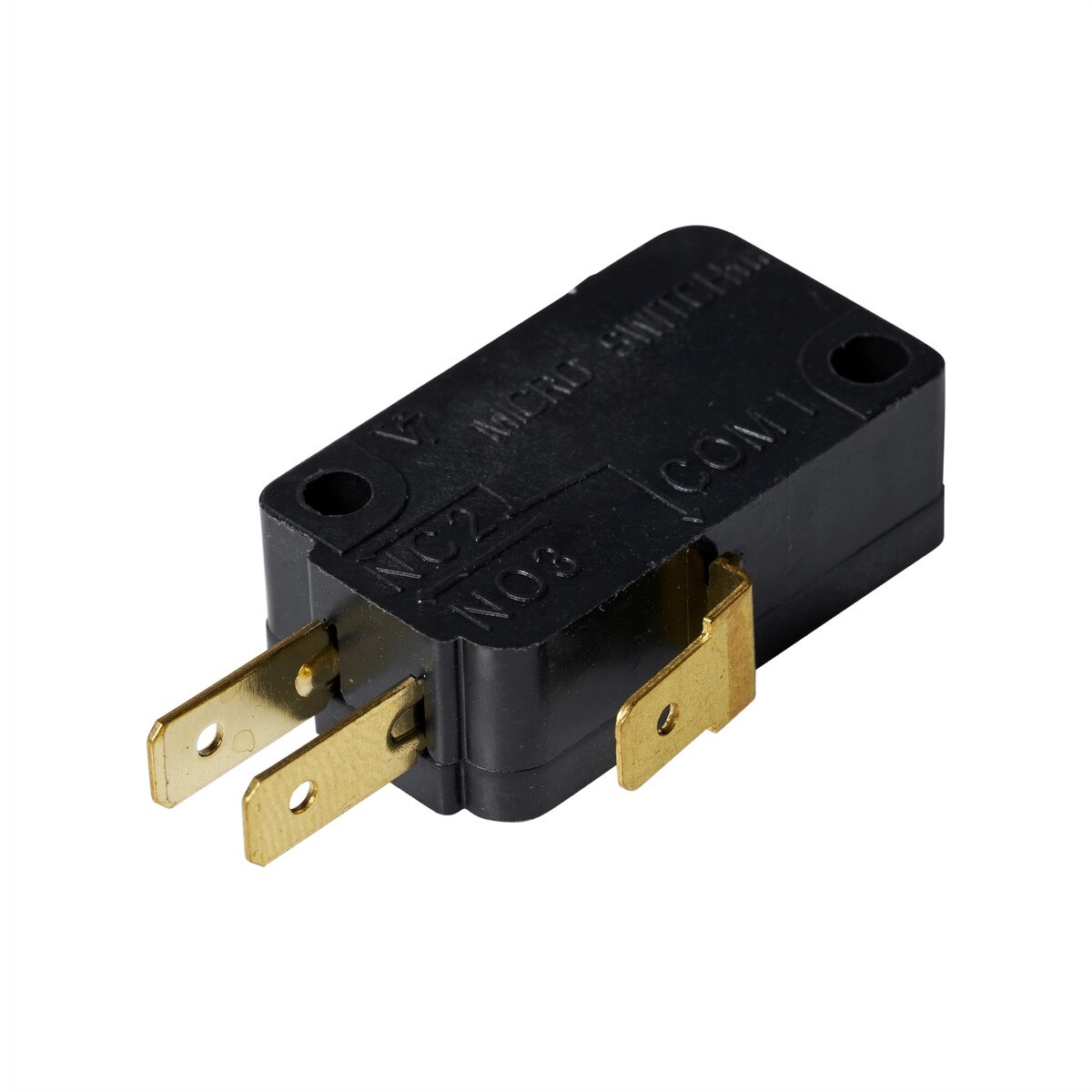

SWITCH SNAP ACTION SPDT 5A 125V
MICRO SWITCH - USED ON PT AUTOHEADS and HAYWARD VALVES
  • CircuitSPDT
  • Switch FunctionOn-Mom
  • Current Rating5A (AC)
  • Voltage Rating - AC125V
  • Voltage Rating - DC-
  • Actuator TypeRound (Pin Plunger)
  • Mounting TypeChassis Mount
  • Termination StyleQuick Connect - 0.187" (4.7mm)
  • Ingress Protection-
  • Features-
  • Operating Force, Torque150gf
  • Release Force25gf
  • Pretravel0.047" (1.2mm)
  • Differential Travel0.010" (0.25mm)
  • Overtravel0.050" (1.27mm)
  • Operating Position0.579" (14.7mm)
  • Mechanical Life10,000,000 Cycles
  • Electrical Life100,000 Cycles
  • Operating Temperature-40°C ~ 85°C
