Stainless 2" Bore Tire Shine Retract Air Cylinder
Stainless steel air cylinder with a 2" bore and 8" stroke, designed to control the retraction and extension of the brush arm on the Tire Shine Applicator

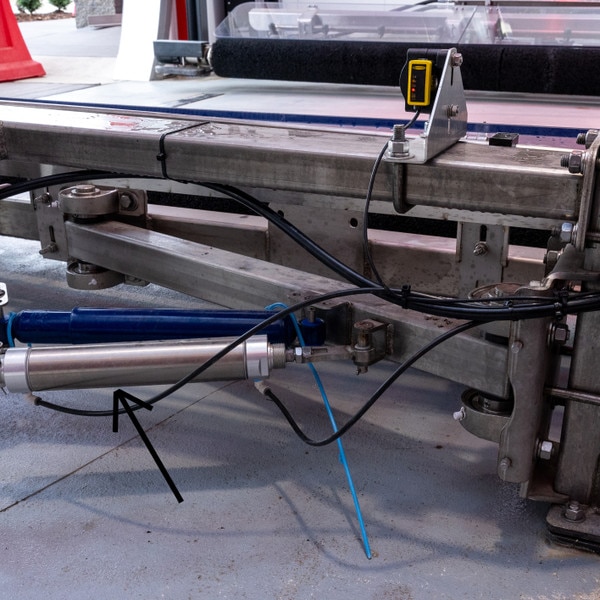

The Stainless 2" Bore Tire Shine Retract Air Cylinder is a critical pneumatic component used to precisely control the movement of the Tire Shine brush assembly. Located within the Blower Room, this cylinder governs how far the brush extends toward the rolling vehicle as it passes through the applicator.
Key to its function is its size: a robust 2" bore and an effective 8" stroke. This cylinder features a durable stainless steel body that is highly resistant to corrosion from moisture and chemicals.

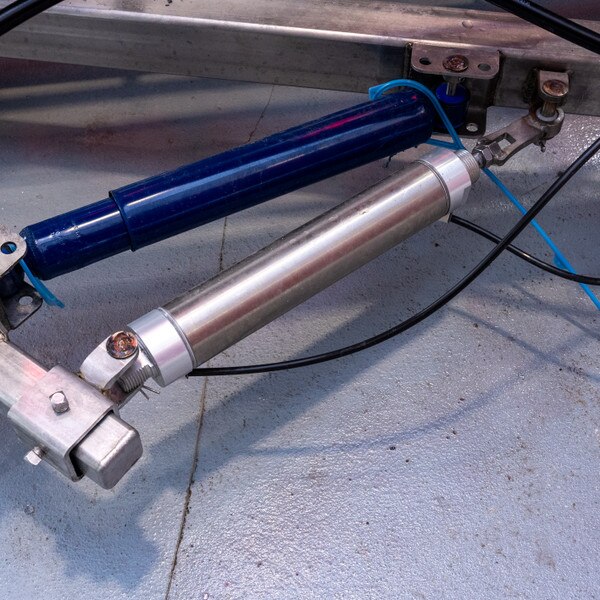

One end connects to the Tire Shine frame via the rear pivot bracket (with a 3/8" mounting hole), and the rod end (1/2" diameter, 7/8" thread length) connects to the rear brush arm. One cylinder is required for the driver side and one for the passenger side of the Tire Shine Applicator.
- Product Type: Double End Mount Air Cylinder (Pneumatic)
- Function: Controls extension and retraction of the Tire Shine brush arm.
- Material: Stainless Steel
- Bore Size: 2"
- Stroke Size: 8"
- Rod Size: 1/2" Male
- Thread Length: 7/8"
- Rear Pivot Hole Diameter: 3/8"
- Operating Pressure: 8 PSI – 250 PSI
- Temperature Range: 40°F – 140°F
- Piston Speed: 2–20 in/sec.
- Total Length: 15"
- Quantity Required: One for Driver side and one for Passenger side.
- Precise Control: 2" Bore and 8" Stroke ensure accurate control over brush positioning.
- Corrosion Resistance: Stainless steel body construction for maximum durability in wet environments.
- Wide Operating Range: Reliable performance across a pressure range of 8 PSI to 250 PSI.
- System Essential: Required on both driver and passenger sides of the Tire Shine Applicator.
