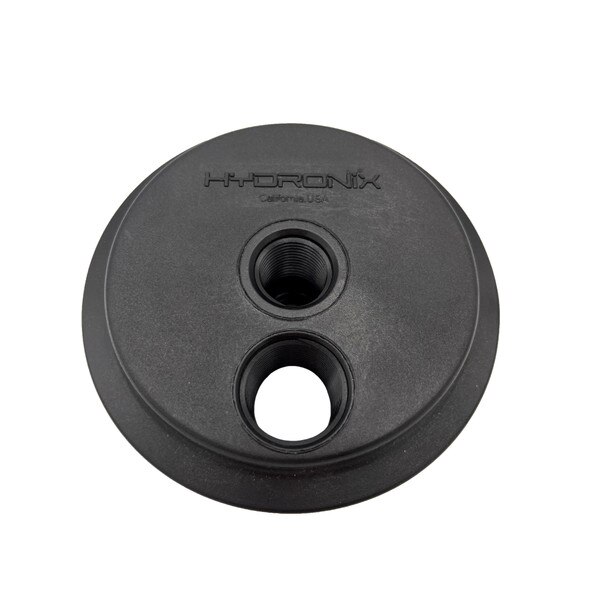

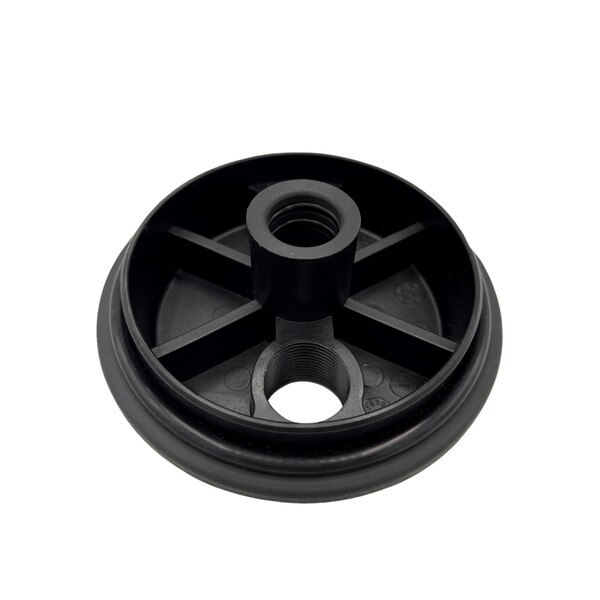

4" RO Vessel Plastic Membrane End Cap
SKU: PURCLEAN-VSH-40CAP
This end cap is a vital component for any 4-inch Reverse Osmosis system, including those used in car wash water treatment. It seals the pressure vessel and directs the flow of water into and out of the RO membrane element. Its precision molding and high-grade nylon construction are essential for handling the high pressure and continuous flow inherent in RO purification processes.
Key features and benefits include:
- RO Vessel Sealing: Designed to fit and seal the end of a standard 4-inch RO pressure vessel, holding the membrane securely in place.
- Durable Construction: Made from robust Nylon Plastic, ensuring the end cap can withstand the high operating pressures of the RO system without cracking or deforming.
- Integrated Flow Management: Includes distinct threaded ports for critical connections:
- Feed Port Size: 3/4 inch (Inlet for raw/filtered water).
- Brine Size: 1/2 inch (Outlet for rejected/waste water).
- Complete Assembly: Includes the required O-Rings to create a tight, leak-proof seal between the cap and the vessel body.
- Connection Dimensions: The two main connection points have external diameters of 7/8 inch and 3/4 inch.
- Manufacturer Part #: 13994-803
- Product Type: RO Membrane End Cap with O-Rings
- Material: Nylon Plastic
- Vessel Compatibility: 4" Diameter RO Vessel
- Port 1 (Feed Size): 3/4"
- Port 2 (Brine Size): 1/2"
- Connection One Diameter: 7/8"
- Connection Two Diameter: 3/4"
- Dimensions: 4-7/8" x 2-1/4" x 2-1/4"
- Function: Seals RO vessel and manages feed/brine flow.
- Nylon Construction: High strength and pressure resistance.
- 4" RO Vessel: Exact fit for standard 4-inch membrane housings.
- 3/4" Feed & 1/2" Brine: Standardized port sizes for system integration.
- Includes O-Rings: Ready-to-install sealing assembly.
