Underbody Rust Inhibitor - PVC Sch. 80 Manifold (6-Port) (Replacement)
Robust replacement PVC manifold specifically designed for use in underbody rust inhibitor spray assembly(E-F2021). Constructed from durable 3/4" Schedule 80 PVC, this manifold is engineered for strength and corrosion resistance, crucial for the demanding environment of car wash operations. It measures 20 inches in length and features six (6) 1/4" NPT threaded ports, precisely spaced on 3-inch centers, for connecting individual nozzles. For main fluid line connections, one end of the manifold has a 1/2" Male NPT thread, while the other end has a 1/2" Female NPT thread. This manifold ensures precise and efficient distribution of rust inhibitor. For larger 12-nozzle underbody wash blaster applicators(E-P2011-A), two of the stainless steel underbody blaster manifolds(P-RP-0043) are utilized as an alternative.
- Product Type: Manifold
- Material: PVC Schedule 80
- Nominal Pipe Size: 3/4"
- Length: 20 inches
- Number of Ports: 6
- Port Size: 1/4" NPT threaded
- Port Spacing: 3 inches on center

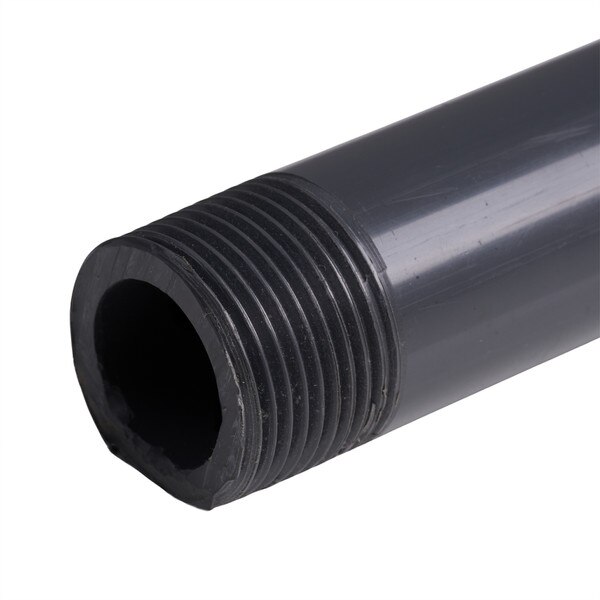

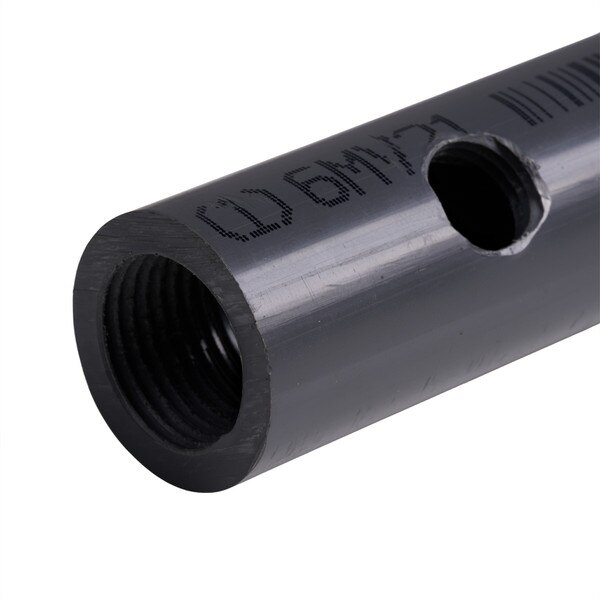

- End Connections: 1/2" Male NPT (one end), 1/2" Female NPT (other end)
- Application: Underbody Rust Inhibitor Spray Assembly (E-F2021)
- Durable Schedule 80 PVC: Provides enhanced strength and corrosion resistance for longevity in harsh car wash environments.
- Precise 6-Port Design: Features six 1/4" NPT threaded ports on 3-inch centers for accurate nozzle placement and even fluid distribution.
- Versatile End Connections: Equipped with 1/2" Male NPT and 1/2" Female NPT threads for flexible plumbing integration into the system.
- Optimized Fluid Distribution: Ensures efficient and uniform application of rust inhibitor for effective vehicle protection.
- Direct Replacement: Ideal for servicing existing underbody rust inhibitor spray manifolds.
