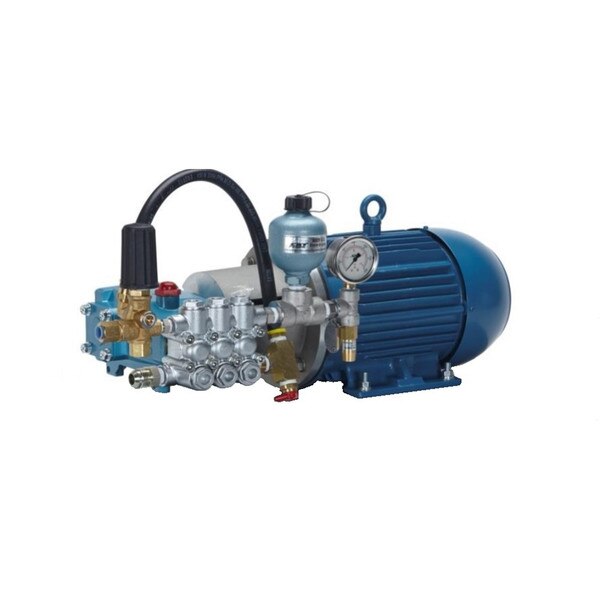

Bay Wash Down CAT Pump Assembly - 5CP Pump, 7.5 HP Motor
pre-assembled unit featuring a CAT 5CP Series triplex plunger pump paired with a 7.5 HP electric motor (208/480V). This assembly is designed for Bay Wash Down applications
SKU: P-SE-PG-2323
The Bay Wash Down CAT Pump Assembly with a 7.5 HP motor is a complete, intermediate-power solution for manual high-pressure wash down guns in the wash tunnel. This assembly provides reliable, high-pressure water flow for cleaning applications that do not require the full output of a 15 HP system.
Key Components and Function:
- CAT 5CP Pump: A durable triplex (three plunger rods) positive displacement pump known for its industrial reliability. This pump features a brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers, ensuring long life and resistance to wear.
- 7.5 HP Motor: The electric motor is rated at 7.5 HP and offers dual voltage compatibility (208/480 Volts), providing flexibility for different electrical setups.
- Includes Regulator: A pressure regulator is integrated into the assembly, allowing the operator to safely control and adjust the water pressure for manual wash down tasks.
This assembly is a cost-effective and energy-efficient alternative for wash down needs compared to higher horsepower units.
Note: The mounting stand for this assembly is not included.
- Product Type: High Pressure Pump Assembly / Wash Down Pump Assembly
- Application: Bay Wash Down Guns / Manual High-Pressure Cleaning
- Pump Type: Triplex (Three Plunger) Reciprocating Pump (CAT 5CP Series)
- Motor Horsepower (HP): 7.5 HP
- Voltage: 208/480 Volts (Dual Voltage)
- Maximum Pressure: Compatible with 5CP pump ratings (Typically up to 3000 PSI depending on pulley ratio)
- Components Included: CAT Pump, 7.5 HP Motor, Regulator
- Pump Material (Manifold): Brass
- Pump Material (Plungers): Solid Ceramic
- Intermediate Power: 7.5 HP provides a strong balance of pressure and flow for general wash down purposes.
- Dual Voltage Flexibility: Motor operates on 208V or 480V (3-Phase).
- Complete Assembly: Ready-to-install unit includes the rugged CAT 5CP pump, motor, and necessary regulator.
- Durable Construction: Utilizes the robust components of the CAT 5CP series for commercial durability.
