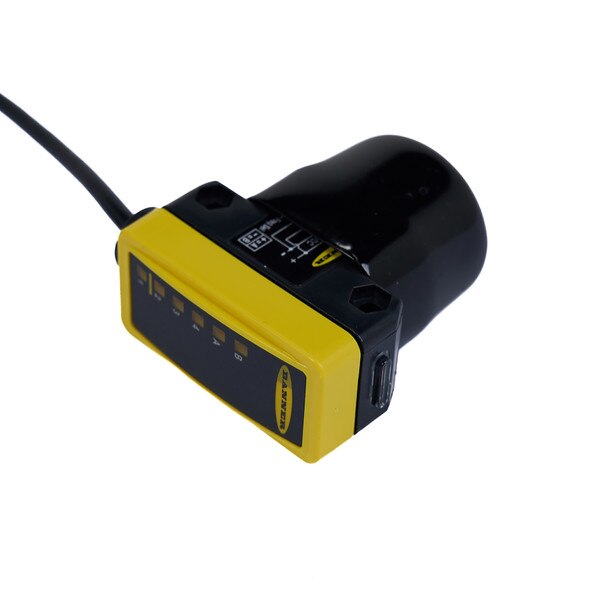

Banner QS30RRX High Power Receiver with 30' Cable
The Banner QS30RRX Receiver is the perfect companion to a Banner World Beam Emitter, forming a high-performance sensing system for demanding applications. This receiver is engineered to provide reliable detection over long distances, making it ideal for truck bed/gate detection and entrance photo eye sensors.
With a massive 700' sensing range and an extremely fast 5 ms output response time, this sensor ensures quick and accurate detection. It is built to withstand the toughest conditions, with a rugged, leakproof design and IP67 and NEMA 4X protection ratings. The innovative water-shedding Zeonex lens minimizes contamination and ensures reliable performance even during high-pressure washdowns. The receiver also features a Baragraph indicator that provides a visual reading of the signal strength for simplified alignment, and bipolar (NPN and PNP) outputs that offer wiring flexibility.
- Product Type: Photoelectric Sensor Receiver
- Brand: Banner
- Model: QS30RRX
- Sensing Mode: Opposed Receiver
- Sensing Beam: Infrared LED
- Supply Voltage: 10-30 VDC
- Operating Temp. Range: -4°F to 158°F
- Sensing Range: 700'
- Output Response Time: 5 ms
- Cable Length: 30'
- Barrel Diameter: 1-3/16" (30 mm)
- Number of Pins: 5
- Housing Material: Thermoplastic
- Lens Material: Zeonex
- Mounting: Rectangular Housing with M30 Mount
- Output Type: Bipolar (NPN and PNP)
- Protection Ratings: IP67, NEMA 4X
- High-Power, Long-Range: Capable of sensing objects up to 700' away with a fast 5 ms response.
- Superior Environmental Protection: IP67 and NEMA 4X ratings ensure durability in harsh conditions.

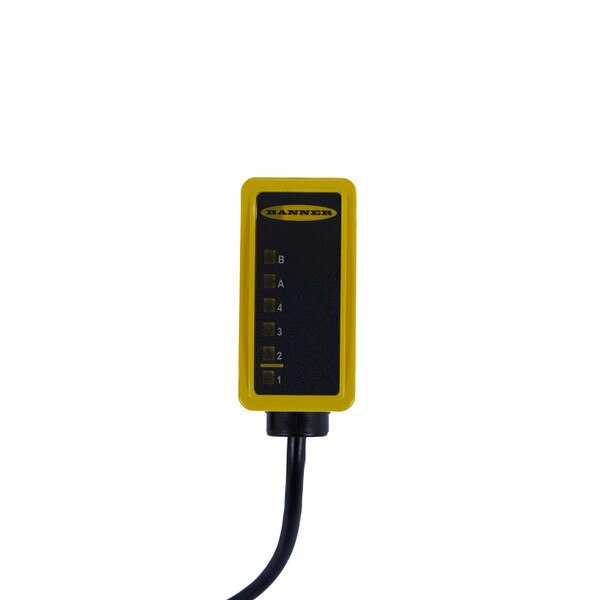

- Simplified Alignment: Baragraph indicator provides visual signal strength for easy setup.
- Wiring Flexibility: Bipolar (NPN and PNP) outputs allow for versatile wiring configurations.
- Resists Contamination: Water and debris-shedding Zeonex lens ensures reliable performance.
