Jobe Topaz Series Float Valve (1" NPT, 80 GPM, Brass, Corrosion-Resistant)
The J-TPV0100DLT 1" Yellow Jobe Float Valve, from the renowned Topaz Series, is a robust and highly adaptable float-operated valve engineered for efficient automatic water filling in demanding applications. Specifically designed for the automatic express car wash environment, it is a key component in Tommy Car Wash Systems HP tank designs for reliable performance.
This heavy-duty valve, constructed from corrosion-resistant materials like Glass Filled Nylon, Acetal, and 304 Stainless Steel, is built to withstand harsh conditions. Its versatile design allows for top, bottom, or side wall mounting and can be configured for operation either above or below the waterline. The valve operates via a simple, proven mechanism where the float actuates a small pilot valve, which in turn controls the main diaphragm valve.

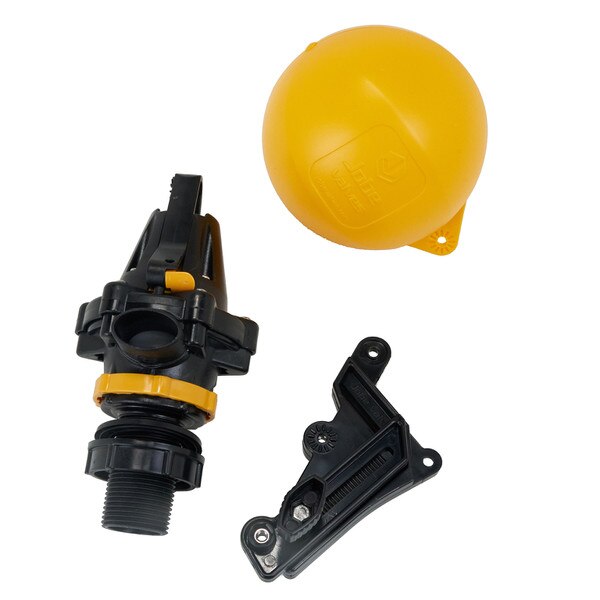

The J-TPV0100DLT boasts a high flow design, delivering an impressive 80 GPM at 75 PSI with its 1" NPT inlet. It operates efficiently across a pressure range of 5-100 PSI (0.3-7 Bar) and can handle maximum temperatures up to 140°F (60°C). A key feature is its slow shut-down mechanism, which effectively minimizes water hammer, protecting your plumbing system. The float position is easily adjustable without tools, and the valve even includes a switch to lock it in an off position. It comes standard with a 125mm wide float, typically yellow as seen in the product image.
- Product Type: Float Valve
- Series: Jobe Topaz Series
- Model Number: J-TPV0100DLT
- Application: Automatic filling of water troughs, tanks, cisterns, specifically in Tommy Car Wash Systems HP tank designs.
- Inlet Size: 1" NPT
- Flow Rate: 80 GPM @ 75 PSI
- Max Temperature: 140°F (60°C)
- Operating Pressure Range: 5-100 PSI (0.3-7 Bar)
- Construction Materials:
- Valve Body & Tail: Glass Filled Nylon
- Internal Parts: Acetal
- Diaphragm: EPDM
- Float: HOPE (High-Density Polyethylene)
- Springs, Bolts, Nuts, Pin, Screws: 304 Stainless Steel
- O'Rings: Nitrile
- Float Type (Standard): 125mm wide float
- Mounting Positions: Top entry (with/without extension), Side entry, Bottom entry. Mounts horizontally or vertically, above or below waterline.
- Water Level Differential: 20-60mm (3/4" - 2 1/2") (increases with water inlet pressure).
- Overall Valve Dimensions (Approx.): 3 1/2" (88mm) width, 5 1/4" (134mm) body length.
- Corrosion-Resistant Construction: Made from durable materials for longevity in harsh environments.
- High Flow Design: Delivers significant flow rates for efficient filling.
- Versatile Mounting: Can be installed in top, bottom, or side entry positions, above or below water.
- Minimizes Water Hammer: Shuts down slowly to prevent plumbing shock.
- Tool-Free Adjustment: Float position is easily adjustable without the need for tools.
- Integrated Shut-Off: Features a switch to lock the valve in an off position.
- Frostpro Compatible: Has a port to connect an anti-freeze device (Frostpro).
- Proven Mechanism: Utilizes a reliable pilot valve and main diaphragm valve system.
