Tommy RO 5HP Vertical Pump

(0)No Reviews yet
SKU: E-SE-BP-7501

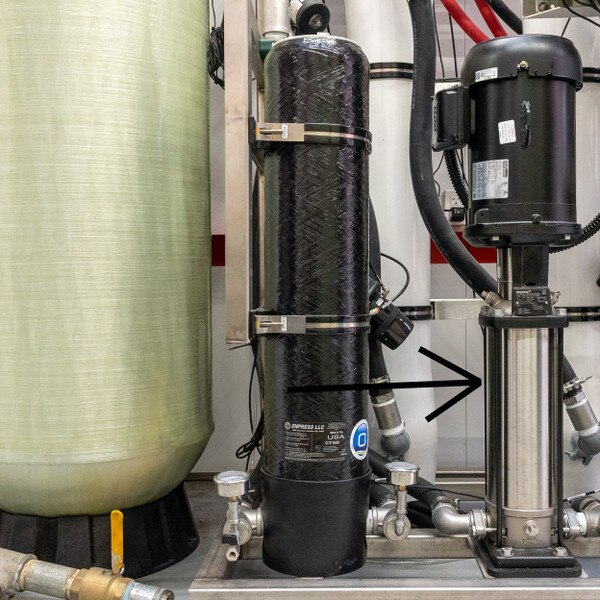

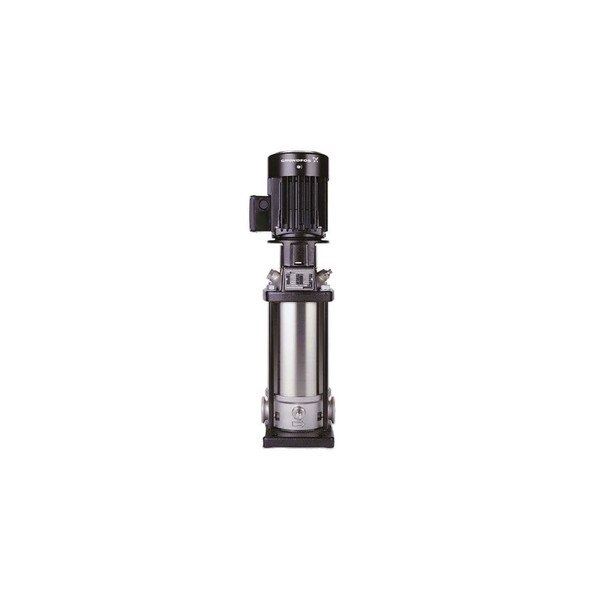

This vertical centrifugal pump is used in the Tommy RO System in the backroom of the wash tunnel. This pump is a vertical multistage pump and WEG motor that has a 5HP power rating and is a three-phase pump. It helps circulate the water from the carbon tank and sediment filter to the repressurization pump. It has 1-1/4" connections with a flexiclamp connection style and SIC bearing material. The motor is made of cast iron while the outer housing of the pump is made of stainless steel. The motor is totally enclosed, fan cooled, and has a 182TC frame size. It runs at a speed of 3,461 RPM and has a flow rate of 30.4 GPM. This pump is made for water only applications and features the inlet and outlet ports on the same level for a compact and efficient design.
  • Horsepower: 5 HP
  • # of Phases: 3 Phase
  • # of Poles: 2 Pole
  • Flow Rate: 30.4 GPM
  • Connection Size: 1-1/4"
  • Frequency: 60 Hz
  • Voltage: 230/460
  • Max Pressure: 363 PSI
  • # of Stages: 14
  • Service Factor: 1.15
  • Speed: 3,461 RPM
  • Liquid Temp. Range: -4F-248F
  • Motor Material: Cast Iron
  • Housing Material: Stainless Steel
  • Vertical Mounted Pump
  • Single Shaft Seal Arrangement
  • Water Liquid Pump
  • NEMA Premium
  • IE3 Efficiency
  • IP55 Protection
  • Class F Insulation
