Drying Hugger Air Retract Kit

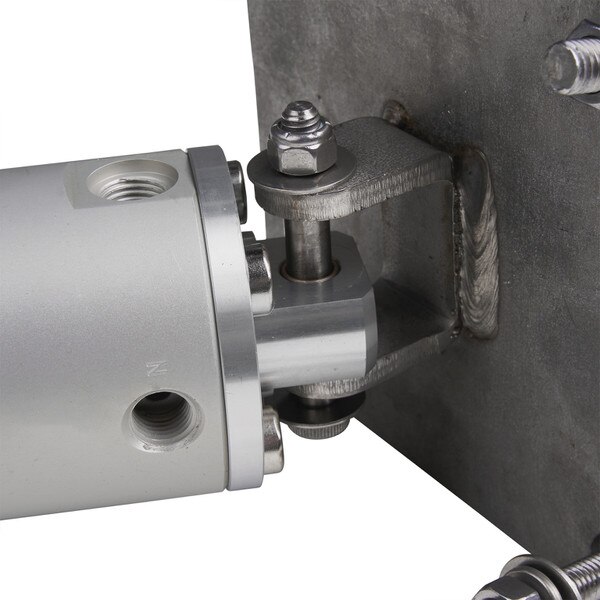

The E-B2021-A is a kit designed to automate the retraction of drying huggers (E-B2009-NC-A) in Tommy Car Wash systems. This air-powered system allows the huggers to move away from the vehicle when not needed, preventing potential damage and ensuring smoother operation. This kit includes an air cylinder, mounting hardware, and necessary pneumatic fittings to integrate with the existing air system in the car wash. Automatic retraction improves efficiency, reduces wear and tear on the huggers, and contributes to a safer wash environment.
Included in This Kit:

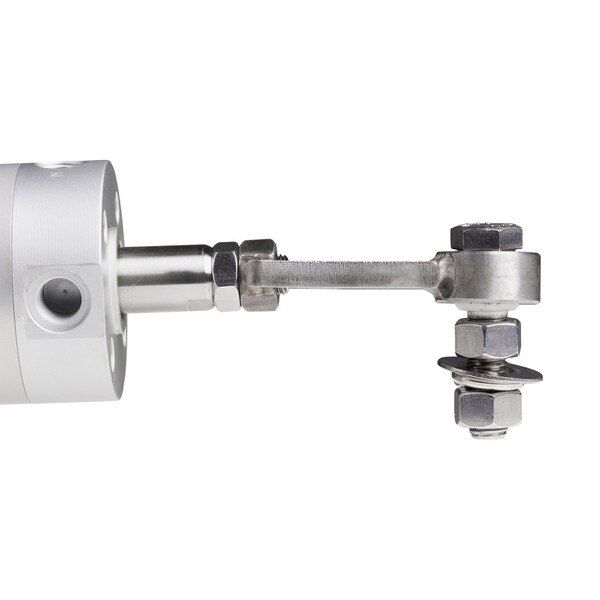

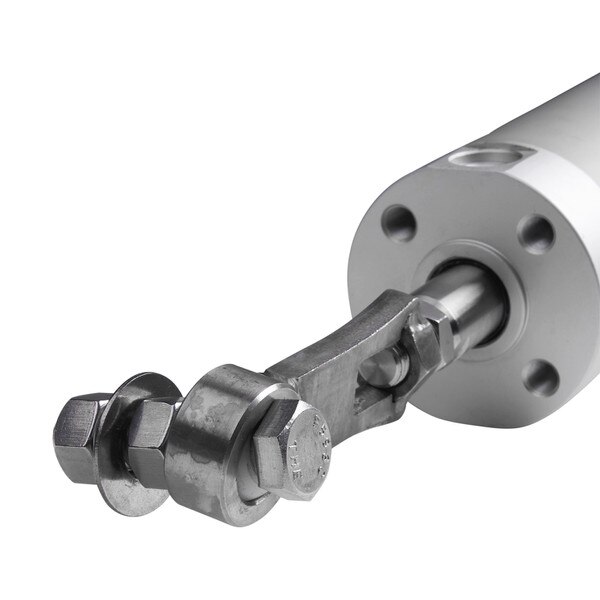

- (1) Replacement Air Cylinder for Electric All in One Combo (P-M2213)

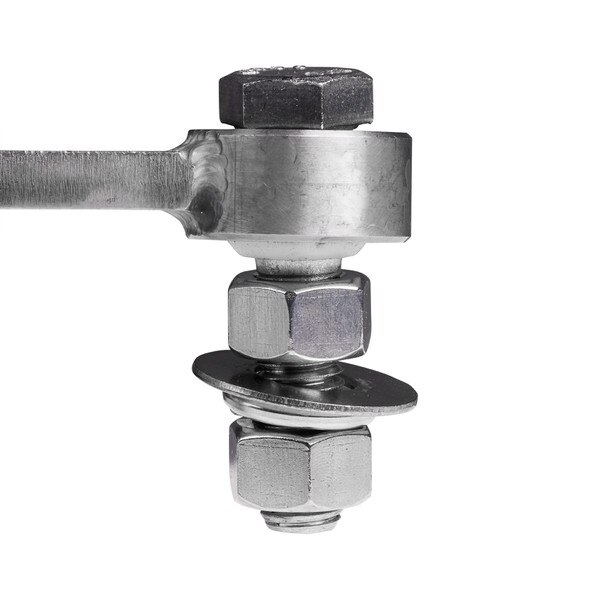

- (1) Rod End for Air Cylinder (P-C2041)
- (1) 1/2"-13 X 2-1/4" Grade 18-8 Hex Cap Screw, SS (P-SS-1049)

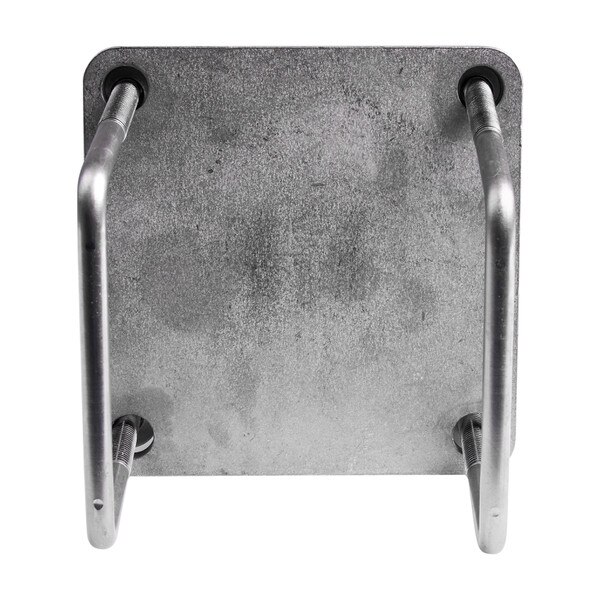

- (1) Rear Mounting Plate (P-M2221)
- (2) 3/8" X 4" X 5" U-Bolt (P-INS-2036)
- (4) 3/8"-16 18-8 Finished Hex Nut, SS (P-SS-1044)
- (6) 3/8" 18-8 Small OD Flat Washer, SS (P-SS-1043)
- (4) 3/8" Split Lock Washer (P-M2024)
- (1) 1/2" 18-8 Flat Washer, SS (P-C2288)
- (1) 5/16"-18 Grade 18-8 Nylon Insert Lock Nut, SS (P-SS-1063)
- (1) 1/2" Lock Washer, SS (SS-1084)
- (2) 1/2"-13 Nex Nut (P-INS-2023)
- (1) 3/8" Shoulder X 2-1/4" X 5/16"-18 SS Socket Shoulder Bolt (P-SS-1221)
- Application: Automates the retraction of drying huggers (drying brushes)
- Prevents damage to vehicles and huggers
- Improves operational efficiency
- Reduces wear and tear
