Stainless 2-1/2" Bore Drying Hugger Brush Retract Air Cylinder Replacement

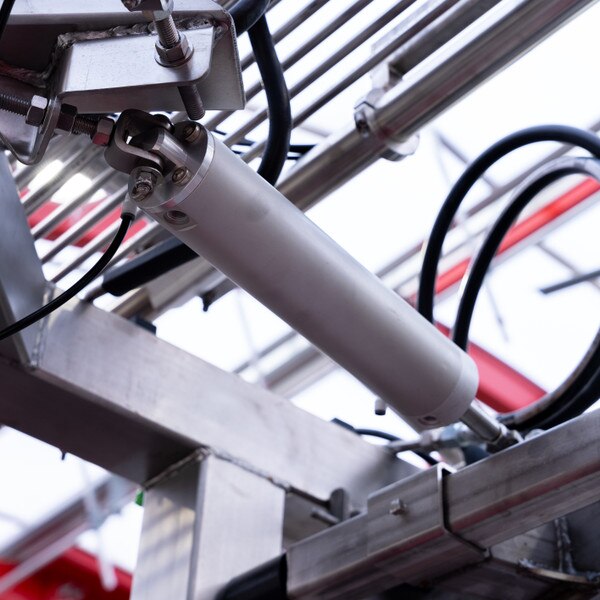

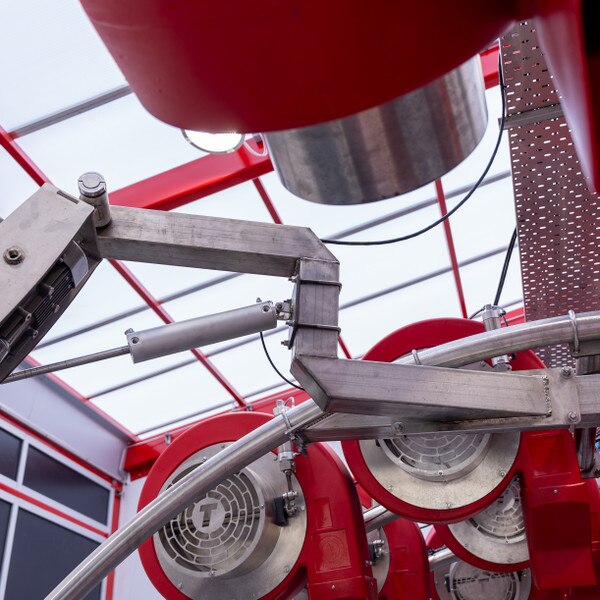

The Drying Hugger Brush Retract Air Cylinder is a critical pneumatic component for controlling the movement of your Drying Hugger brushes. It acts as the primary actuator for the retracting motion, ensuring consistent and reliable brush performance during the wash cycle.

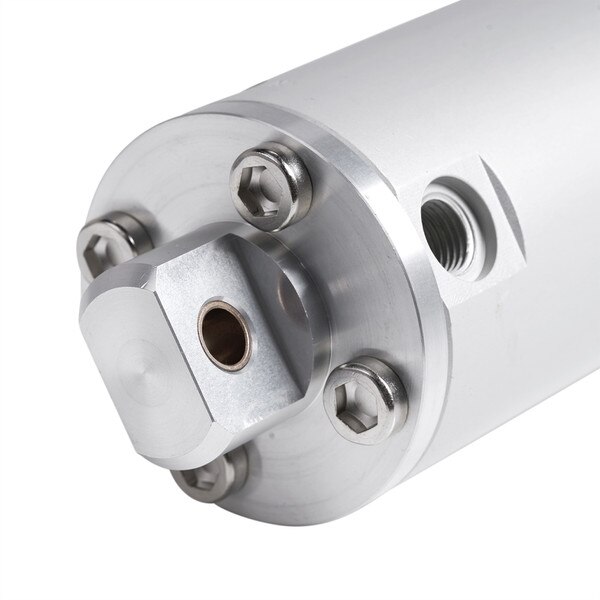

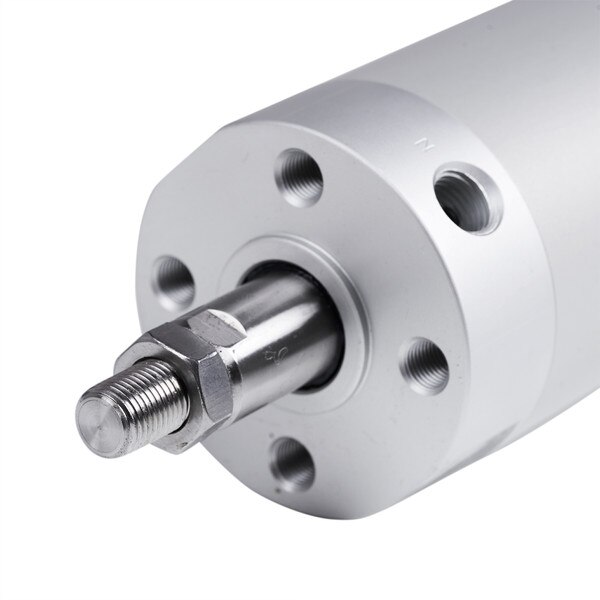

Constructed from durable stainless steel, this air cylinder offers exceptional resistance to rust and corrosion, making it ideal for the high-moisture, chemical-rich environment of the wash tunnel. It features a 2-1/2" bore size and a 1" cylinder stroke, operating efficiently within a pressure range of 8-145 PSI. The cylinder is built for secure mounting, with a 3/8" mounting hole on one end for a clevis connection and a 5/8" diameter shaft on the other. Please note that this is the air cylinder only. The complete Wrap Arm Retract Control Kit (E-M2033-A), which includes this cylinder along with an exhaust valve, connecting rods, a clevis bracket, and all necessary hardware, is available separately.
- Product Type: Air Cylinder
- Application: Drying Hugger Brush Retract System
- Material: Stainless Steel
- Bore Size: 2-1/2"
- Cylinder Stroke: 1"
- Length: 21-1/4"
- Mounting Hole (front): 3/8"
- Shaft Diameter (rear): 5/8"
- Operating Pressure Range: 8-145 PSI
- Proof Pressure: 215 PSI
- Operation Speed: Up to 1,000 MM/S
- Temp. Range: 14°F to 140°F
- Corrosion-Resistant: Made from durable stainless steel.
- Precise Control: Designed for the specific retractable motion of Hugger brushes.
- Reliable Performance: Operates within a wide range of pressures and temperatures.
- Direct Replacement: A direct-fit component for your existing system.
