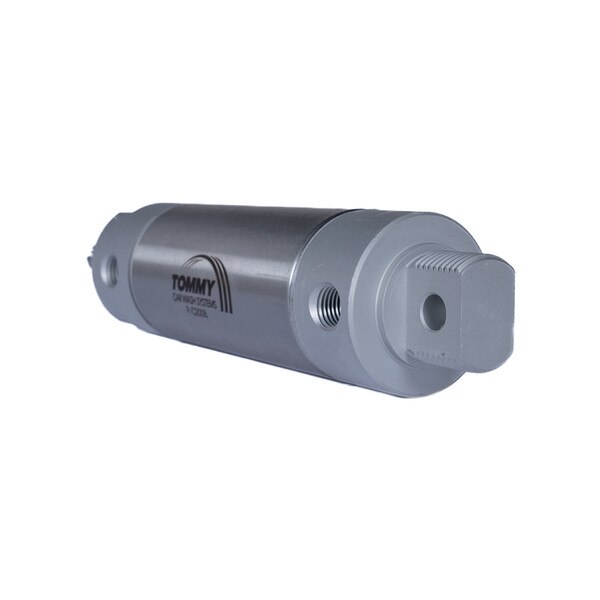

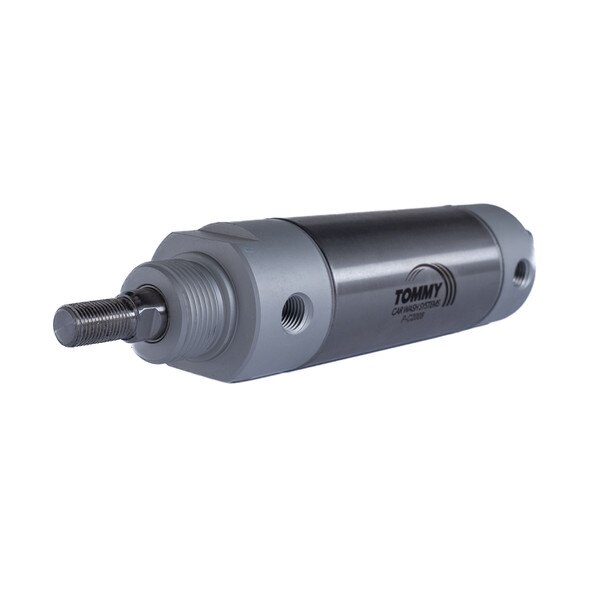

Air Cylinder 2" Bore Size

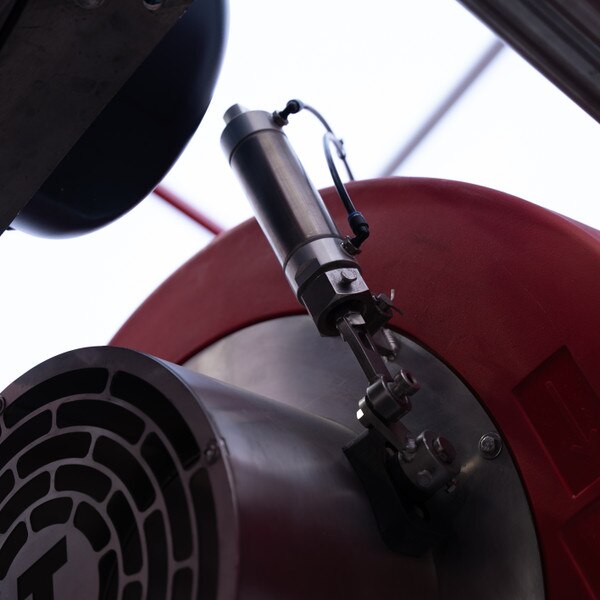

The 2" Bore Size Air Cylinder is a versatile and essential pneumatic component for a wide range of wash tunnel applications. This durable cylinder is used for critical functions such as the Roller Up, Controls Forks, Swirling Side Blaster, Blower Air Gate, and Flipping Wheel Blaster, ensuring reliable mechanical movement.
Constructed from stainless steel, this air cylinder is built to withstand the demanding, corrosive environment of a car wash. Its high-performance design includes a wear ring to extend the life of the seals and a bronze rod bushing for enhanced durability and smooth operation. With a wide operating pressure range of 8-250 PSI and a double-acting, single-rod design, this cylinder provides powerful and precise force for efficient operation.
- Model: NCME200-0300-DUW01869
- Series: NCM
- Product Type: Air Cylinder / Pneumatic Actuator
- Bore Size: 2"
- Rod Size: 5/8"
- Stroke: 3"
- Design: Double-Acting, Single Rod
- Material: Stainless Steel
- Fluid: Air
- Operating Pressure Range: 8-250 PSI
- Temperature Range: 40-140°F
- Lubrication: Not Required
- Mounting: B, C, E
- Versatile Application: Used across multiple critical functions in the wash tunnel.
- Durable Construction: Made from corrosion-resistant stainless steel.
- Extended Lifespan: Features a wear ring and bronze rod bushing for added durability.
- Reliable Performance: Double-acting design ensures consistent and efficient operation.
