0-400 PSI Liquid-Filled Pressure Gauge (2-1/2" Dial, 1008A/AL)

This Ashcroft Type 1008A/AL Liquid-Filled Pressure Gauge is a crucial instrument for monitoring lower pressure stages within the car wash backroom equipment, including the manifold, filter, and feed lines of the All-In-One Pump Station, Water Treatment Center, and Tommy RO System.

Key Features for Wash Environment:

• Pressure Range: Measures 0 to 400 PSI with 10 PSI increments, suitable for monitoring feed, pre-filter, and low-pressure regulated lines.
• Vibration and Shock Resistance: The gauge is Glycerin-filled to dampen needle movement and incorporates the patented PowerFlex™ movement, which significantly increases resistance to shock, vibration, and pulsation compared to conventional gauges.
• Corrosion Protection: The case and ring assembly are made from Corrosion-Resistant Stainless Steel. The gauge is hermetically sealed to provide maximum protection in adverse, wet, and chemical conditions.
• Safety & Reliability: Features True Zero™ Indication, a safety feature that confirms zero pressure is being applied when the gauge reads zero. The window is made of protective Polycarbonate.

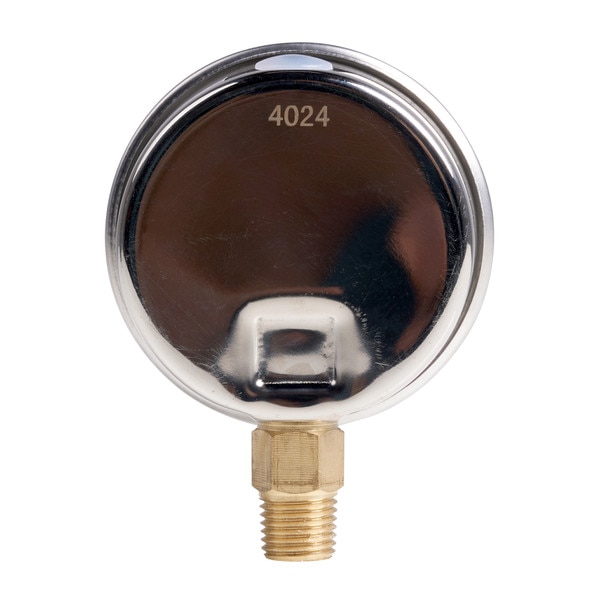

• Mounting: Utilizes a 1/4" Male NPT connection in a lower (bottom) mount configuration.
