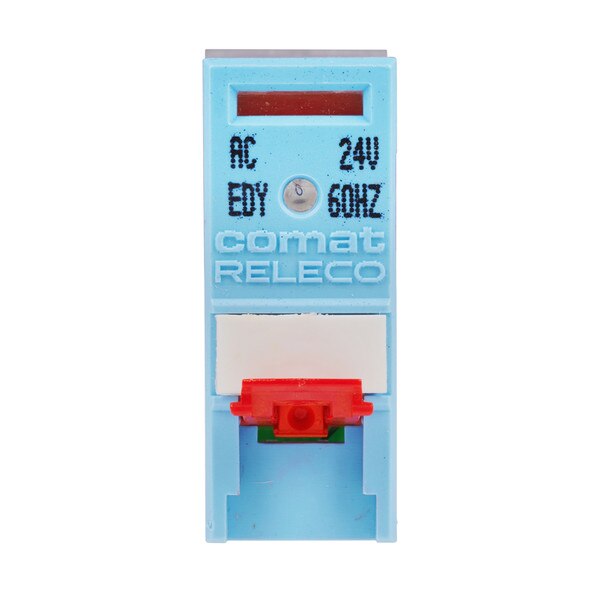

Releco C10-A1x Series 24VAC Interface and General Purpose Relay

(0)No Reviews yet
$26.52
SKU: CCS-R6652

Compact and reliable 24VAC Releco C10-A1x series plug-in interface relay, suitable for a wide range of applications, including the Vehicle Wash Rate Monitor in wash tunnels. This general-purpose relay is designed for secure electrical current handling, featuring 5 Faston .187 prongs on one end for robust connection to a compatible socket (e.g., S10, S10-P).


It provides 1 changeover contact (SPDT equivalent) with a significant contact rating of 10 A at 250 V AC-1. The relay's coil has a nominal power of 1.1 VA, with a coil resistance of 290 Ohm and a current of 45 mA at 24VAC. It offers excellent insulation, with 5 kV between contact and coil and 1 GΩ insulation resistance at 500 V.


The CCS-R6652 is built to withstand diverse industrial conditions, operating reliably within a wide ambient temperature range of -40°F to 158°F (-40°C to 70°C). It boasts a mechanical life of 10 million operations for AC circuits, ensuring long-term performance.

  • Series: Releco C10-A1x Interface Relays (Pluggable)
  • Voltage Rating: 24 VAC
  • Applications: Interface, General Purpose, Vehicle Wash Rate Monitor
  • Contact Configuration: 1 Changeover Contact (SPDT equivalent)
  • Contact Type: Faston .187 plug-in (5 prongs)
  • Contact Material: Standard AgNi
  • Contact Rating (Max Load): 10 A / 250 V AC-1; 0.5 A / 110 V DC-1; 10 A / 30 V DC-1
  • Recommended Minimum Contact Load: 10 mA / 10 V (Code 0.5)
  • Switching Voltage Max: 250 V
  • Switch-on Current Max (20 ms): 30 A (120 A for Code 5 material)
  • Nominal Coil Power: 1.1 VA (AC) / 0.7 W (DC)
  • Coil Resistance (24VAC): 290 Ohm
  • Coil Current (24VAC): 45 mA
  • Pick-up Voltage: ≤ 0.8 x UN
  • Release Voltage: ≥ 0.1 x UN
  • Insulation:
    • Contact Open: 1000 V (rms / 1 min)
    • Contact/Coil: 5 kV (rms / 1 min)
    • Resistance at 500 V: ≥ 1 GΩ
    • IEC 61810-1: 4 kV
  • Operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
  • Storage Temperature Range: -40°F to 176°F (-40°C to 80°C, no ice)
  • Pick-up Time: 10 ms
  • Release Time: 5 ms
  • Mechanical Life: 10 Million operations (AC) / 20 Million operations (DC)
  • Switching Frequency (at rated load): ≤ 1200 / hour
  • Dimensions (Approximate): 1.13" H x 0.49" W x 1.39" D (28.8mm H x 12.5mm W x 35.4mm D)
  • Net Weight: 21 g (approx. 0.046 lbs)
  • Compatible Sockets: S10, S10-P (sold separately)
  • Versatile Application: Ideal for interface and general-purpose switching in control systems, including vehicle wash rate monitors.
  • Robust 24VAC Coil: Ensures reliable operation with common industrial control voltages.
  • High Contact Rating: Capable of switching loads up to 10 Amps, suitable for various control circuits.
  • Compact Plug-in Design: Features 5 Faston prongs for easy, secure, and tool-free installation into compatible sockets.
  • Wide Operating Temperature: Performs consistently across a broad temperature range (-40°F to 158°F).
  • Excellent Insulation: Provides high dielectric strength for safety and noise immunity.
  • Long Mechanical Life: Designed for millions of operations, ensuring durability and extended service life.
