1/4" MNPT x 1/4" Push-To-Connect 90° Elbow (Bio-Polyamide, 230 PSI)

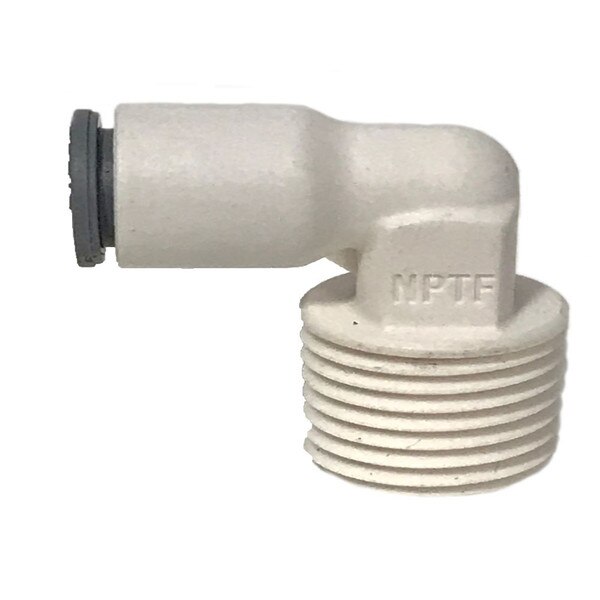

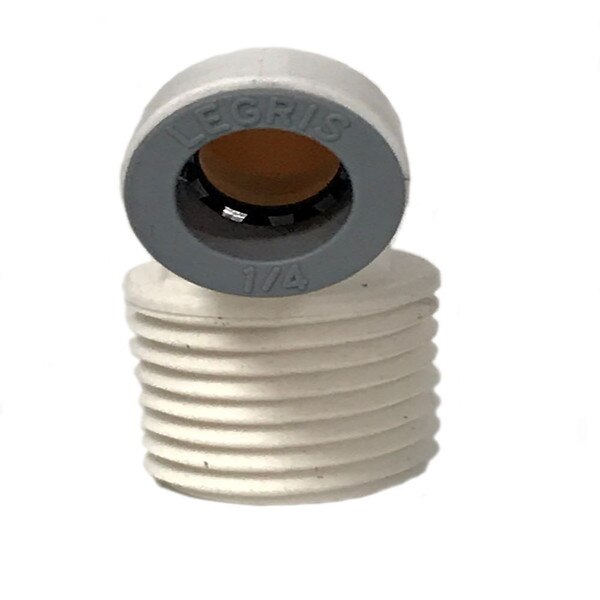

The 1/4" MNPT x 1/4" Quick Connect Elbow is a compact and efficient 90-degree fitting designed for fluid lines where space is a premium or a change in direction is required. This push-to-connect elbow provides a secure connection between a 1/4" O.D. tube and a 1/4" Male NPT threaded pipe.
Part of an "eco-designed" series, this fitting is primarily constructed from bio-based polyamide material, promoting environmental responsibility without compromising performance. It includes an EPDM D-Seal and a Stainless Steel Gripping Ring to ensure a robust, leak-proof seal. The white color offers a clean aesthetic and standard appearance.
This innovative push-to-connect design prevents fluid contamination, allowing for full flow without the need for additional locking clips. It is rated for a maximum pressure of 230 PSI and operates reliably across a broad temperature range from -14°F to 200°F.
The P-AIR-2150 elbow is highly versatile and commonly used in applications involving water, potable liquids, RO systems, drinking dispensers, and water filtration systems, where its reliability and easy installation are highly valued. These fittings are sold in quantities of 10.
- Product Type: 90 Degree Elbow Tube Fitting / Push-To-Connect
- Connection 1: 1/4" Push-To-Connect (for tube)
- Connection 2: 1/4" Male NPT
- Body Material: Bio-based Polyamide
- Seal Material: EPDM D-Seal
- Gripping Ring Material: Stainless Steel
- Color: White
- Max. Pressure: 230 PSI
- Temperature Range: -14°F - 200°F
- Angle: 90 Degree
- Minimum Order Quantity (MOQ): 10
- Applications: Water, Potable Liquids, RO Systems, Drinking Dispensers, Water Filtration Systems.
- 90-Degree Elbow: Ideal for routing tubing in confined spaces or changing direction.
- Push-To-Connect Technology: Enables fast, tool-free, and secure tube connections.
- Eco-Designed Construction: Features bio-based polyamide for environmental consideration.
- Leak-Proof & Contamination-Free: Ensures fluid integrity and prevents leaks.
- Full Flow Design: Maintains unrestricted fluid passage for optimal performance.
- High Performance: Rated for 230 PSI and a wide temperature range (-14°F to 200°F).
- Versatile Applications: Suitable for water, RO, and potable liquid systems.
