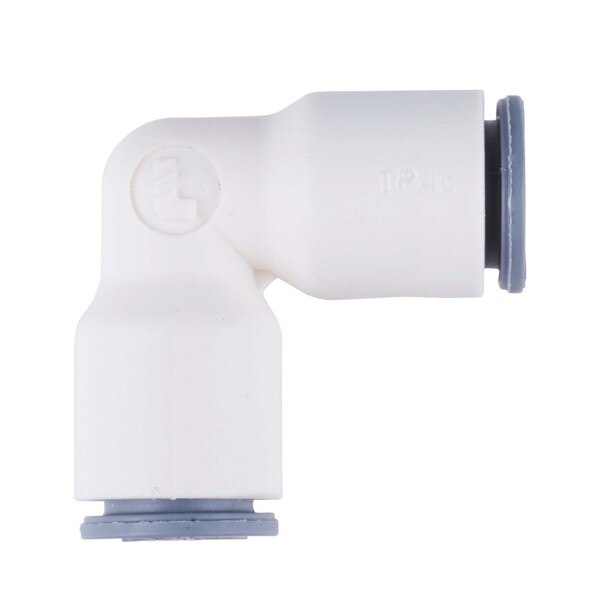

1/4" Push-To-Connect 90 Degree Elbow Union

The 1/4" Push-to-Connect Union Elbow is a high-performance, eco-designed fitting for liquid and beverage applications. Part of the Parker/Legris LIQUIfit series, this 90-degree elbow is designed to create a secure and reliable connection without the need for tools or threads.

This union elbow features a push-to-connect mechanism on both ends, allowing for a quick and easy connection of two 1/4" O.D. tubes. The internal stainless steel gripping ring and EPDM D-seal ensure a perfect, leak-proof seal that can withstand a maximum pressure of 230 PSI and a temperature range of 35°F to 200°F. The design allows for full flow, meaning no locking clip is required, which simplifies installation and prevents fluid contamination.

Constructed from bio-based polyamide material, the fitting is highly durable and chemically resistant. It is also compliant with multiple standards, including FDA, NSF 51 & 61, and AB1953 Low Lead, making it suitable for a wide range of sensitive applications such as RO systems, drinking dispensers, and water filtration systems.

This fitting is an excellent choice for any system that requires a reliable, quick, and environmentally-friendly connection for 1/4" tubing.
