Wall Mount Pump Mounting Bracket for 3HP All-In-One Pumps

(0)No Reviews yet
SKU: P-S-0117

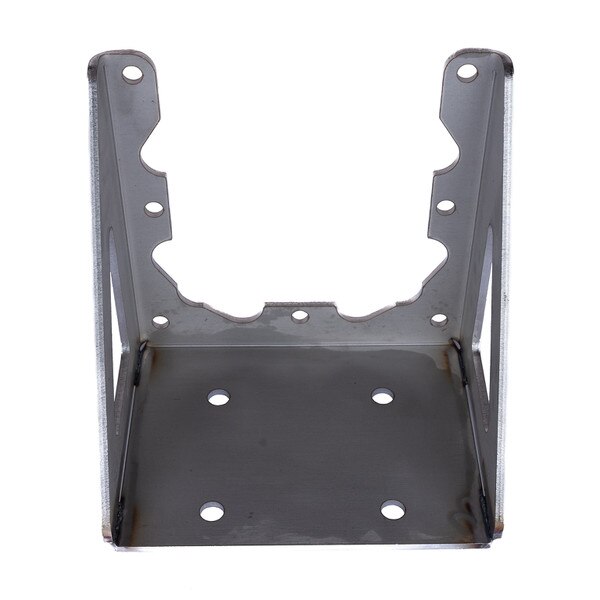

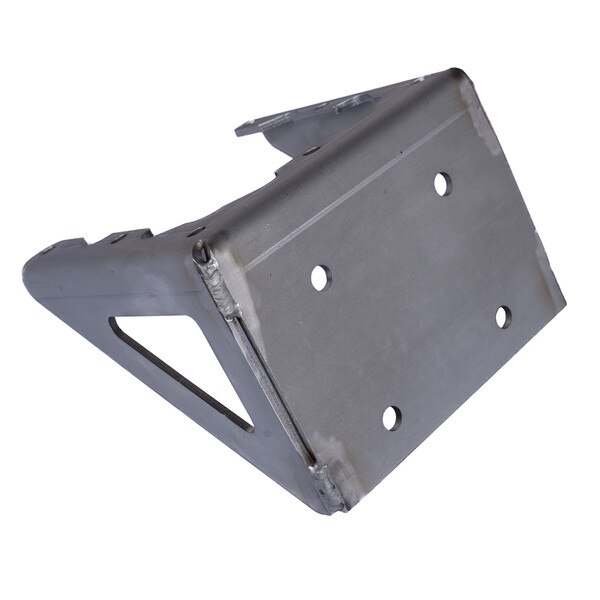

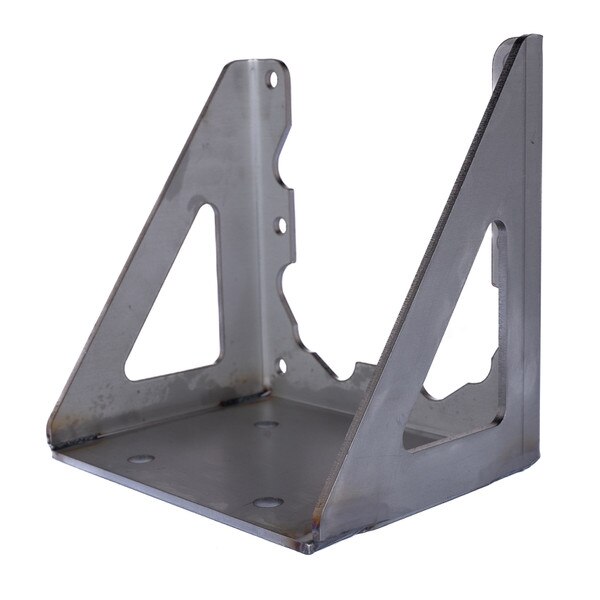

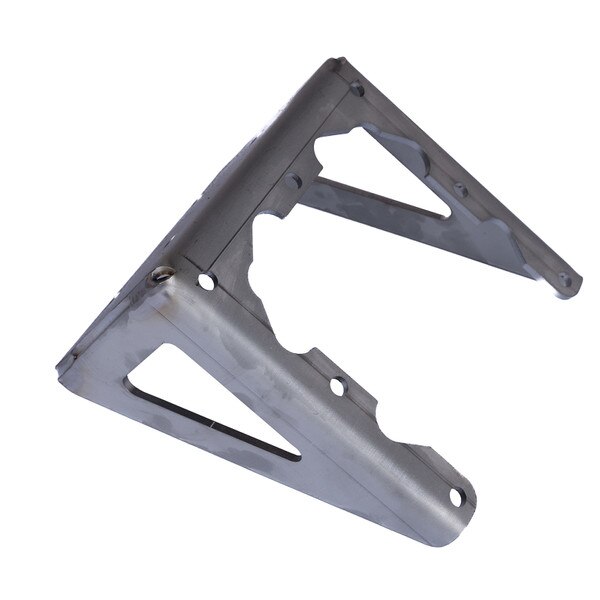

This mounting bracket is used to mount the 3HP pump to the back of the frame on the All-In-One Pumping Station. The mounting bracket has a 6" long side that is mounted onto the frame and an 8" long side that mounts onto the 3HP pump. The 6" long side of the bracket has four mounting holes that are 1/2" in diameter while the 8" long side of the bracket has seven mounting holes that are 3/8" in diameter for the pump to mount on. This bracket is designed at a 90-degree angle and specifically for wall mounting. It is made of stainless steel material.

  • Wall Mounting Holes Diameter: 1/2" (4X)
  • Pump Mounting Holes Diameter: 3/8" (7X)
  • Bracket Angle: 90 Degrees
  • Material: Stainless Steel
  • Dimensions: 8" X 8" X 6"
