Tire Shine Double Tooth 1-1/8" ID Sprocket

(0)No Reviews yet
$58.00
SKU: P-TB-281

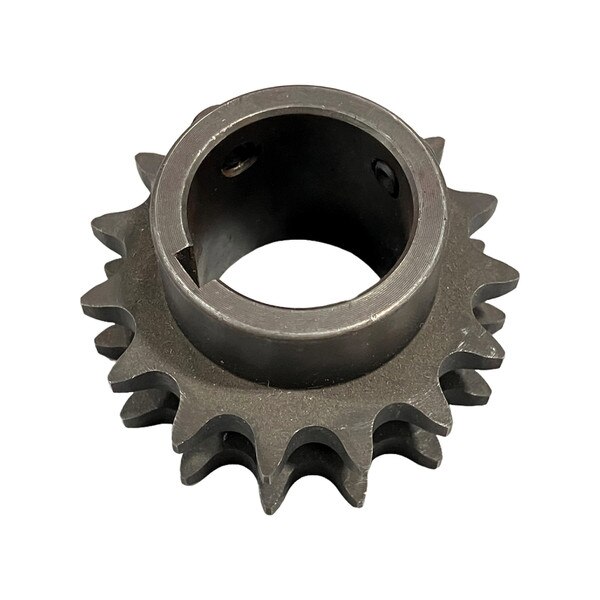

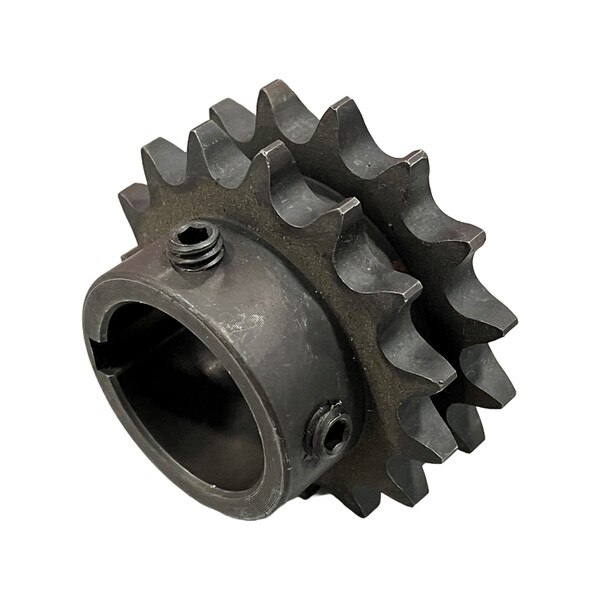

This sprocket is used in the Tire Shine Applicator located in the Drying Room of the wash tunnel. The sprocket has a double-tooth design with 15 teeth in each row with 1/4" space between rows. The sprocket connects to the stub shaft to help rotate the brush. This sprocket has a 1-1/8" inside diameter and 1-5/8" outside diameter. It is 1-1/2" tall and has a 1/4" wide space for the keyway. It is made of steel material.

  • Inside Diameter: 1-1/8"
  • Outside Diameter: 1-5/8"
  • # of Teeth: 15 Teeth in each row
  • Distance Between Teeth Rows: 1/4"
  • Height: 1-1/2"
  • Keyway Slot Width: 1/4"
  • Material: Steel
