Solaronics Heated Blower Burner Control Box

(0)No Reviews yet
$535.91
SKU: P-HB-2002

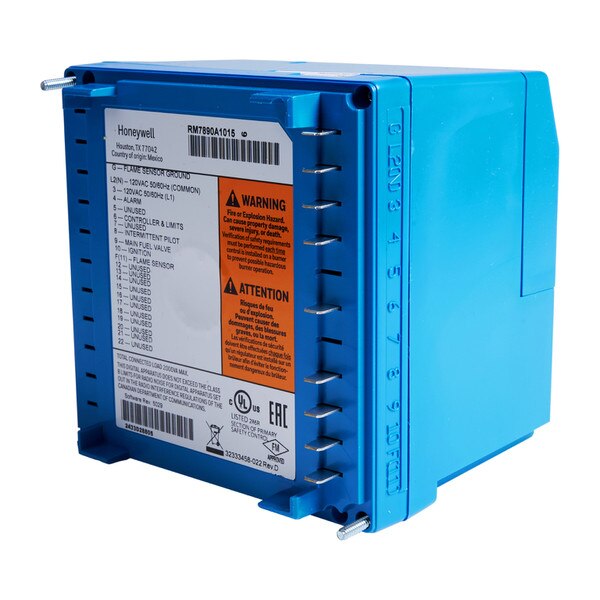

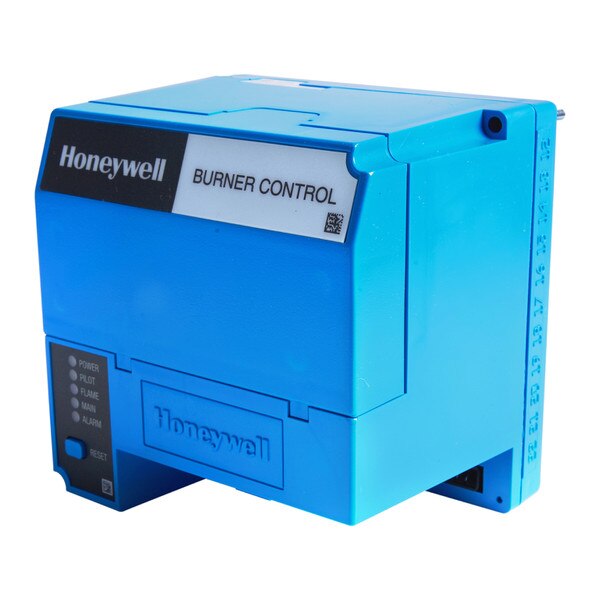

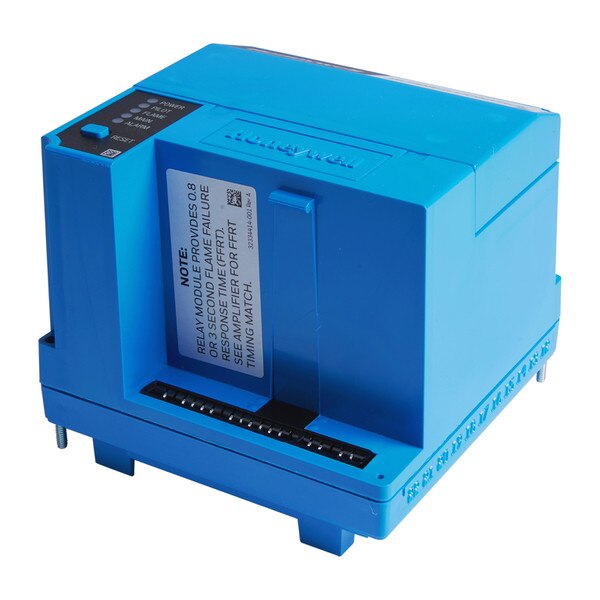

This burner control box is used with the Solaronics Heated Blowers at the exit of the wash tunnel in the Blower Room. The control box helps regulate and control the functionality of the Heated Blower. Some of the controls this box is capable of include: automatic burning sequencing, flame supervision, system status indication, system diagnostics, and troubleshooting. This control box will need a subbase and amplifier for operation which are sold separately. It has a voltage rating of 120 VAC and has On-Off primary controls.

  • Voltage Rating: 120 VAC
  • Flame Establishing Period: 4 Sec. or 10 Sec.
  • Dimensions: 7-1/4" X 7" X 5-1/2"
  • Used with Automatically Fired Gas, Oil, or Combination Fuel Single Burner Applications
  • On-Off Timing
  • Power LED Blinks Fault Code on Lockout
  • Five LEDs Provide Sequency Information
  • Nonvolatile Memory
  • CSA Approved
  • Interchangeable Plug-In Flame Amplifiers
