Banner SMB3018SC Adjustable Sensor Mounting Bracket - 18mm

(0)No Reviews yet
$18.78
SKU: CCS-53952

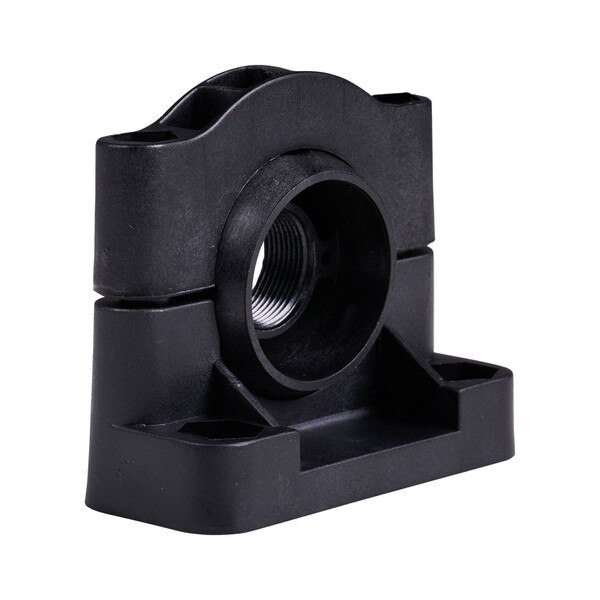

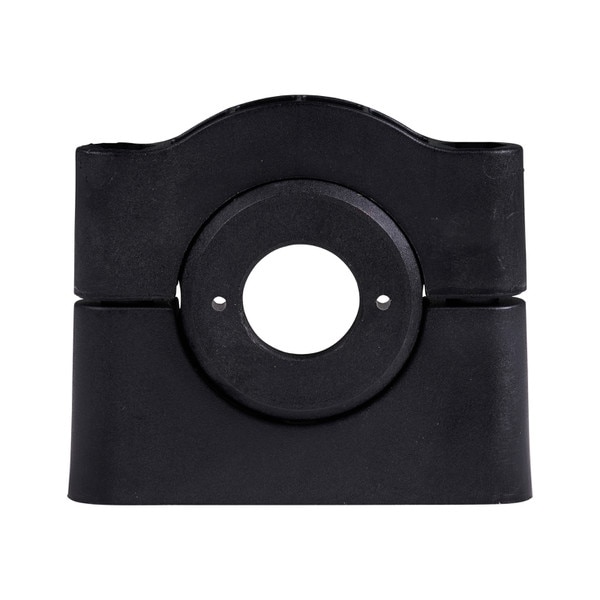

Banner SMB3018SC Mounting Bracket Assembly, specifically designed for securely mounting 18mm diameter sensors within industrial applications, including various Banner M18, S18, T18, S18U, Q45UR S18C2, Q45UR M18C2, and T18U series sensors. This bracket provides a stable and adjustable mounting solution, crucial for precise sensor positioning.


Constructed from a combination of durable black reinforced thermoplastic polyester and stainless steel, this bracket offers excellent longevity and resistance to harsh environments. It features a swivel mount design with an adjustable ball, allowing for a wide range of articulation to position sensors at the optimal angle. The assembly includes all necessary hardware for installation and features 5 mounting holes.

  • Product Type: Sensor Mounting Bracket Assembly
  • Brand: Banner
  • Model Number: SMB3018SC
  • Compatible Sensor Diameter: 18 mm
  • Compatible Sensor Series: M18/S18/T18, S18U, Q45UR S18C2, Q45UR M18C2, T18U
  • Material: Reinforced Thermoplastic Polyester, Stainless Steel
  • Color: Black
  • Height: 2.295 inches
  • Width: 2.62 inches
  • Depth: 1.14 inches
  • Span: 2 inches
  • Number of Holes: 5
  • Mounting Type: Swivel Mount, Adjustable Ball
  • Hardware: Included
  • Country of Origin: USA (as per IDW Country of Origin)
  • Precise Sensor Mounting: Designed for secure and accurate positioning of 18mm diameter Banner sensors.
  • Adjustable Angle: Features a swivel mount with an adjustable ball for wide articulation and optimal sensor alignment.
  • Durable Construction: Made from reinforced thermoplastic polyester and stainless steel for resilience in demanding environments.
  • Wide Compatibility: Supports a broad range of Banner 18mm sensor series.
  • Easy Installation: Includes all necessary mounting hardware for convenient setup.
