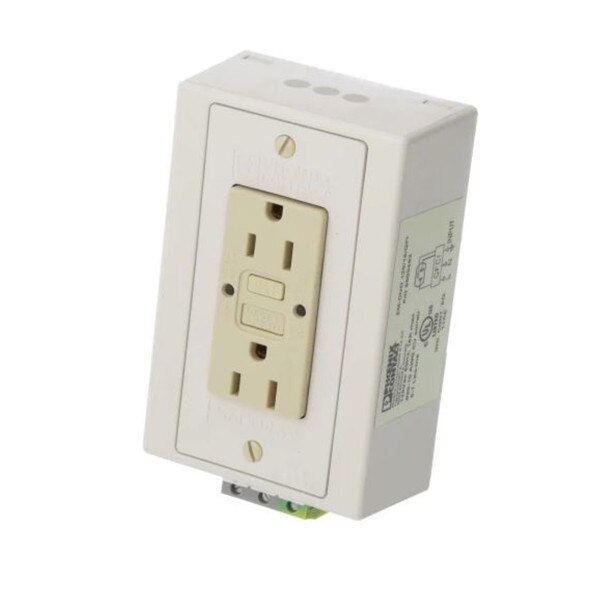

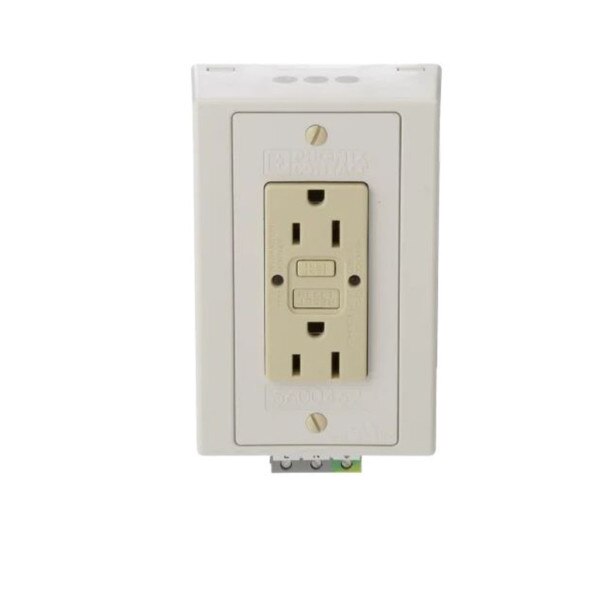

Power Service Dual Outlet Socket 120VAC
This power outlet can be used in multiple applications of the wash site including in the Motor Control Center in the backroom. This socket has two outlets that allow for a voltage rating of 120 VAC. It has four poles, six contacts, and is designed to be used with wire size 10 AWG. It can be mounted on DIN rail and used as a double socket connector. This outlet is made of polycarbonate and ABS blend material.
- # of Outlets: 2
- # of Poles: 4
- # of Contacts: 6
- Current Rating: 15 A
- Wire Size: 10 AWG
- Voltage Rating: 120 VAC
- Operating Temp. Range: -4F-140F
- Material: Polycarbonate and ABS Blend
- Dimensions: 5-1/4" X 3-1/4" X 2"
- Dual Outlet Design

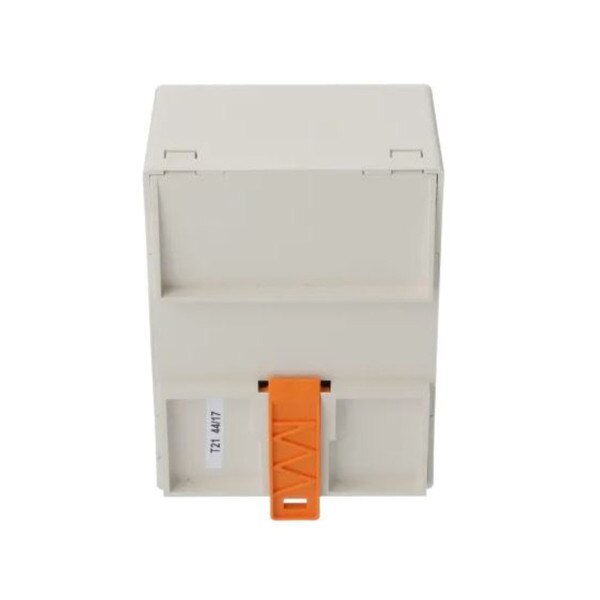

- DIN Rail Mountable
- Socket Contact Type

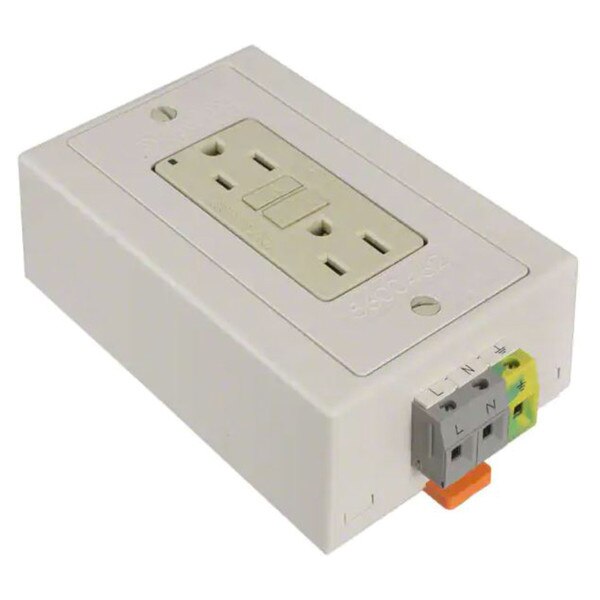

- Screw Termination
- Ground Fault Circuit Interruption
- IP20 Protection
- UL Listed
18 Month Warranty
*Please review our warranty policy here for additional details.
