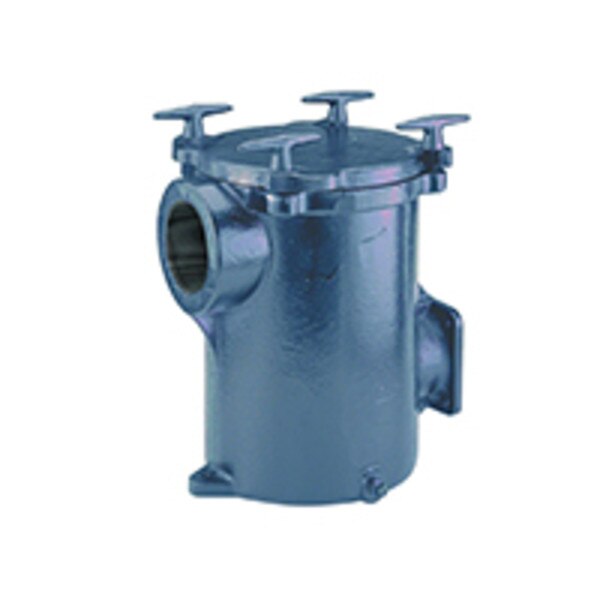

8" Cast Iron Trap with Basket (Hair and Lint Strainer)
SKU: PURCLEAN-PKG-98
8-inch Cast Iron Hair and Lint Strainer Trap designed for use with C, CC, and D Series Pumps. This heavy-duty unit includes a removable internal basket to filter debris, helping to protect pump components
This Cast Iron Trap with Basket is a crucial pre-filtration component installed on the suction side of industrial pumps. Its primary function is to capture hair, lint, and other large debris before they enter and damage the pump's impeller or internal workings. This is a common requirement for pumps handling water that may contain fibers or solids, such such as those found in wash applications.
Key Construction and Application:
- Material: Constructed from heavy-duty Cast Iron, ensuring exceptional durability, strength, and resistance to wear in demanding environments.
- Function: The trap contains a removable basket that strains solid materials from the fluid flow. Regular cleaning of this basket is key to maintaining pump efficiency and longevity.
- Pump Compatibility: Specifically designed to be used with C, CC, and D Series Pumps.
- Suction Connection: Features a large 3" NPT (National Pipe Taper) port for high-volume flow connections.
- Assembly: This trap is intended to be paired with the PURCLEAN-DHJ3-170MS3 to form a complete pumping assembly.
The heavy carton weight of 40 lbs reflects the robust, industrial-grade construction of the cast iron unit.
- Product Type: Hair and Lint Strainer / Trap with Basket
- Application: Pre-filtration on the suction side of C, CC, and D Series Pumps
- Strainer Size (Nominal): 8"
- Material: Cast Iron
- Internal Component: Removable Basket
- Suction Port Size: 3" NPT
- Length: 16"
- Height: 12"
- Width: 10-3/4"
- Carton Weight: 40 lbs
- Associated Part (Complete Assembly): PURCLEAN-DHJ3-170MS3
- Pump Protection: Effectively filters hair, lint, and debris to safeguard C, CC, and D Series pump internals.
- Heavy-Duty Construction: Durable Cast Iron material ensures long service life.
- Easy Maintenance: Includes a removable basket for simple cleaning and debris disposal.
- High Flow: Features a 3" NPT suction port to accommodate large flow rates.
