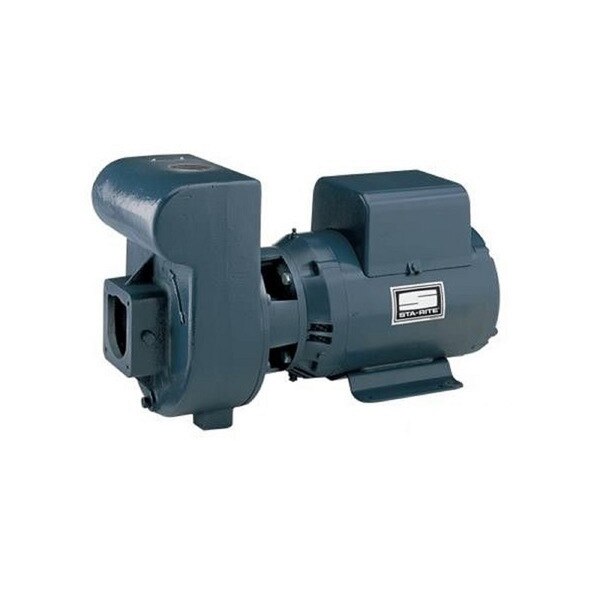

Sta-Rite DHJ3-170MS3 Reclaim 5 HP Centrifugal High Head Pump

This Sta-Rite DHJ3-170MS3 Pump is the powerhouse behind the car wash reclaim system, ensuring high-volume, pressurized delivery of reclaimed water. As a self-priming, high-head centrifugal pump, it is built to handle the demanding fluid dynamics of a reclaim system, which often involves lifting water and continuous heavy use.

Key Technical Specifications:

• Power: A robust 5 HP, 3-Phase motor (Voltage: 208−230/460 VAC) running at 3,450 RPM.
• Performance: Provides a high maximum flow rate of 140 GPM and a maximum pressure of 70 PSI. It is capable of lifting water up to 25 feet.
• Construction: Features a durable Close-Grained Cast Iron body and base for corrosion resistance and strength. The Bronze Impeller resists corrosion and wear from typical reclaim water impurities.
• Motor Design: The heavy-duty motor is designed for continuous operation and includes a capacitor start, which prevents electrical interference with other equipment.
• Connections: Equipped with a 2−1/2" inlet port and a 2" outlet port. The suction port requires a 72 PKG flange.
• Serviceability: Designed for easy service, allowing normal wearing parts to be replaced without disturbing the piping or mounting. Includes an Air Volume Control Tapping feature.

This pump is intended to be paired with the PURCLEAN-PKG-98 Cast Iron Trap for complete pre-filtration.
