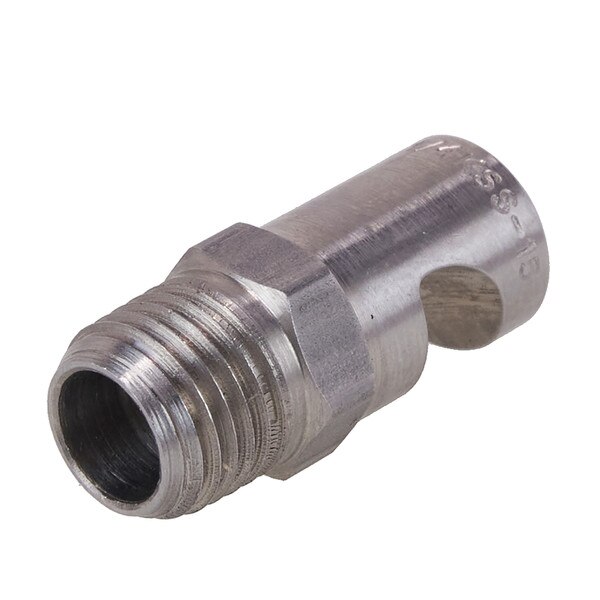

1/4" Stainless "K" Design Spray Nozzle (1/4k-SS15)

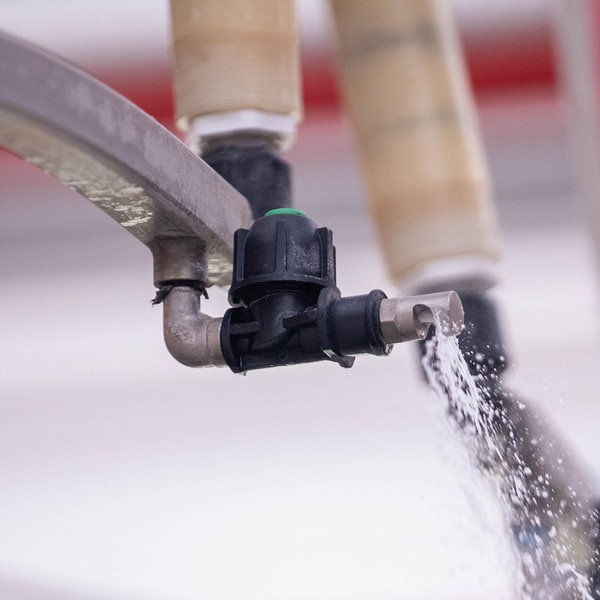

The 1/4" Stainless "K" Design Spray Nozzle is a highly effective and reliable component for various low-pressure applications within a car wash tunnel. This "K" design FloodJet nozzle is specifically used on a variety of arches, including the Rain X Arch, Turtle Wax, Drying Agent, and Clear Coat, where a wide, gentle spray is needed to evenly apply detergents and protectants.

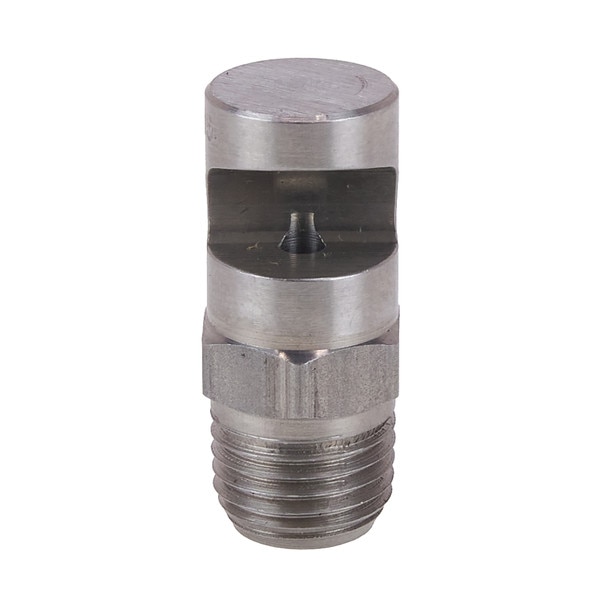

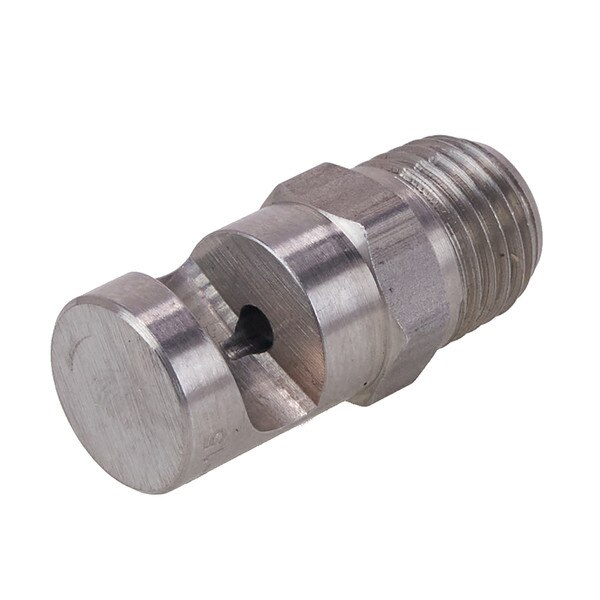

Unlike traditional nozzles, this one features a unique slotted core and an internal deflector surface that spreads out the liquid. This design creates a hollow cone spray pattern and a wide-angle, deflected flat fan spray, which is optimized for broad, uniform coverage. The anti-bearding design and maximum free passage minimize clogging, ensuring a consistent spray pattern and reliable performance with minimal maintenance.
The nozzle is constructed from durable stainless steel, which makes it highly resistant to corrosion and chemical wear, extending its lifespan in the harsh car wash environment. It is designed for horizontal mounting and has a 1/4" male threaded connection for easy installation.
With a #15 capacity size, this nozzle delivers a flow rate of 3.70 GPM at 60 PSI. Its wide 123° spray angle at this pressure provides excellent coverage, making it an ideal choice for ensuring that every part of the vehicle is evenly coated with the applied chemical.
- Product Type: FloodJet Spray Nozzle
- MPN: 1/4K-SS15 (Spraying Systems)
- Connection Size: 1/4" Male NPT
- Nozzle Type: "K" Design, FloodJet
- Spray Pattern: Wide-angle, deflected flat fan / Hollow cone
- Nozzle Capacity Size: #15
- Flow Rate: 3.70 GPM (at 60 PSI)
- Pressure Range: 10-60 PSI
- Spray Angle: 123° (at 60 PSI)
- Material: Stainless Steel
- Dimensions: 1-3/8" (or 1.75") Length, 9/16" Hex
- Application: Rain X Arch, Turtle Wax, Drying Agent, Clear Coat
- Wide, Uniform Coverage: "K" design creates a 123° spray angle for even application of detergents and protectants.
- Clog-Resistant: Slotted core and anti-bearding design minimize clogging for consistent performance.
- Durable Construction: Made from corrosion-resistant stainless steel for long-lasting use.

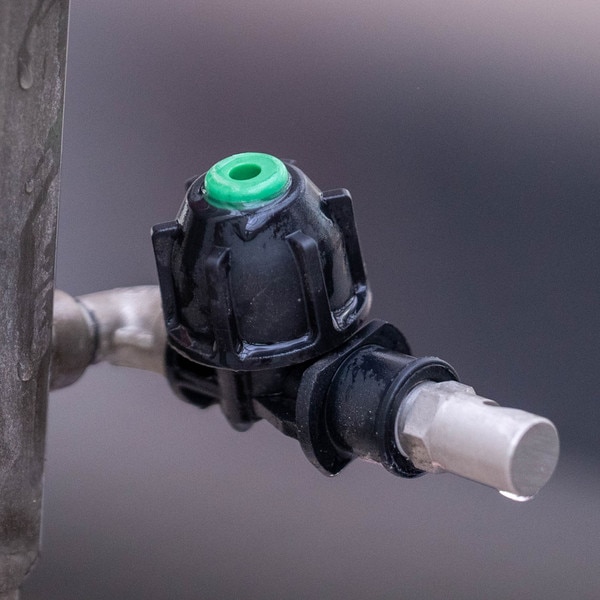

- Optimized for Horizontal Mounting: Designed for use in applications where nozzles are mounted horizontally.
- Efficient Flow: Delivers a high flow rate of 3.70 GPM at a low pressure of 60 PSI.
