Single Spiral/Double Stem Flue Brush

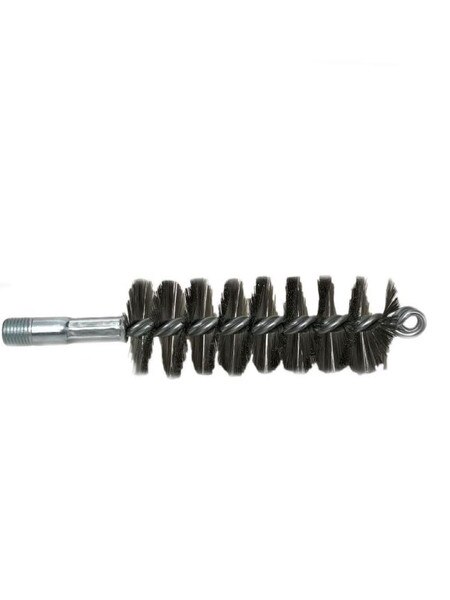

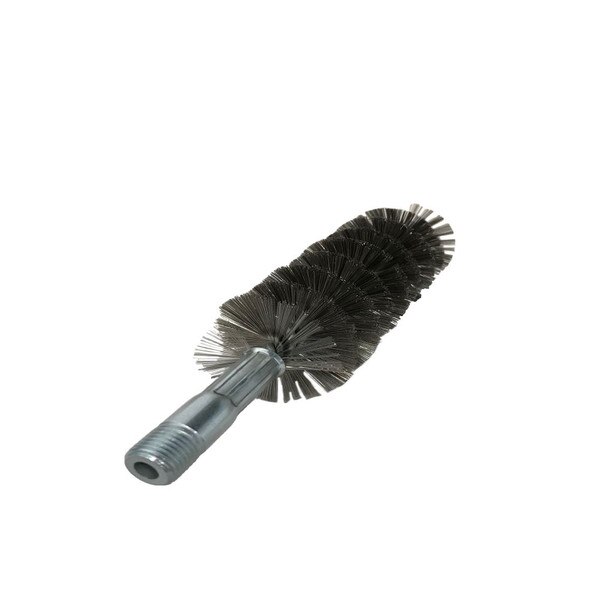

The Weiler Abrasives Single Spiral Flue Brush (MPN: 44047) is a specialized maintenance tool designed to rapidly clear clogs, debris accumulation, and blockages inside Tommy Car Wash Systems vacuum arch poles and stanchions.
In high-volume vacuum plazas, debris such as paper, plastic wrappers, leaves, and small stones frequently enter the vacuum drop lines and become lodged inside the vertical supports or overhead junction piping. Engineered specifically for central vacuum maintenance, the flue brush allows wash site technicians to clear stubborn obstructions without disassembling structural vacuum arches or damaging internal piping. Routine use of this cleanout tool restores optimal airflow across all self-serve vacuum stations, prevents motor strain on central turbine units, and eliminates suction loss at the hose drops.
Key features and benefits include:
- Designed for Central Vacuum Systems: Reaches deep into vertical vacuum arch poles and overhead drop lines where standard hose snakes cannot reach.
- Heavy-Duty Industrial Construction: Built to withstand rigorous daily use in harsh outdoor car wash plaza environments.
- Prevents System Downtime: Quickly clears blockages on-site without needing to shut down entire vacuum banks or disassemble piping joints.
- Maximizes Airflow Efficiency: Restores proper CFM and suction pressure across all active vacuum drops to maintain a premium customer experience.
- Safe for Internal Piping: Effectively dislodges packed debris without scratching, denting, or puncturing interior vacuum duct walls.
- Brush Length: 4-1/2"
- Brush Diameter: 1-3/4"
- Handle Type: 1/4" Male NPS
- Total Length: 7-1/2"
- Handle Material: Stainless Steel
- Bristle Material: Wire
- Safety First: Lock out or turn off the central vacuum producer before inserting cleanout tools into main structural poles or manifold junctions.
- Inspect Access Ports: Utilize designated cleanout caps or lower drop couplings on the Tommy vacuum arch to insert the tool directly toward the blockage.
- Routine Cleaning Schedule: Perform a sweep of high-traffic vacuum poles weekly to prevent minor debris buildup from hardening into total line blockages.
