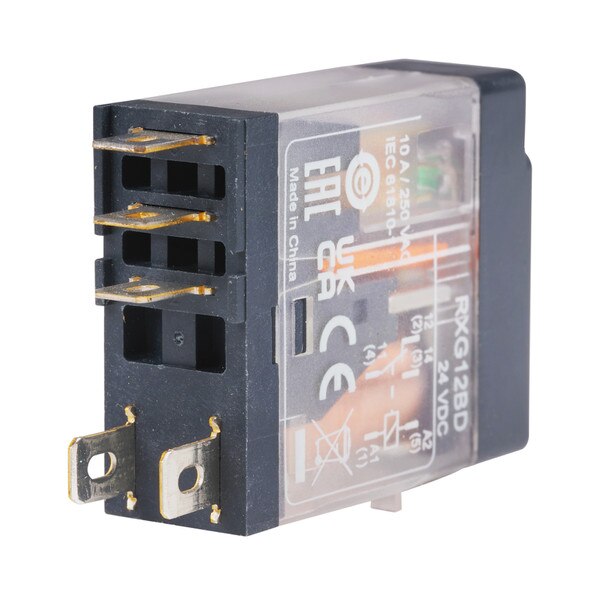

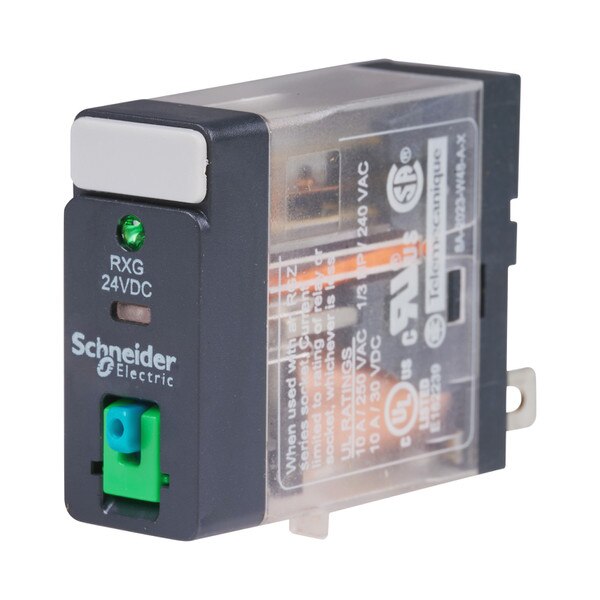

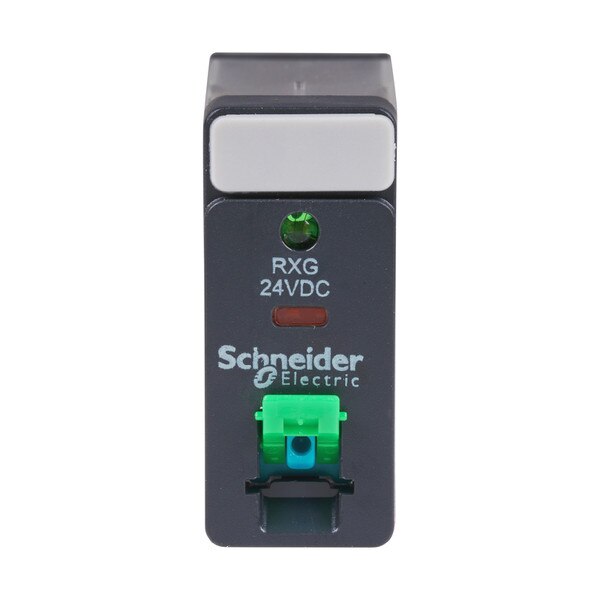

Zelio RXG12BD 10A Plug-In Interface Relay - 24VDC Control, SPDT Contacts
The RXG12BD is a versatile Zelio RXG series Plug-in Interface Relay designed for efficient control and signaling in various industrial applications. This compact relay operates with a 24 VDC coil voltage and handles up to 10 A contact current, making it ideal for interface applications. It features a single pole, double throw (SPDT or 1 C/O) contact configuration. Key features include an optional removable lock-down door, allowing for continuous engagement of contacts during testing or maintenance, which must be kept closed during normal operation. The relay also comes with a mechanical indicator and an LED status indicator (bipolar LED option) for clear visual feedback, along with a test button and a removable ID tag for easy identification. Its optimized design ensures flexibility, straightforward installation, and simple maintenance using quick-connect terminals.
The RXG12BD exhibits robust performance with a mechanical durability of 10 million cycles and an electrical durability of 100,000 cycles (resistive load). It boasts an excellent insulation resistance of 1000 MΩ at 500 VDC and an electrical insulation class of F. The relay offers high safety with a rated insulation voltage of 250V (IEC) and 300V (CSA/UL), and impressive dielectric strength including 5000 VAC between coil and contact. It operates reliably within a wide temperature range of -40°F to 158°F (-40°C to 70°C) and features IP40 protection for the housing. Its silver alloy contacts ensure reliable switching, handling a maximum switching capacity of 2500 VA.
This plug-in interface relay is particularly useful in control panels and automation systems where reliable interfacing between different voltage levels or control circuits is required. Its unique lock-down door feature makes it especially valuable in environments where frequent testing, maintenance, or manual override capabilities are needed without affecting the main control logic.
- Product Range: Zelio RXG Series
- Series Name: RXG series
- Product Type: Plug-in relay, Interface relay
- Contact Configuration: SPDT (1 C/O)
- Coil Voltage (Uc): 24 V DC
- Contact Current (Ithe): 10 A
- Contact Voltage (Max Switching): 250 V AC / 30 V DC
- Relay Mounting: Socket
- Relay Terminals: Quick Connect (Flat / Faston type pins)
- Contact Material: Silver Alloy (AgSnO2In2O3)
- Coil Resistance: 1.1 kOhm
- Minimum Switching Capacity: 500 mW at 100 mA, 5 V DC
- Maximum Switching Capacity: 2500 VA
- Operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Status Indicators: Mechanical Flag, Bipolar LED (option)
- Control Type: Lockable Test Button, Optional Removable Lock-Down Door
- IP Protection: IP40
- Rated Insulation Voltage (Ui): 250 V IEC, 300 V CSA, 300 V UL
- Drop-out Voltage Threshold: >= 0.1 Uc DC
- Contact Resistance: 100 mOhm
- Insulation Resistance: 1000 MΩ at 500 V DC
- Electrical Insulation Class: Class F
- Mechanical Durability: 10,000,000 cycles
- Electrical Durability: 100,000 cycles (resistive load)
- Operating Rate: <= 1800 cycles/hour (under load), <= 18000 cycles/hour (no-load)
- Operating Time: 20 ms
- Reset Time: 20 ms
- Dielectric Strength:
- 1000 V AC between contacts
- 5000 V AC between coil and contact (reinforced insulation)
- Overvoltage Category: III
- Pollution Degree: 2
- Net Weight: 0.04 lb (0.02 kg)
- Standards: IEC 61810-1, CSA C22.2 No 14, UL 508
- Product Certifications: CE, CSA, UL, EAC, DNV-GL
- Ambient Air Temperature for Storage: -40°F to 185°F (-40°C to 85°C)
- Relative Humidity: 10…85 %
- Vibration Resistance: 3 gn (in operation), 5 gn (not in operation)
- Versatile Interface: 10A SPDT contacts ideal for control circuit interfacing
- 24VDC Control: Compatible with common low-voltage DC control systems.
- Test & Maintenance Ready: Features an optional removable lock-down door for manual contact engagement.
- Clear Status Indicators: Equipped with both a mechanical flag and an optional LED for relay status.
- User-Friendly Design: Includes a test button, removable ID tag, and quick-connect terminals for easy installation and maintenance.
- High Durability: Built for millions of mechanical cycles and extensive electrical operations.
- Robust Electrical Protection: High insulation resistance and dielectric strength for safe and reliable operation.
- Certified Quality: CE, CSA, UL, EAC, and DNV-GL approvals ensure compliance with global standards.
