4 Wheel Plastic Shaft Conveyor Roller 1-1/2" Dogbone for X458 Chain

(0)No Reviews yet
$92.00
SKU: P-C2136

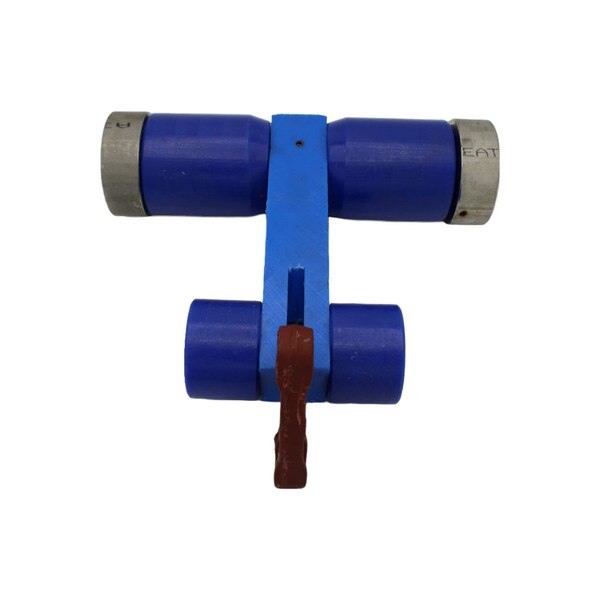

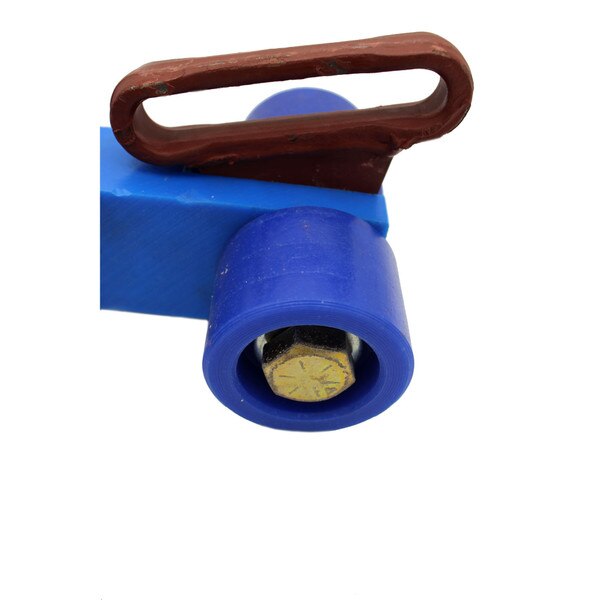

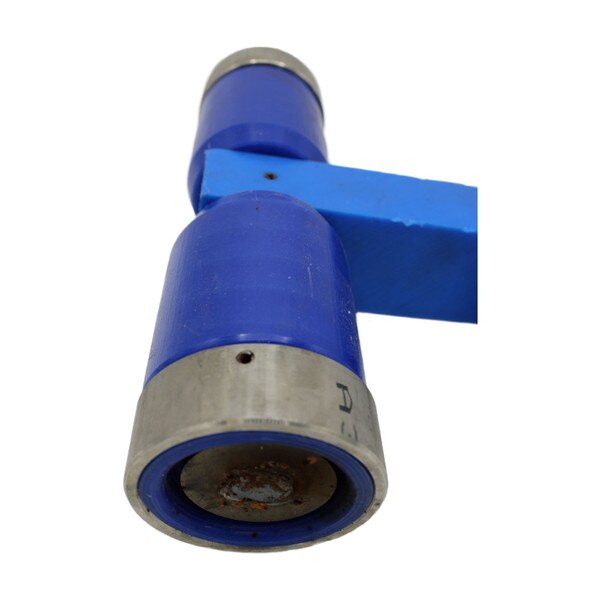

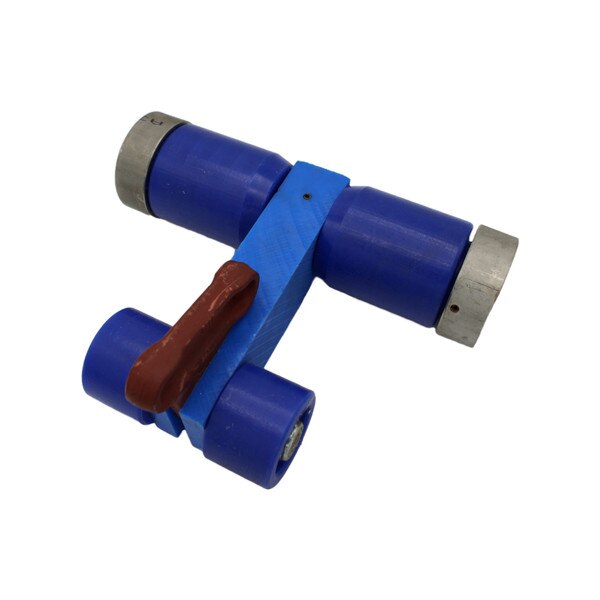

These shaft rollers are used on chain and roller belts at the wash site. The roller is designed to be used with X458 conveyor chain and has a 1-1/2" dogbone. The larger rollers are made of blue UHMW plastic and have a 2" ID and 2-3/4" OD with stainless steel inserts around the end. The smaller rollers are made of blue UHMW plastic and have a 1-1/2" ID and 2-1/4" OD. The insert that the chain goes through is 3-1/2" long and 5/8" wide.
  • Dogbone Size: 1-1/2"
  • Chain Type: X458 Chain
  • Larger Roller Wheel Diameter: 2" ID, 2-3/4" OD
  • Small Roller Wheel Diameter: 1-1/2" ID, 2-1/4" OD
  • Wheel Material: Blue UHMW Plastic
  • Roller Material: High Density Polymer Plastic
  • Dimensions: 9-1/2" X 10-1/4" X 2-7/8"
