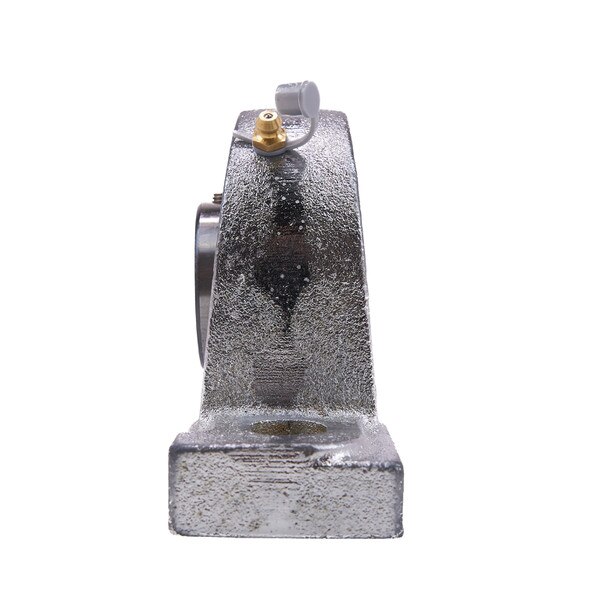

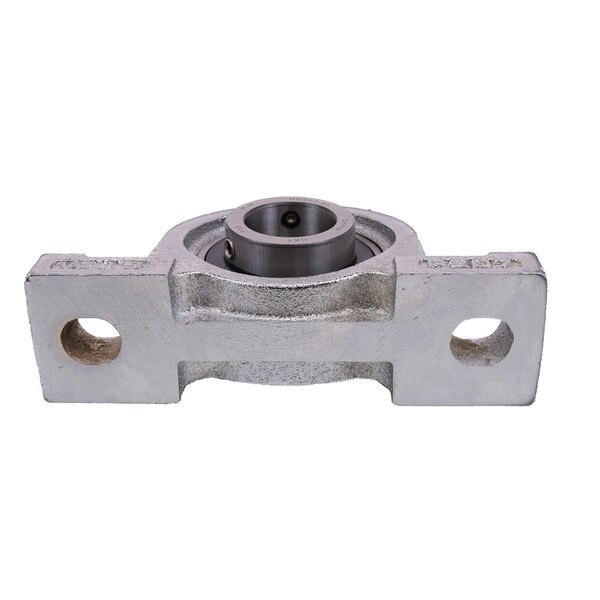

1-1/4" Cast Iron Pillow Block Bearing with Nickel Protection (UCP207-20NP)
The 1-1/4" Cast Iron Pillow Block Bearing is a reliable and essential component for supporting rotating shafts in your wash tunnel. It is widely used in applications such as the Rocker Brush and Tire Shine Applicator, where secure and long-lasting performance is critical.
The bearing housing is constructed from robust cast iron with an added nickel protection, providing superior resistance to rust and corrosion in the harsh, wet car wash environment. Its 1-1/4" inside diameter bore is designed for a precise fit. The bearing features a set screw locking insert for a secure shaft attachment and is relubricable to ensure an extended service life. With a two-bolt base, it is easy to mount and provides stable support. This standard-duty, fixed bearing operates efficiently within a wide temperature range of -40°F to 250°F.
- Product Type: Pillow Block Bearing
- MPN: UCP207-20NP
- Bore Size: 1-1/4" Inside Diameter
- Housing Material: Cast Iron with Nickel Protection
- Mounting Type: Two-Bolt Base
- Mounting Bolt Size: 1/2"
- Dimensions: 6-5/8" L x 2" W x 3-3/4" H
- Operating Temp. Range: -40°F to 250°F
- Locking Mechanism: Set Screw
- Bearing Type: Fixed (Non-Expansion), Relubricable
- Durable Construction: Cast iron housing with nickel protection for corrosion resistance.
- Secure Attachment: Set screw locking insert ensures a firm grip on the shaft.
- Extended Life: Relubricable design allows for easy maintenance and a longer service life.
- Versatile Application: Suitable for a variety of wash tunnel applications, including brushes and applicators.
- Wide Temperature Range: Performs reliably in both hot and cold conditions.
