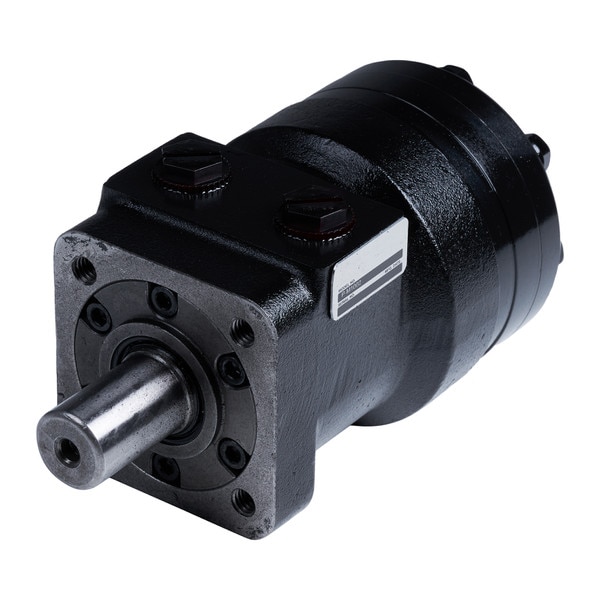

Tommy Car Wash Drive Motor (Hydraulic) - 5.0 cu.in./rev
The Tommy Car Wash Drive Motor (P-M1002) is a high-performance hydraulic motor engineered to serve as a reliable powerhouse for driving high-demand equipment across your wash tunnel, including Rockers, Tire Shine, Top Brushes, H.P. Oscillators, Contour Brushes, and Swirling Side Blasters.
This orbital motor boasts a robust construction that ensures continuous oil flow across the internal splines, significantly enhancing durability and extending the motor's lifespan. It is built with superior side load capacity and delivers smooth, ultra-low-speed operation for consistent, reliable performance in every wash cycle.
A key benefit of its innovative design is the elimination of the case drain, which simplifies plumbing and maintenance, minimizing downtime. With a continuous torque rating up to 1,193 lb-in and a maximum speed of 409 RPM, this motor offers unmatched efficiency and longevity for your car wash equipment.
- Product Type: Hydraulic Orbital Drive Motor
- Applications: Rocker Brush, Tire Shine, Top Brush, H.P. Oscillator, Contour Brushes, Swirling Side Blaster
- Displacement: 5.0 cu.in./rev
- Port Size: 1/2"-14 Female NPT
- Max Differential Pressure (Cont/Interm): 1,800 PSI / 2,400 PSI
- Max Supply Pressure: 2,750 PSI
- Max Oil Flow: 9 GPM
- Max Speed: 409 RPM
- Max Torque (Cont/Interm): 1,193 lb-in / 1,624 lb-in
- Max Performance: 10.5 HP
- Weight: 13.0 lbs
- Internal Features: DU and Sintered Copper/Steel Bushings, High Pressure Shaft Seal
- Maintenance Feature: Innovative design eliminates the need for a case drain.
- Versatile Power: Drives multiple high-demand applications (Rocker Brush, Tire Shine, Top Brush, etc.).
- Enhanced Durability: Continuous oil flow across internal splines and robust construction for extended life.
- Simplified Maintenance: Innovative design eliminates the requirement for a case drain line.
- High Performance: Delivers superior side load capacity and smooth, reliable operation, even at ultra-low speeds.
18 Month Warranty
*Please review our warranty policy here for additional details.
